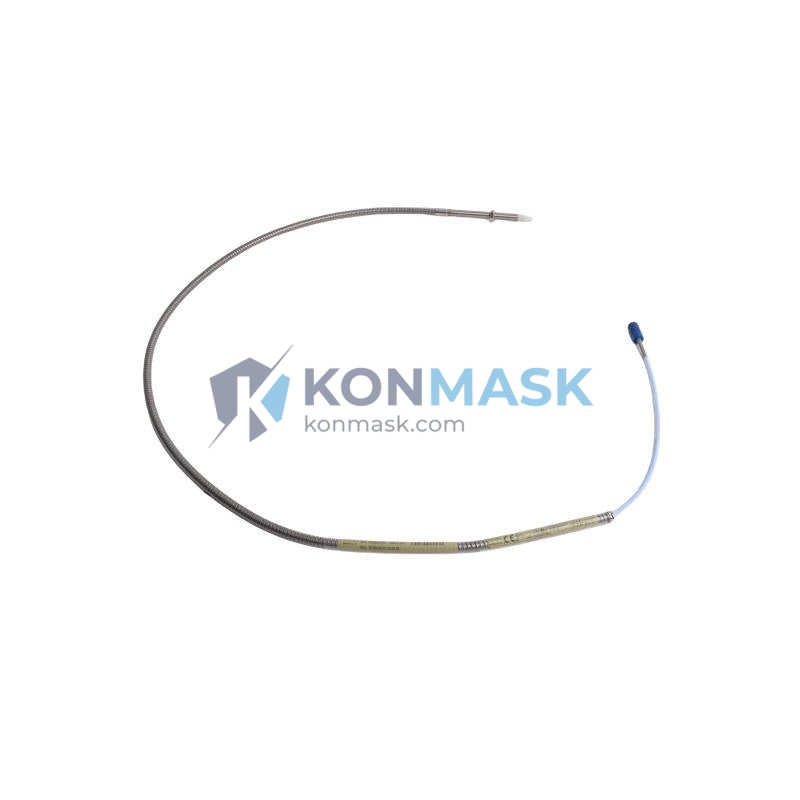

Bently Nevada 330904-00-13-05-01-00 Proximity Transducer System – 3300 XL NSv Series
Imagine a large rotating machine — a steam turbine, a compressor, or a critical pump — running at full load with no reliable shaft vibration data. Without a properly functioning proximity transducer system, the first sign of a developing fault could be a catastrophic failure: unplanned downtime, damaged equipment, and production losses that cost tens of thousands of dollars per hour. The Bently Nevada 330904-00-13-05-01-00 eliminates that risk by delivering continuous, high-accuracy eddy-current proximity measurements that feed your condition monitoring system with the data it needs to protect your most critical assets.
The 330904-00-13-05-01-00 is a fully configured proximity transducer system within Bently Nevada’s globally trusted 3300 XL NSv series — a platform engineered specifically for non-standard voltage (NSv) applications where conventional transducer systems cannot meet the signal conditioning requirements of modern protection monitors. With a 13 mm probe tip diameter and a 5-metre extension cable, this model occupies a precise niche in the 3300 XL product family, making it the preferred choice for OEM integrators and plant engineers who require exact form-factor compatibility with existing installations worldwide.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number / SKU: 330904-00-13-05-01-00
- Series: 3300 XL NSv Proximity Transducer System
- Probe Tip Diameter: 13 mm
- Extension Cable Length: 5 m (16.4 ft)
- Technology: Eddy-current (non-contact)
- Output Signal: NSv (Non-Standard Voltage) — compatible with 3300 XL monitors
- Measurement Type: Radial shaft vibration, axial position, differential expansion
- Target Material: AISI 4140 steel or equivalent (per Bently Nevada calibration standard)
- Operating Temperature: Probe: –35 °C to +177 °C; Driver: –35 °C to +85 °C
- Weight: Approx. 220 g (system)
- Approvals: CE, ATEX, IECEx (refer to official datasheet for current certifications)
Key Features & Benefits
- Non-contact measurement — zero mechanical wear, no lubrication required, suitable for continuous 24/7 operation
- NSv output compatibility — designed to interface directly with 3300 XL series monitors without additional signal conditioning hardware
- 13 mm probe form factor — drop-in replacement for existing 330904 series installations; no re-machining of probe bosses required
- 5 m extension cable — provides installation flexibility for machinery where the driver/monitor cabinet is located away from the measurement point
- High linearity and sensitivity — delivers consistent gap-voltage output across the full operating temperature range, minimising false alarms
- Rugged construction — stainless steel probe housing and armoured cable withstand harsh industrial environments including high humidity, oil mist, and vibration
- System-matched calibration — probe, extension cable, and driver are factory-matched as a system, ensuring traceability and measurement accuracy
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps, LNG expanders
- Power Generation: Steam turbines, hydro generators, gas turbine-generators
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, boiler feed pumps
- Pulp & Paper: High-speed refiners, paper machine rolls
- Marine & Offshore: Propulsion turbines, offshore platform compressors
- General Industry: Any rotating machinery requiring API 670-compliant vibration monitoring
System Integration & Compatible Parts
The 330904-00-13-05-01-00 is designed to operate as part of the Bently Nevada 3300 XL monitoring ecosystem. Compatible system components include:
- Monitors: Bently Nevada 3300/16 series, 3500/42 Proximitor I/O Module
- Drivers (Proximitors): 330180 series NSv drivers
- Junction Boxes: Bently Nevada 3300 XL field wiring accessories
- DCS/PLC Integration: 4–20 mA or voltage output via monitor I/O cards to DeltaV, Ovation, ABB 800xA, Siemens PCS 7
- Asset Management: System 1 Evolution software for trend analysis and alarm management
When replacing or upgrading, always verify the complete part number including cable length and driver suffix to ensure system-level calibration is maintained.
Our Quality Assurance Process
- Source verification: All units are sourced from authorised distributors or directly from OEM-certified supply chains
- Incoming inspection: Physical inspection of housing, connector pins, cable integrity, and label authenticity upon receipt
- Functional check: Where test equipment is available, gap-voltage linearity is verified against Bently Nevada published calibration curves
- Packaging: Anti-static packaging with desiccant; probe tip protected with foam insert to prevent damage in transit
- Documentation: Certificate of conformance and original manufacturer documentation provided upon request
How to Order
- Click “Request a Quote” or contact us directly at support@konmask.com
- Provide your required quantity, delivery location, and any urgency requirements
- Our technical team will confirm availability, lead time, and pricing within 24 hours
- Upon agreement, we issue a proforma invoice; shipment is arranged via DHL, FedEx, or freight forwarder per your preference
- Full export documentation (commercial invoice, packing list, COO) provided for customs clearance
Why Choose Konmask.com?
- Industrial specialisation: We focus exclusively on automation and instrumentation components — not a general marketplace
- Global sourcing network: Access to stock across multiple regions reduces lead times for hard-to-find part numbers
- Technical support: Our team includes engineers with hands-on experience in rotating machinery protection systems
- Transparent process: Clear quotation, no hidden fees, full export documentation as standard
- Responsive communication: Inquiries answered within 24 business hours; urgent requests prioritised
Frequently Asked Questions
- Q: Is the 330904-00-13-05-01-00 a complete system or individual components?
- A: It is a factory-matched system comprising the probe, extension cable, and driver, calibrated together. All three components must be used as a set to maintain measurement accuracy.
- Q: Can this transducer system be used with non-Bently Nevada monitors?
- A: The NSv output is optimised for Bently Nevada 3300 XL monitors. Use with third-party monitors requires verification of input impedance and voltage range compatibility. Contact us for technical guidance.
- Q: What is the difference between the 330904-00-13-05-01-00 and the 330904-00-07-05-01-00?
- A: The key difference is the probe tip diameter: 13 mm vs. 7 mm. The 13 mm probe is used where larger probe boss machining exists or where a larger sensing area is required for improved signal-to-noise ratio on large shaft diameters.
- Q: Do you provide a warranty?
- A: Yes. We offer a standard 90-day warranty against manufacturing defects. Extended warranty options are available — please enquire at the time of order.
- Q: How long does shipping take?
- A: Typical international express delivery is 3–7 business days via DHL or FedEx. Sea freight options are available for bulk orders. Lead time depends on stock availability confirmed at the time of quotation.
{
