Bently Nevada 330901-51-82-10-02-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

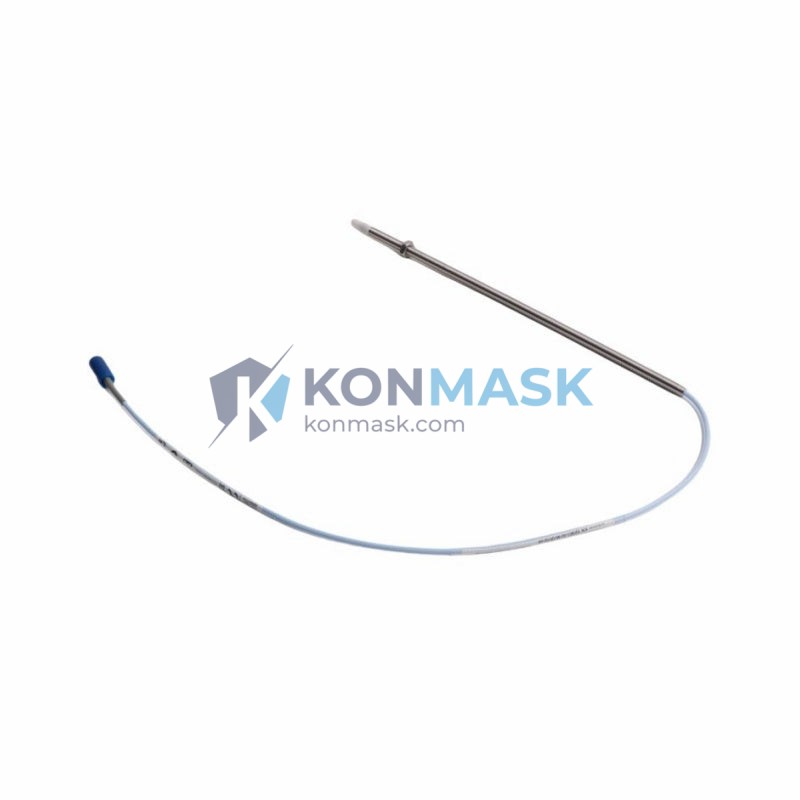

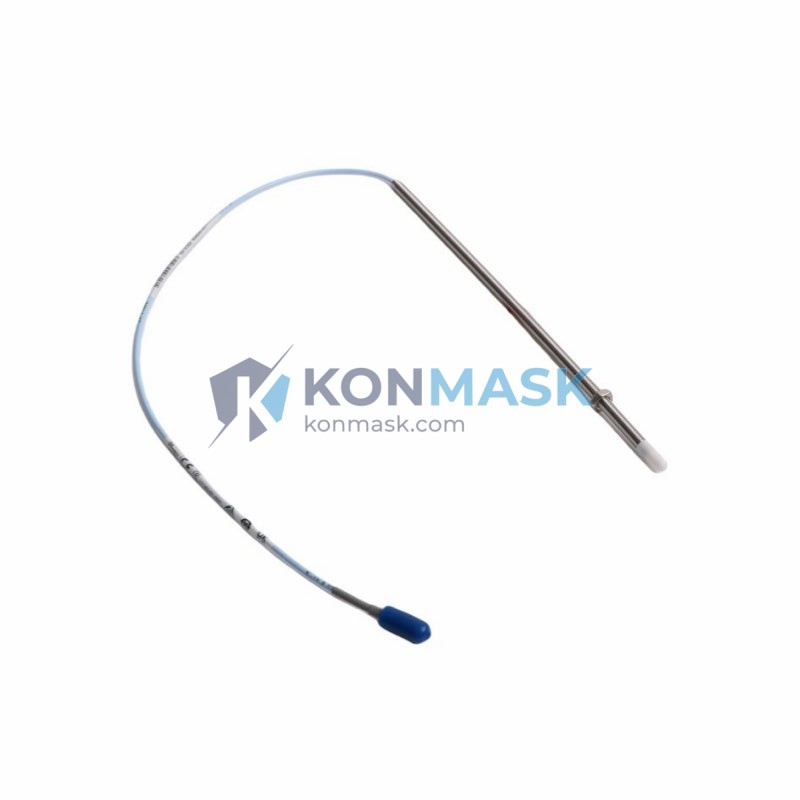

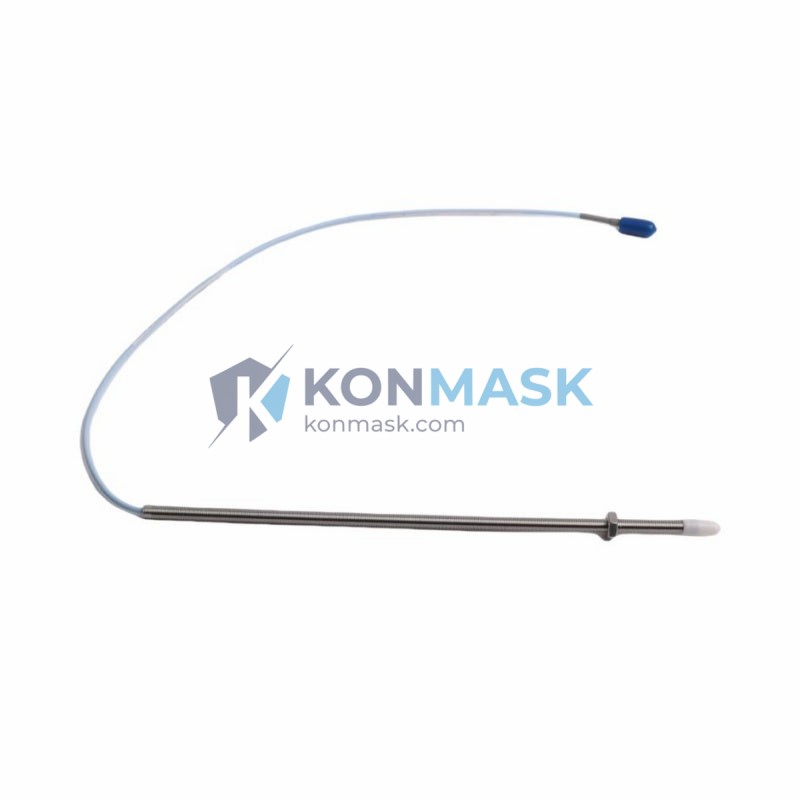

The Bently Nevada 330901-51-82-10-02-00 is a high-precision proximity transducer from the 3300 XL NSv (Non-contacting Vibration) Series, engineered for continuous shaft vibration, position, and eccentricity monitoring in critical rotating machinery. Konmask.com supplies genuine and compatible units with full traceability for industrial automation and condition monitoring applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330901-51-82-10-02-00 |
| Brand / Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3300 XL NSv Proximity Transducer System |
| Sensor Type | Eddy-current (non-contacting) proximity transducer |
| Cable Length | 5 m (extension cable) |
| Probe Thread | 8 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.26 mm (10 – 89 mil) |
| Frequency Response | DC – 10,000 Hz |
| Operating Temperature | -35 °C to +121 °C (probe); -35 °C to +66 °C (driver) |
| Supply Voltage | -24 VDC (nominal) |
| Output | -1 VDC to -17 VDC |
| Approvals | CE, ATEX, FM, CSA (intrinsically safe options) |
| Connector | Integral coaxial cable with BNC / MIL-C-5015 connector |
| Weight | Approx. 0.3 kg (probe + cable assembly) |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 330901-51-82-10-02-00. Always verify gap voltage, sensitivity, and cable length before substitution:
- Bently Nevada 330901-51-82-05-02-00 — Same probe, 5 m cable, alternate driver config
- Bently Nevada 330101-00-08-10-02-00 — 3300 5mm standard series equivalent
- Bently Nevada 330780-50-00 — 3300 XL 8mm standard proximity probe
- Epro PR6423/010-040 — Eddy-current equivalent, 8 mm, compatible with most Bently monitors
- Metrix ST5484E — Drop-in equivalent for non-critical applications
- Emerson 330901 Series — Post-acquisition Emerson-branded equivalents
⚠ Note: Replacement selection must match probe diameter, cable length, driver model, and target material. Contact Konmask.com for verified cross-reference support.
Why Choose the Original Model
- API 670 Compliant — Meets the industry standard for machinery protection systems
- Proven Reliability — Deployed in thousands of turbines, compressors, and pumps worldwide
- Full System Integration — Designed to work seamlessly with Bently Nevada 3300 XL monitors and Trendmaster Pro systems
- Traceable Calibration — Factory-calibrated with NIST-traceable documentation available
- Long Service Life — Robust construction rated for harsh industrial environments
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial position measurement
- Pump and motor eccentricity and runout detection
- Gearbox and expander condition monitoring
- Critical machinery protection in oil & gas, power generation, and petrochemical plants
System Compatibility
The 330901-51-82-10-02-00 is designed for use within the Bently Nevada 3300 XL Monitoring System and is compatible with:
- Bently Nevada 3300/16 and 3300/20 monitor modules
- Bently Nevada System 1 and System 1 Evolution software
- Trendmaster Pro distributed monitoring systems
- DCS integration via 4–20 mA or Modbus RTU output (with appropriate I/O module)
- Safety Instrumented Systems (SIS) with SIL-rated monitor cards
Selection Guide
Use the table below to identify the correct 3300 XL NSv part number for your application:
| Parameter | Options | Code Position |
|---|---|---|
| Probe Diameter | 5 mm / 8 mm | 330901 / 330780 |
| Extension Cable Length | 5 m / 9 m | -51 / -91 |
| Driver Type | Standard / Barrier | -82 / -00 |
| Armored Cable | Yes / No | -10 / -00 |
| Connector Type | Standard / MIL-Spec | -02 / -05 |
| Approval | Standard / ATEX / FM | -00 / -01 / -02 |
Not sure which model fits your system? Contact our selection engineers with your monitor model number and gap voltage requirements.
Quality Assurance & Sourcing
- Genuine OEM units sourced from authorized distribution channels
- Each unit inspected and tested prior to shipment
- Calibration certificates and material traceability documents available on request
- Secure anti-counterfeit packaging with holographic labels
- Export compliance: EAR99 / ECCN classification available for international orders
How to Order
- Confirm part number: 330901-51-82-10-02-00
- Specify quantity and required delivery timeline
- Request a formal quotation via support@konmask.com or call +0086 19859288691
- Receive proforma invoice and arrange payment (T/T, PayPal, or credit card)
- Shipment via DHL / FedEx with full tracking and export documentation
Replacement & Compatibility FAQ
Q: Can I use a 5 mm probe as a replacement for the 8 mm 330901 series?
A: No. Probe diameter affects the linear range and gap voltage. Always match the probe diameter to your existing driver and monitor configuration.
Q: Is the Epro PR6423 a direct drop-in replacement?
A: Functionally compatible in most cases, but requires re-gapping and sensitivity verification. Consult your machinery OEM before substitution.
Q: Does Konmask.com supply the complete transducer system (probe + cable + driver)?
A: Yes. We supply complete kits or individual components. Specify your requirements when requesting a quote.
Q: What is the lead time for 330901-51-82-10-02-00?
A: In-stock units ship within 3–5 business days. Special configurations may require 2–4 weeks. Contact us for real-time availability.
Q: Can this transducer be used in hazardous areas?
A: Yes, with the appropriate ATEX or FM-approved driver variant. Confirm the approval suffix in your part number before installation.
