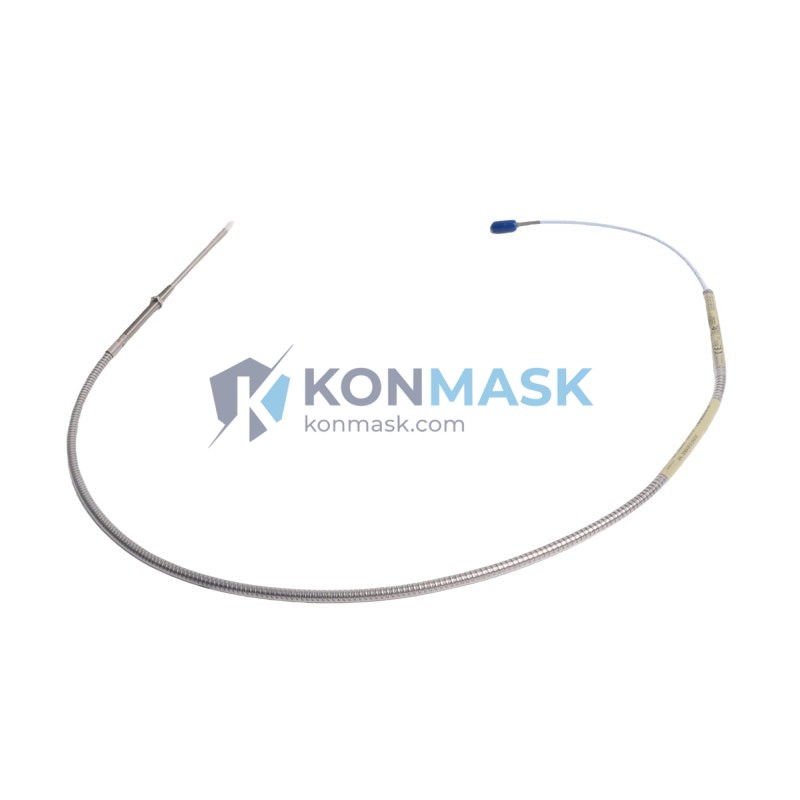

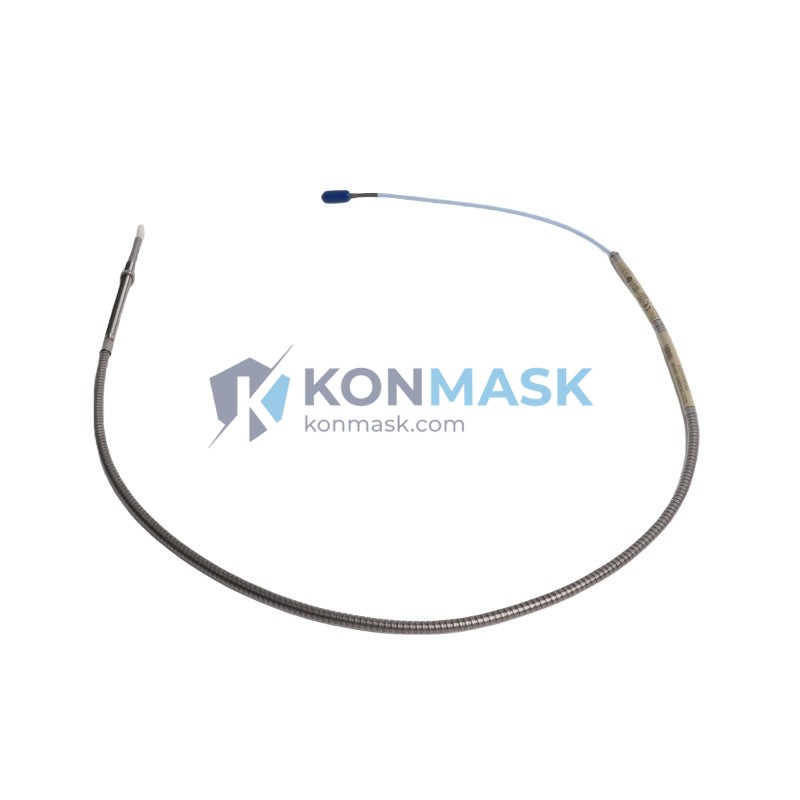

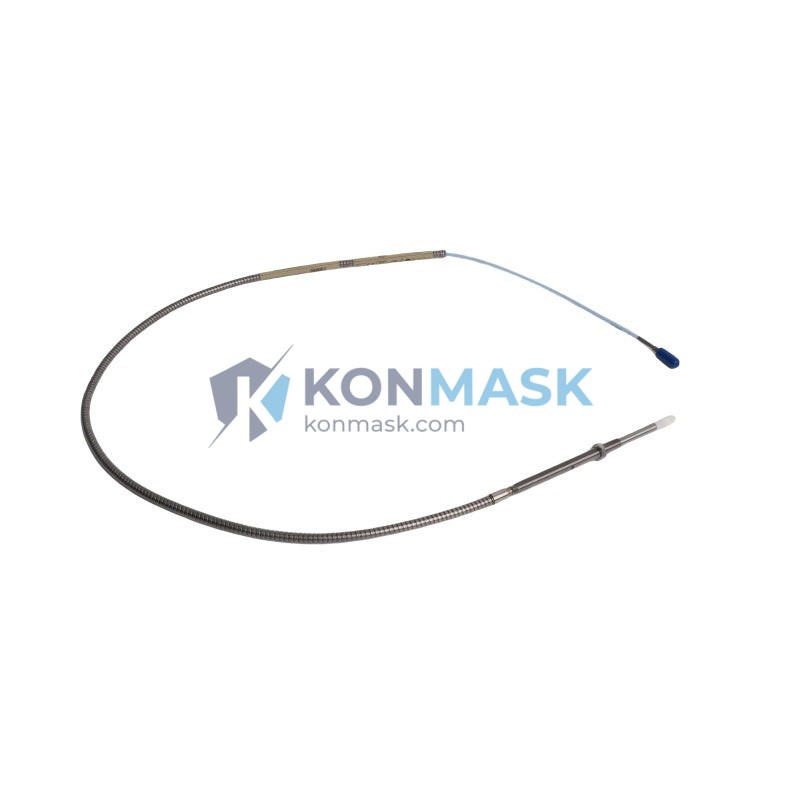

Bently Nevada 330904-00-11-05-02-00 – 11mm Eddy Current Proximity Probe | 3300 NSv Platform
In high-stakes rotating machinery environments, measurement accuracy is not optional — it is the foundation of plant safety and uptime. The Bently Nevada 330904-00-11-05-02-00 is an 11mm eddy current proximity probe engineered as part of the industry-standard 3300 NSv Series, designed to deliver continuous, non-contact shaft vibration and position measurements in the most demanding industrial conditions.
At Konmask.com, we source this probe through verified supply channels, providing procurement engineers with the confidence that every unit shipped meets OEM specifications — no grey-market risk, no counterfeit exposure.
Complete Technical Specifications
- Part Number: 330904-00-11-05-02-00
- Series / Platform: Bently Nevada 3300 NSv
- Probe Type: Eddy Current (Non-Contact) Proximity Probe
- Tip Diameter: 11 mm
- Cable Length: 5 m (standard configuration)
- Connector Type: 02 (per part number suffix)
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Linear Range: 0.25 mm – 2.54 mm (10 – 100 mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: -35°C to +177°C (-31°F to +351°F)
- Supply Voltage: -24 VDC (nominal)
- Output Impedance: ≤100 Ω
- Target Material: AISI 4140 steel (standard); other alloys with calibration
- Housing Material: Stainless steel, hermetically sealed
- Weight: Approx. 100 g
- Compliance: CE, RoHS; compatible with API 670 machinery protection standards
Proven Application Environments
- Steam & Gas Turbines — radial shaft vibration and axial position monitoring
- Centrifugal Compressors — rotor dynamic analysis and surge detection
- Pumps & Fans — bearing clearance and imbalance detection
- Gearboxes — gear mesh frequency and shaft orbit measurement
- Electric Motors (>500 kW) — continuous condition monitoring per API 670
- Petrochemical & Refinery Plants — SIL-rated safety instrumented systems
- Power Generation — baseload and peaking turbine protection systems
Engineering Advantages
- Non-Contact Measurement: Zero mechanical wear; suitable for continuous 24/7 operation without maintenance intervals
- High Frequency Response: DC to 10 kHz bandwidth captures both slow-roll runout and high-frequency vibration events
- Hermetic Sealing: IP67-rated housing withstands oil mist, steam, and aggressive process atmospheres
- Direct 3300 System Compatibility: Plug-and-play integration with Bently Nevada 3300 XL monitors, drivers, and junction boxes — no recalibration required
- Wide Temperature Range: Qualified for both cryogenic and high-temperature process environments
- Long-Term Stability: Drift <1% over 5-year service life under rated conditions
System Architecture & Signal Flow
The 330904-00-11-05-02-00 operates as the sensing element in a three-component eddy current measurement chain:
- Probe (330904-00-11-05-02-00) → generates high-frequency electromagnetic field at tip
- Extension Cable (3300 XL series) → transmits RF signal with matched impedance
- Proximitor® Driver (3300 XL 8mm/11mm) → demodulates signal, outputs –24 VDC proportional voltage
- Monitor (3500/3300 series) → processes voltage, applies alarm/trip logic per API 670
This architecture ensures the probe’s 7.87 V/mm sensitivity is preserved end-to-end, with system accuracy typically within ±1% of full-scale range.
Sourcing & Quality Verification
Every Bently Nevada probe shipped from Konmask.com undergoes a documented 4-step verification process:
- Step 1 — Supply Chain Audit: Units sourced exclusively from authorized distributors or verified OEM-surplus channels with traceable documentation
- Step 2 — Physical Inspection: Part number label, housing finish, connector type, and cable markings verified against OEM specifications
- Step 3 — Functional Bench Test: Sensitivity and linear range verified using calibrated target and reference driver before shipment
- Step 4 — Documentation Package: Each order ships with inspection report, part traceability record, and packing declaration
Procurement Process
- Step 1: Submit RFQ via konmask.com/pages/contact or email support@konmask.com
- Step 2: Receive formal quotation with lead time, unit price, and shipping options within 24 business hours
- Step 3: Confirm PO — we accept T/T wire transfer, PayPal, and major credit cards
- Step 4: Shipment dispatched with tracking number and documentation package; DHL / FedEx express available
- Step 5: Post-delivery technical support available via email and WhatsApp (+0086 19859288691)
Technical FAQ
Q: Is the 330904-00-11-05-02-00 interchangeable with the 330904-00-16-05-02-00?
A: No. The -11- designation indicates an 11mm tip diameter; the -16- variant is a 16mm probe. They use different Proximitor® drivers and are not interchangeable without recalibration of the entire measurement chain.
Q: Can this probe be used with non-Bently Nevada monitors?
A: The probe outputs a standard –24 VDC eddy current signal. It can interface with third-party monitors that accept this signal format, but sensitivity calibration must be verified independently.
Q: What is the shelf life of an unused probe?
A: Bently Nevada specifies a 10-year shelf life for properly stored probes (dry, room temperature, original packaging). We ship only units within active shelf life.
Q: Do you provide calibration certificates?
A: Factory calibration data is available for new units. For recertification, we recommend Bently Nevada’s authorized service centers. Contact us for details.
Q: What is your minimum order quantity?
A: MOQ is 1 unit. Volume pricing is available for orders of 5+ units.
