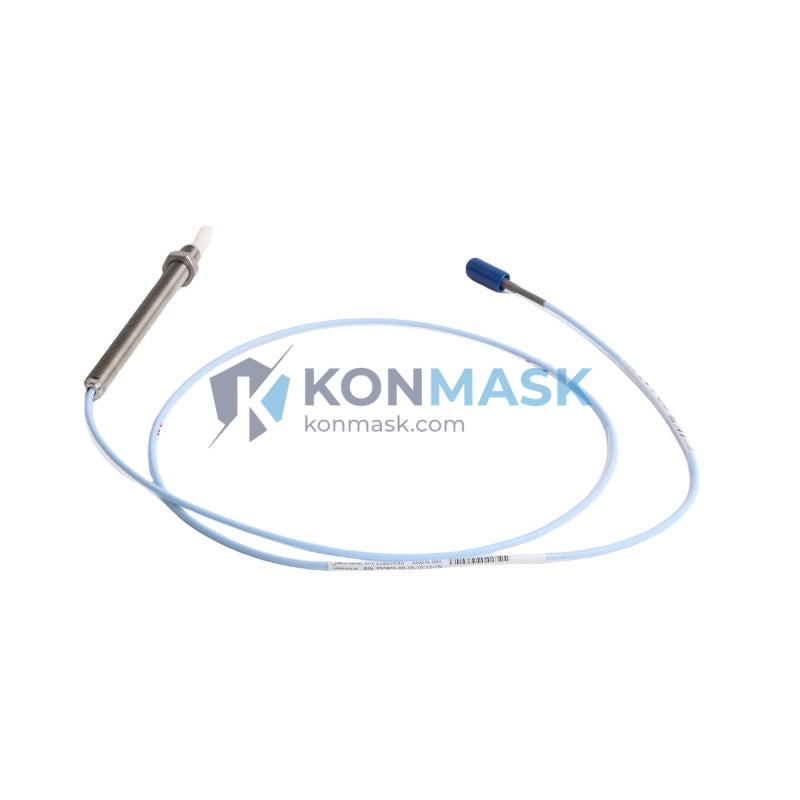

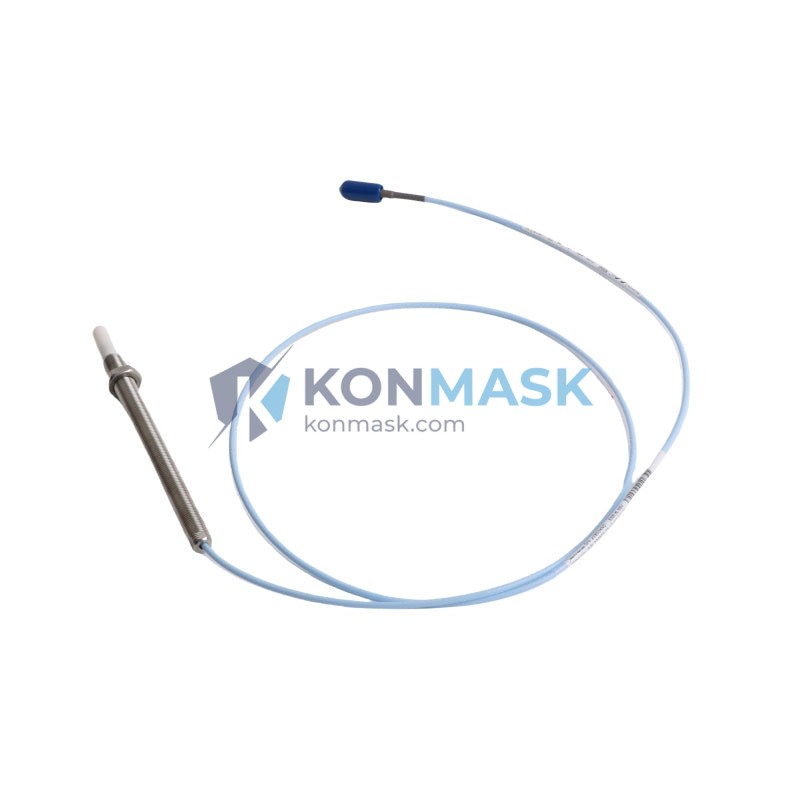

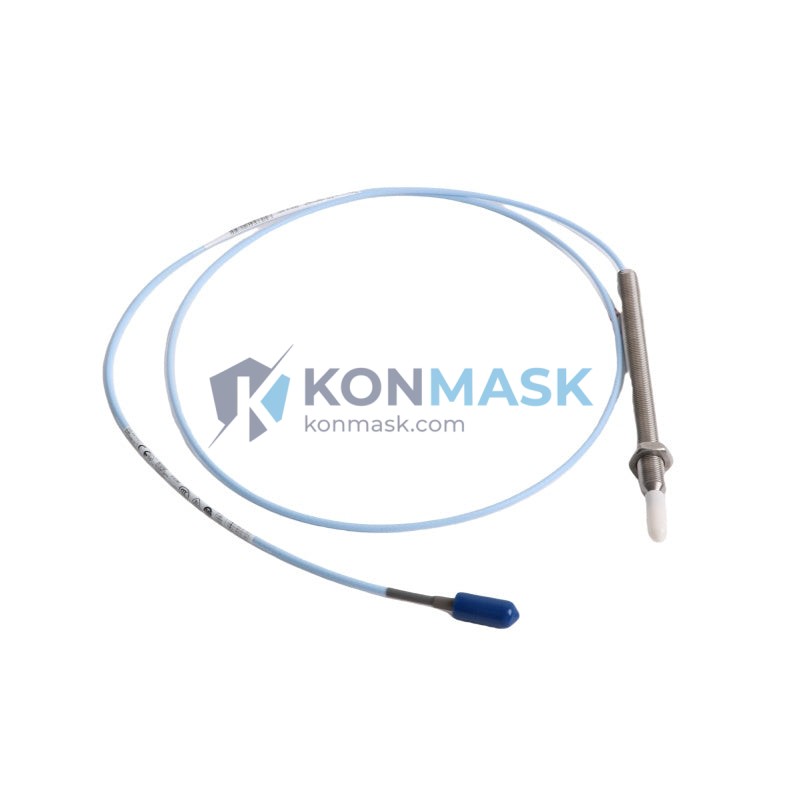

Turbomachinery Vibration Monitoring Solution – Bently Nevada 330905-00-18-10-02-05 | 3300 NSv Series
Where This Product Is Used
The Bently Nevada 330905-00-18-10-02-05 proximity probe is engineered for continuous, non-contact shaft vibration and position measurement in rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – Radial vibration monitoring on HP/LP rotor shafts in power generation plants
- Centrifugal Compressors – Shaft displacement measurement in petrochemical and refinery trains
- Pumps & Blowers – Bearing journal monitoring in water treatment and HVAC systems
- Gearboxes – Gear mesh and shaft orbit analysis in heavy industrial drives
- Marine Propulsion Systems – Shaft alignment and axial position monitoring
- Paper & Steel Mills – Roll and spindle vibration in continuous process lines
Wherever API 670 compliance is mandated and machine protection is critical, this probe is the field-proven choice.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330905-00-18-10-02-05 |
| Series | Bently Nevada 3300 NSv |
| Probe Type | Eddy-Current Proximity Probe |
| Cable Length | 18 inches (457 mm) |
| Tip Diameter | 5 mm |
| Thread Size | M10 × 1.0 |
| Connector | 2-pin MIL-C-5015 style |
| Operating Temperature | -35°C to +177°C |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 10–90 mil (0.25–2.29 mm) |
| Target Material | AISI 4140 steel (standard) |
| Weight | 80 g (approx.) |
| Standard Compliance | API 670, ISO 10816 |
Why Engineers Specify This Model
- NSv (Non-Standard voltage) Architecture – Operates with the 3300 XL 8mm driver/extension cable system, enabling direct drop-in replacement without rewiring existing 3300 series installations
- 18-inch Integral Cable – Eliminates field-spliced connections at the probe tip, reducing signal noise and failure points in high-vibration zones
- 5 mm Tip for Tight Clearances – Ideal for retrofitting into bearing housings with limited radial space, common in legacy turbine frames
- High-Temperature Stability – Maintains calibration accuracy up to 177°C, suitable for hot-section turbine bearing pedestals
- API 670 Listed – Accepted by machinery protection system auditors without additional calibration documentation
Complete System Bill of Materials
For a fully functional 3300 NSv proximity measurement loop, the following components are required:
- Probe: 330905-00-18-10-02-05 (this item)
- Extension Cable: 330130-080-00-00 (8-meter) or equivalent 3300 NSv extension
- Driver / Proximitor: 330180-X1-05 (3300 NSv 8mm Proximitor Sensor)
- Mounting Hardware: Armored probe holder, lock nut, and jam nut (machine-specific)
- Signal Conditioner / Monitor: 3500/42M or 3500/40M Proximitor Monitor card
Contact support@konmask.com to source the complete loop as a kit.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816-3 – Mechanical vibration evaluation for industrial machines
- IEC 60068-2 – Environmental testing (temperature, vibration, humidity)
- CE Marking – Compliant for EU industrial machinery directive
- RoHS – Restriction of Hazardous Substances compliant
Quality Assurance & Sourcing
Every Bently Nevada 330905-00-18-10-02-05 unit shipped from Konmask.com undergoes the following verification process:
- Visual inspection against OEM dimensional drawings
- Connector pin-out continuity check
- Serialization and traceability documentation provided on request
- Sourced from authorized distributors and verified surplus channels with full chain-of-custody records
- 30-day functional warranty on all units
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly on this page for immediate checkout
- Email RFQ: support@konmask.com – include quantity, required delivery date, and ship-to country
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Bulk Orders: Volume pricing available for 5+ units; lead time typically 3–7 business days
Application-Specific FAQ
Q: Is the 330905-00-18-10-02-05 compatible with the older 3300 XL 8mm system?
A: Yes. The 3300 NSv probe is backward-compatible with 3300 XL 8mm extension cables and Proximitor sensors when used with the correct driver pairing.
Q: Can this probe measure axial position as well as radial vibration?
A: Yes, with appropriate mounting orientation and a thrust position monitor card (e.g., 3500/42M), this probe can be configured for axial thrust measurement.
Q: What is the maximum gap voltage for initial setup?
A: The recommended gap voltage is -10 VDC ± 0.5 V, corresponding to approximately 50 mil (1.27 mm) gap from the target surface.
Q: Do you provide calibration certificates?
A: Calibration certificates from the original manufacturer are available upon request for units sourced through our authorized channels. Contact us before ordering to confirm availability.
Q: Can I use this probe on non-ferrous targets like aluminum or titanium?
A: Non-standard target materials require a target material correction factor. Bently Nevada provides correction curves; contact our technical team for guidance.
