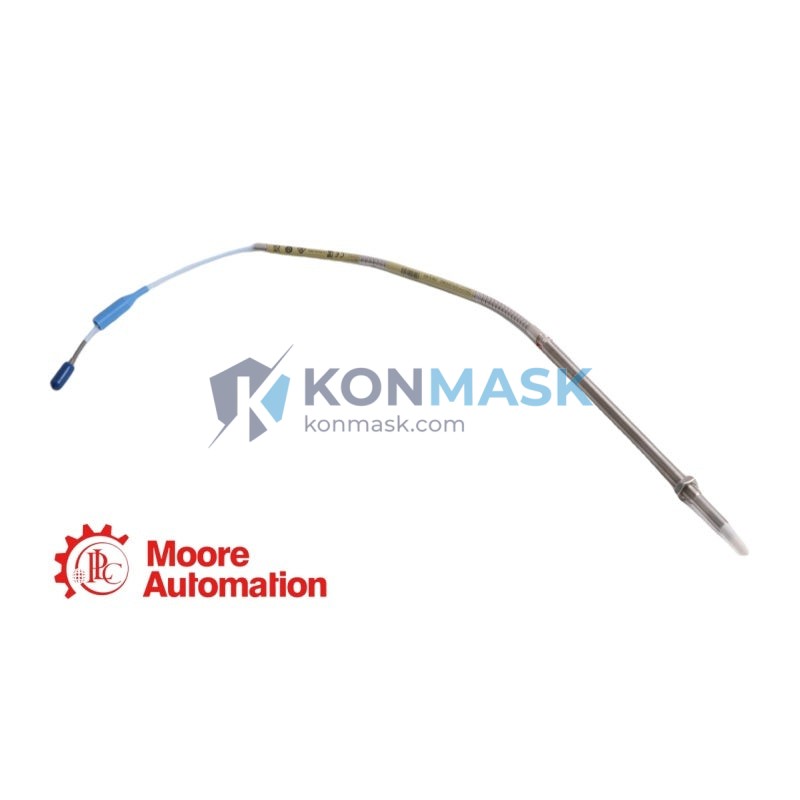

Bently Nevada 330910-03-16-10-02-00 – Proximity Transducer System | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Proximity Transducer System is the industry benchmark for non-contact, eddy-current-based shaft vibration and position measurement in critical rotating machinery. Engineered under Baker Hughes’ Bently Nevada product line, this system has accumulated decades of field-proven reliability across power generation, petrochemical, and heavy industrial installations worldwide.
Product Positioning
The 330910-03-16-10-02-00 is a complete proximity transducer system configured for 3300 XL Series monitors. It is designed for procurement engineers and reliability teams who require OEM-specification components with traceable quality documentation. Konmask.com supplies this part with full inspection and verification support for MRO and capital project procurement.
Complete Technical Specifications
- Part Number: 330910-03-16-10-02-00
- Manufacturer: Bently Nevada (Baker Hughes)
- Series / Platform: 3300 XL Proximity Transducer System
- Measurement Principle: Eddy Current (Non-contact)
- Probe Cable Length: 3 m (10 ft)
- Extension Cable Length: 5 m (16 ft)
- Probe Tip Diameter: 8 mm standard
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Supply Voltage: –24 VDC (nominal)
- Output Signal: –2 VDC to –18 VDC (proportional to gap)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Operating Temperature: –35°C to +121°C (probe); –35°C to +66°C (driver)
- Ingress Protection: IP67 (probe assembly)
- Weight: Approx. 140 g (complete system)
- Compliance: API 670 5th Edition compatible
Proven Application Environments
- Steam and gas turbines (radial vibration, axial position, differential expansion)
- Centrifugal compressors and pumps in oil & gas upstream/downstream
- Boiler feed pumps and large motor-driven equipment in power plants
- Gearboxes and expanders in petrochemical and refining facilities
- Rotating equipment monitored under API 670 machinery protection standards
- Retrofit and MRO replacement for existing Bently Nevada 3300 XL monitor racks
Engineering Advantages
- Non-contact measurement: Zero mechanical wear, suitable for continuous 24/7 monitoring
- High frequency response: DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency vibration events
- API 670 compliance: Meets machinery protection instrumentation standards for critical and essential machinery
- System-matched components: Probe, extension cable, and driver are factory-calibrated as a matched set
- Wide temperature range: Suitable for hot-section installations near bearing housings and turbine casings
- Plug-and-play replacement: Direct drop-in for existing 3300 XL installations without recalibration of the monitor
System Architecture & Signal Flow
The 330910-03-16-10-02-00 operates as a three-component eddy current system:
- Probe (Sensor): Generates a high-frequency electromagnetic field; gap change between probe tip and rotating shaft induces eddy currents that alter the field impedance.
- Extension Cable: Transmits the RF signal from probe to driver with controlled impedance; length must match the calibrated system (16 ft / 5 m for this configuration).
- Driver (Oscillator-Demodulator): Converts the impedance variation into a DC voltage output proportional to the physical gap. Output feeds directly into Bently Nevada 3300 XL monitor input channels.
Signal output range: –2 VDC (near gap) to –18 VDC (far gap). Monitor alarm and danger setpoints are configured within the 3300 XL rack based on this voltage range.
Sourcing & Quality Verification
- All units sourced through authorized industrial distribution channels or OEM-certified inventory
- Each system inspected for physical integrity, connector condition, and cable continuity prior to shipment
- Calibration certificates and material traceability documentation available upon request
- Konmask.com maintains a quality hold process — units failing inspection are quarantined and not listed for sale
Procurement Process
- Step 1: Confirm part number 330910-03-16-10-02-00 matches your existing installation (probe cable length, extension cable length, connector type)
- Step 2: Submit inquiry or place order via Konmask.com product page
- Step 3: Receive order confirmation with lead time and shipping details within 1 business day
- Step 4: Inspection report and shipping documents dispatched with order
- Step 5: Installation support available via email at support@konmask.com
For urgent MRO requirements or bulk project procurement, contact us directly at +0086 19859288691 for priority handling.
Technical FAQ
- Q: Can I mix this probe with a different brand extension cable or driver?
- A: No. The 3300 XL system is factory-calibrated as a matched set. Mixing components will invalidate calibration and produce inaccurate measurements. Always replace as a complete system.
- Q: What is the target material requirement?
- A: The probe is calibrated for AISI 4140 steel. If your shaft material differs, a material correction factor must be applied. Contact our engineering team for guidance.
- Q: Is this part compatible with the Bently Nevada 3500 Series monitors?
- A: The 330910 series is designed for 3300 XL monitors. The 3500 Series uses different driver modules (e.g., 330180). Verify monitor compatibility before ordering.
- Q: What documentation is available with this part?
- A: We can provide the Bently Nevada installation manual reference, inspection checklist, and upon request, calibration records. Contact support@konmask.com with your order number.
- Q: What is the lead time for this part?
- A: In-stock units ship within 2–3 business days. Out-of-stock lead time is typically 2–4 weeks. Contact us for real-time availability.
