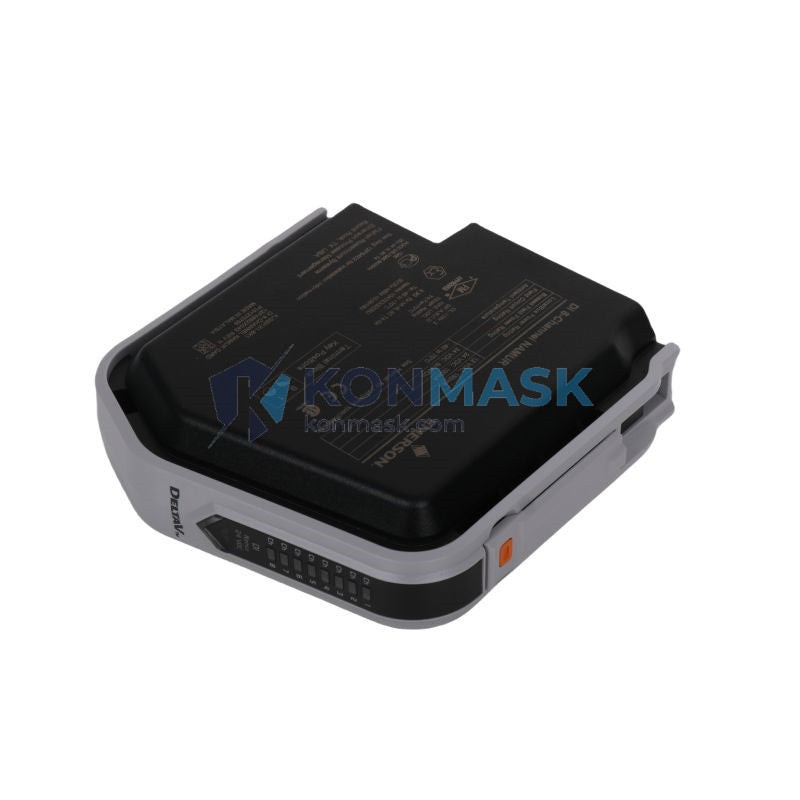

EMERSON KJ3203X1-BK1 – 8-Channel Isolated Digital Input Module | DeltaV Series
Engineering Background: The KJ3203X1-BK1 is a field-proven digital input module designed for Emerson’s DeltaV Distributed Control System (DCS) platform. With cross-reference part numbers 12P4694X032 and SE4001S2T2B4, this module serves as a critical I/O interface between field instrumentation and the DeltaV controller subsystem in process-critical environments.
Product Positioning: Engineered for procurement engineers and control system integrators who require a reliable, drop-in replacement or expansion module for existing DeltaV architectures. Konmask.com supplies this module from verified surplus and OEM channels, ensuring full functional integrity for brownfield upgrades, MRO replenishment, and greenfield DCS builds.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Emerson Process Management
- Part Number (Primary): KJ3203X1-BK1
- Cross-Reference P/N: 12P4694X032 | SE4001S2T2B4
- Platform: DeltaV DCS Series
- Module Type: Digital Input (DI)
- Channel Count: 8 Channels (isolated)
- Input Signal Type: Discrete / Digital (dry contact or wet contact)
- Isolation: Channel-to-channel and channel-to-bus optical isolation
- Input Voltage Range: 24 VDC nominal (field-side)
- Communication Bus: DeltaV I/O Bus (proprietary backplane)
- Mounting: DeltaV I/O carrier / marshalling cabinet
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 80 g
- Certifications: CE, UL, FM (Class I Div 2 capable)
- Form Factor: DeltaV standard I/O module card
- Firmware: Compatible with DeltaV v7.x through v14.x and later
Proven Application Environments
- Oil & Gas upstream/downstream process control (wellhead, separator, pipeline)
- Petrochemical and refinery DCS expansion and MRO replacement
- Power generation plant automation (boiler, turbine, BOP systems)
- Pharmaceutical batch process control (FDA 21 CFR Part 11 compliant architectures)
- Pulp & paper and mining continuous process control
- Water treatment and municipal utility SCADA/DCS hybrid systems
- Chemical plant safety instrumented system (SIS) auxiliary I/O
Engineering Advantages
- Hot-swap capable: Supports online module replacement without process shutdown on DeltaV redundant I/O configurations
- Full optical isolation: Eliminates ground loop interference in noisy industrial field environments
- Plug-and-play DeltaV integration: Auto-recognized by DeltaV Explorer; no manual address configuration required
- Wide firmware compatibility: Backward-compatible across multiple DeltaV software generations
- Compact form factor: Maximizes I/O density in marshalling cabinets
- Diagnostic transparency: Per-channel status LEDs and DeltaV AMS Device Manager integration for predictive maintenance
System Architecture & Signal Flow
The KJ3203X1-BK1 mounts directly onto a DeltaV I/O carrier card, which connects to the DeltaV controller via the proprietary I/O bus backplane. Field wiring terminates at the carrier’s screw terminals. Each of the 8 digital input channels is optically isolated before the signal is digitized and transmitted over the backplane to the DeltaV controller for logic processing. The module supports both normally-open (NO) and normally-closed (NC) field contact configurations, making it universally compatible with limit switches, proximity sensors, relay contacts, and pushbutton inputs.
Signal path: Field Device → Carrier Terminal Block → KJ3203X1-BK1 Optical Isolator → DeltaV I/O Bus → DeltaV Controller → DeltaV Workstation / Historian
Sourcing & Quality Verification
- Source: Verified OEM surplus and authorized distribution channels
- Inspection: Each unit undergoes visual inspection, label verification (P/N, revision, date code), and functional power-on check prior to shipment
- Packaging: Anti-static ESD bag + foam-lined carton; original Emerson packaging preserved where available
- Warranty: 90-day Konmask operational warranty; DOA replacement guaranteed
- Traceability: Full lot traceability documentation available upon request for regulated industries
- Counterfeit Prevention: All units verified against Emerson OEM label specifications; holographic seals and revision codes cross-checked
Procurement Process
- Submit RFQ: Contact [email protected] with your required quantity, delivery timeline, and project details
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or NET terms (qualified accounts)
- Quality Hold: Pre-shipment inspection report and photos provided upon request
- Shipping: DHL / FedEx / UPS express international; EXW Shenzhen or CIF destination available
- After-Sales: Technical support available via email and WhatsApp: +0086 19859288691
Technical FAQ
Q: Is KJ3203X1-BK1 compatible with DeltaV v13 and v14?
A: Yes. The module is backward and forward compatible across DeltaV v7.x through v14.x. No firmware flashing is required; the DeltaV system auto-detects the module upon insertion.
Q: Can this module be used in SIL-rated safety loops?
A: The KJ3203X1-BK1 is a standard DI module and is not SIL-certified for use as a primary SIS I/O device. For SIL-2 applications, Emerson’s SIS-specific modules (e.g., KJ3221X1-BA1) are recommended. This module may be used for auxiliary monitoring in SIS architectures.
Q: What is the difference between KJ3203X1-BK1, 12P4694X032, and SE4001S2T2B4?
A: These are the same physical module identified by different part number conventions: KJ3203X1-BK1 is the Emerson catalog number, 12P4694X032 is the internal manufacturing/revision code, and SE4001S2T2B4 is the serialized assembly reference. All three refer to the identical hardware.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and inspection report are available upon request for regulated procurement environments (pharmaceutical, nuclear auxiliary, etc.).
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume pricing is available for orders of 5+ units. Contact us for a tiered pricing schedule.
