EMERSON KJ4006X1-BC1 Fused 8-Channel Terminal Block | Replacement, Equivalent & Selection Guide

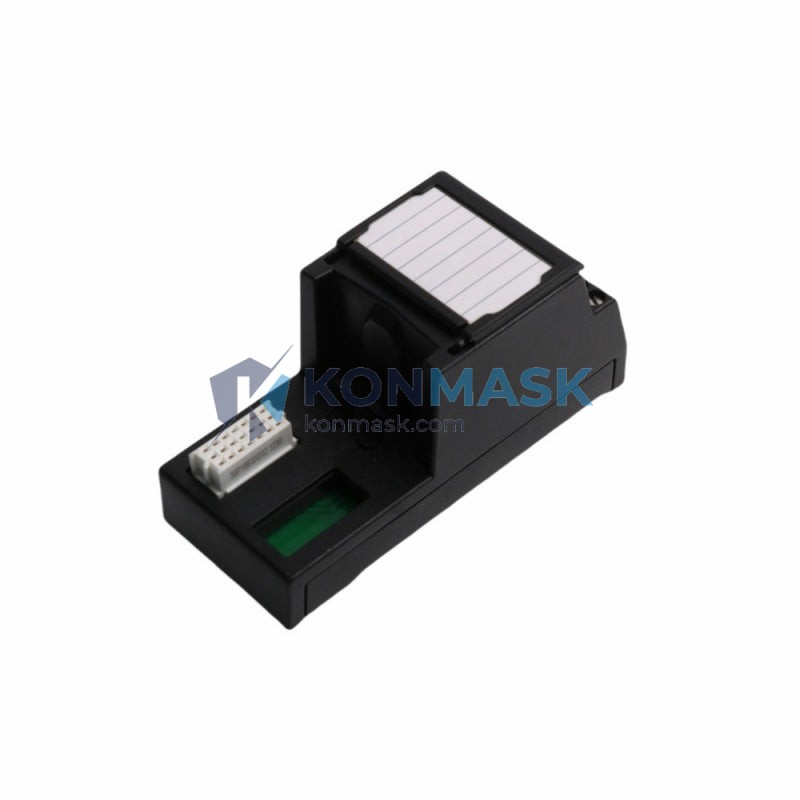

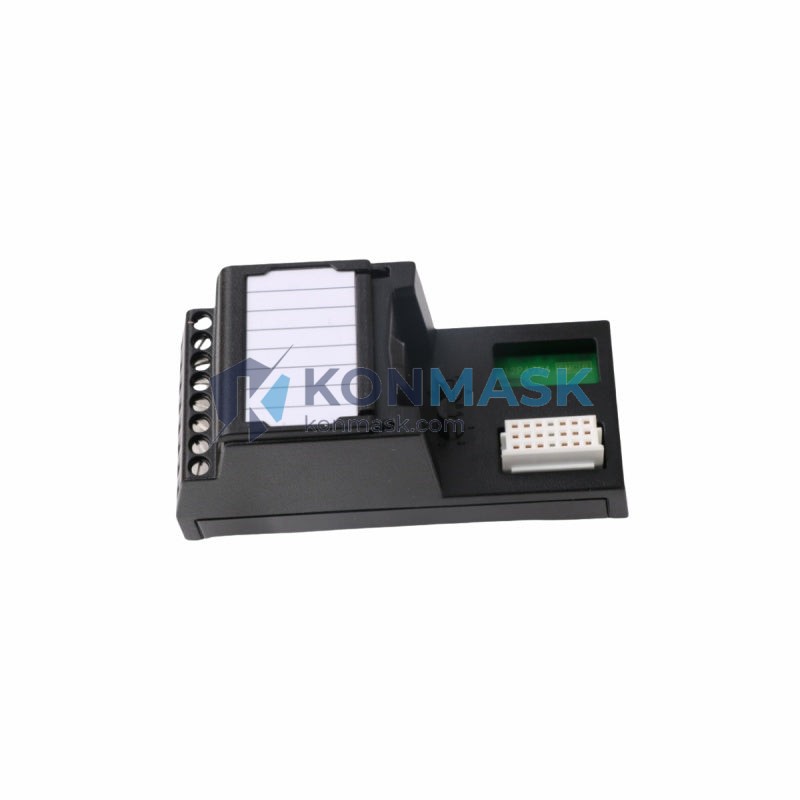

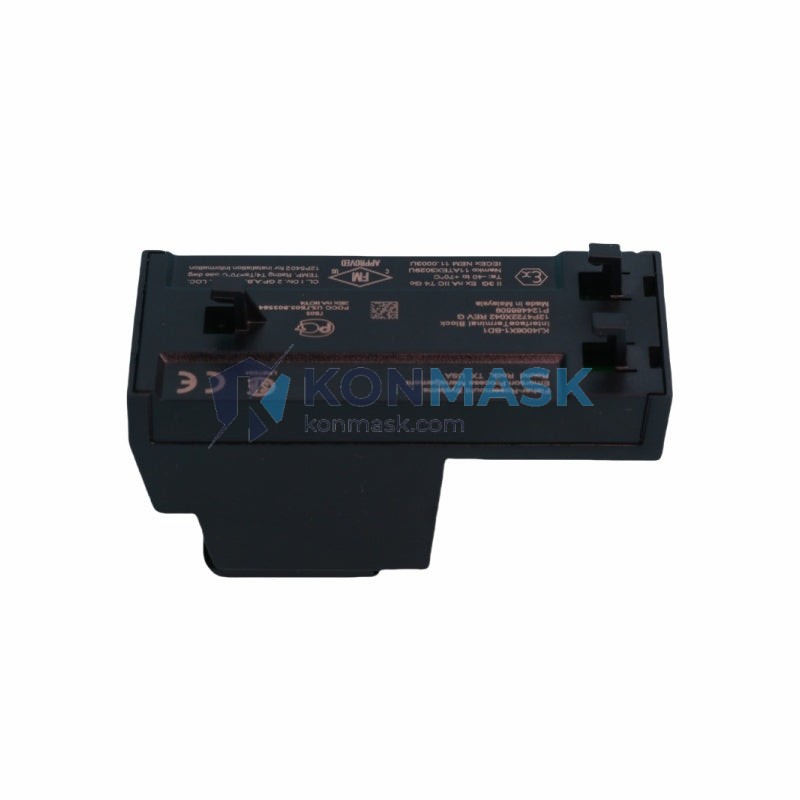

The EMERSON KJ4006X1-BC1 (Part No. 12P4720X062) is a Fused 8-Channel Terminal Block designed for use with Emerson DeltaV distributed control systems. It provides protected field wiring termination for analog and discrete I/O modules, with individual channel fusing to safeguard both the controller and field devices. This page covers technical specifications, compatible replacements, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: Emerson Electric / Emerson Process Management
- Part Number: KJ4006X1-BC1
- Reference Part: 12P4720X062
- Description: Fused 8-Channel Terminal Block
- Series: DeltaV I/O Terminal Block Series
- Channels: 8 (individually fused)
- Fuse Protection: Per-channel fusing for field wiring protection
- Mounting: DIN rail / direct module mount compatible
- Weight: Approx. 2,500 g (packaged)
- Application: DeltaV S-series and M-series I/O subsystems
- Condition Available: New, Refurbished, Tested
Compatible Replacement & Equivalent Models
When the KJ4006X1-BC1 is unavailable or discontinued, the following models may serve as functional equivalents depending on your system configuration. Always verify compatibility with your DeltaV I/O card before substitution:
- KJ4006X1-BC2 – Revised revision of the same terminal block series; check fuse rating compatibility
- KJ4001X1-BA1 – Unfused 8-channel terminal block; suitable where external fusing is already in place
- KJ4006X1-BB1 – Earlier revision; functionally similar, verify connector pinout
- Third-party DeltaV-compatible terminal blocks – Available from certified automation parts suppliers; must match channel count, fuse spec, and connector type
Note: Konmask.com recommends using OEM parts wherever possible. Substitutions should be validated by a qualified DeltaV system integrator.
Why Choose the Original KJ4006X1-BC1
- OEM-certified compatibility with Emerson DeltaV I/O modules — no integration risk
- Individual channel fusing protects field instruments and reduces fault propagation
- Plug-and-play installation — no additional wiring adapters required
- Proven reliability in continuous process industries (refining, chemicals, power generation)
- Full traceability — sourced with documentation for regulated industries
Typical Applications
- Oil & gas upstream/downstream control panels
- Chemical and petrochemical plant DCS cabinets
- Power generation and utilities automation
- Pharmaceutical batch process control
- Water treatment and municipal infrastructure
- Pulp, paper, and food & beverage processing
System Compatibility
The KJ4006X1-BC1 terminal block is designed for use within the Emerson DeltaV control system architecture. Confirmed compatible I/O module families include:
- DeltaV S-series I/O cards (analog input/output modules)
- DeltaV M-series subsystem I/O
- DeltaV SIS (Safety Instrumented System) — verify SIL rating requirements separately
Not compatible with: Fisher ROC, Ovation, or non-DeltaV Emerson platforms without engineering review.
Selection Guide
Use the following criteria to confirm the KJ4006X1-BC1 is the right terminal block for your application:
- Channel count: Do you need 8 field wiring termination points? ✔
- Fusing requirement: Is per-channel fuse protection required by your safety or design standard? ✔
- DeltaV platform: Are you running an Emerson DeltaV S- or M-series system? ✔
- Connector type: Confirm the mating I/O card connector matches KJ4006X1-BC1 pinout
- Fuse rating: Verify the fuse amperage matches your field device current draw
If any of the above criteria are not met, contact our technical team for an alternative recommendation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Functional testing available upon request (power-on, channel continuity, fuse integrity)
- Packaging inspection and serial number verification included
- Certificate of conformance (CoC) and test reports available for regulated industries
- Export compliance: ECCN classification and export documentation available
How to Order
- Confirm part number: KJ4006X1-BC1 / 12P4720X062
- Specify quantity and required condition (New / Refurbished / Tested-as-removed)
- Request a quote via support@konmask.com or add to cart directly
- Provide your DeltaV system version if requesting compatibility confirmation
- Lead time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
Replacement & Compatibility FAQ
Q: Can I use KJ4006X1-BC1 with DeltaV SIS modules?
A: Potentially yes, but SIS applications require additional SIL validation. Contact us for documentation support.
Q: What fuse rating does the KJ4006X1-BC1 use?
A: Refer to the Emerson DeltaV hardware manual for your specific I/O card. Fuse specs vary by channel configuration.
Q: Is the 12P4720X062 the same as KJ4006X1-BC1?
A: Yes — 12P4720X062 is the Emerson internal reference/revision code for the KJ4006X1-BC1 assembly.
Q: Do you offer a warranty on this part?
A: Yes. New units carry the standard Emerson warranty. Refurbished units include a 90-day Konmask functional warranty.
Q: Can I return a part if it’s not compatible?
A: Yes, within 30 days of receipt, subject to our returns policy. Contact support@konmask.com.
