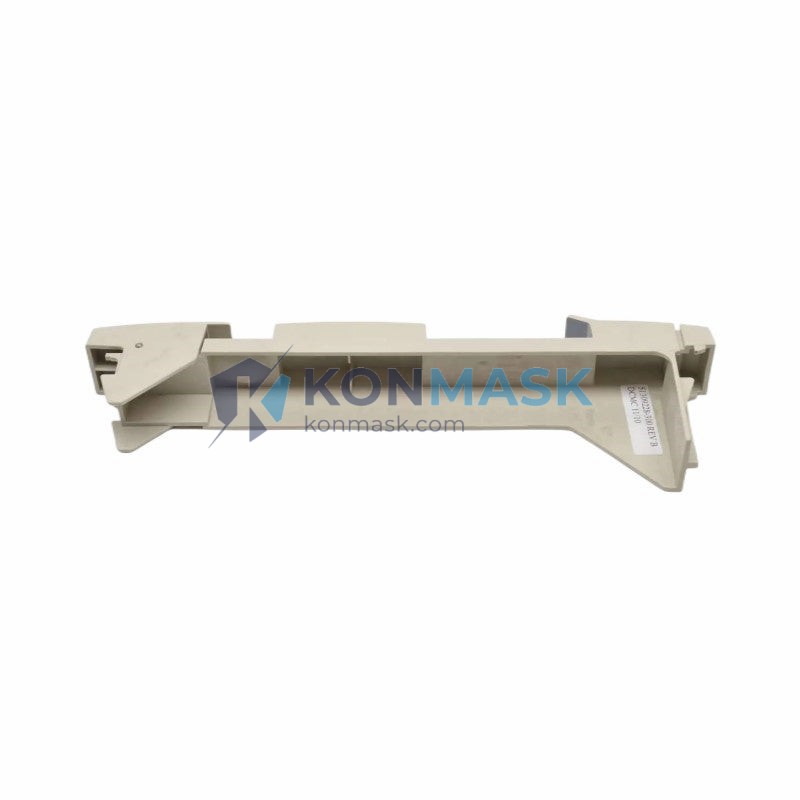

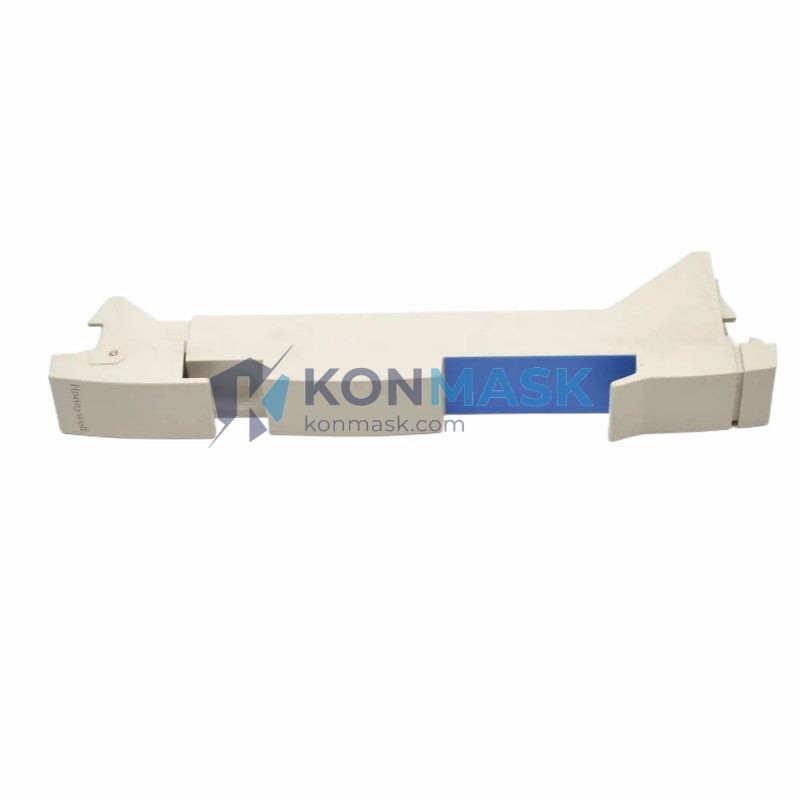

HONEYWELL 51309228-300 — Filler Panel Beige | TDC 3000 / TotalPlant DCS Platform
Engineering Background
The HONEYWELL 51309228-300 is a genuine OEM filler panel designed for use within Honeywell’s TDC 3000 and TotalPlant Distributed Control System (DCS) enclosure families. In large-scale process control installations, unused card slots and chassis bays must be covered to maintain proper airflow management, EMI shielding integrity, and cabinet cleanliness. This beige filler panel fulfills that critical mechanical role, ensuring the enclosure meets its original design specification even as module configurations evolve over the system lifecycle.
Product Positioning
Targeted at maintenance engineers, instrumentation teams, and MRO procurement specialists managing legacy Honeywell DCS infrastructure in refining, petrochemical, power generation, and continuous manufacturing environments. The 51309228-300 is a low-cost, high-impact spare that prevents costly downtime caused by thermal imbalance or contamination ingress through open chassis slots.
Complete Technical Specifications
| Part Number | 51309228-300 |
| Manufacturer | Honeywell Process Solutions |
| Description | Filler Panel, Beige |
| Compatible Platform | TDC 3000, TotalPlant DCS, HPM, LCN |
| Panel Color | Beige (standard Honeywell DCS cabinet color) |
| Function | Slot blanking / chassis bay cover |
| Material | Injection-molded engineering plastic |
| Weight | Approx. 720 g (packaged) |
| Mounting | Tool-free snap-fit / standard DCS card guide rail |
| Operating Temperature | 0°C to +60°C (per TDC 3000 cabinet spec) |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
| Lead Time | In-stock items ship within 3–5 business days |
Proven Application Environments
- Petroleum Refining: Crude distillation unit (CDU) and fluid catalytic cracking (FCC) DCS cabinets requiring slot coverage during module reconfiguration or decommissioning.
- Petrochemical Plants: Ethylene and polymer production facilities maintaining legacy TDC 3000 systems with mixed active/inactive card slots.
- Power Generation: Coal, gas, and combined-cycle plants using Honeywell HPM controllers where spare slots must be blanked for thermal management.
- Pulp & Paper / Continuous Manufacturing: Long-running DCS installations where original filler panels have been lost or damaged during maintenance cycles.
- LNG & Offshore Platforms: Harsh-environment enclosures where EMI and particulate ingress through open slots is a compliance concern.
Engineering Advantages
- Airflow Integrity: Maintains designed cabinet airflow patterns, preventing hot spots that degrade adjacent module MTBF.
- EMI Shielding: Closes apertures that would otherwise compromise the cabinet’s electromagnetic compatibility (EMC) rating.
- Contamination Prevention: Blocks dust, moisture, and process gases from entering the card cage through unused slots.
- OEM Fit & Finish: Exact color match (Honeywell beige) and mechanical fit ensures professional appearance and correct retention in card guides.
- Zero Configuration: No firmware, no wiring — install in seconds with no engineering change order (ECO) required in most facilities.
System Architecture & Signal Flow
Within the TDC 3000 / TotalPlant architecture, the Local Control Network (LCN) and High-Performance Manager (HPM) subsystems are housed in standardized card cages. Each cage accommodates a fixed number of module slots. When a slot is unoccupied — due to a removed module, a future expansion placeholder, or a decommissioned I/O card — the 51309228-300 filler panel is inserted to:
- Maintain the mechanical rigidity of the card cage assembly.
- Preserve the designed front-to-rear airflow path managed by the cabinet’s cooling fans.
- Prevent accidental contact with live backplane connectors in adjacent populated slots.
- Satisfy site HSE and OEM maintenance standards for enclosure completeness.
No signal connections are made. The panel is purely mechanical and passive.
Sourcing & Quality Verification
- Source Traceability: Units sourced from authorized distributors, certified MRO suppliers, or decommissioned plant inventories with documented chain of custody.
- Incoming Inspection: Each unit inspected for mechanical integrity — no cracks, deformation, or missing retention clips.
- Part Number Verification: Markings cross-checked against Honeywell part number database prior to listing.
- Packaging: Anti-static bag + foam-lined carton for international shipment protection.
- Counterfeit Risk: Low — this is a passive mechanical component with no electronic content. Visual and dimensional inspection is sufficient for authentication.
Procurement Process
- Inquiry: Contact us via email or phone with your required quantity and delivery timeline.
- Quotation: We respond within 24 hours with pricing, lead time, and condition confirmation.
- Order Confirmation: Purchase order or proforma invoice issued upon agreement.
- Quality Check & Dispatch: Unit inspected, photographed, and shipped with packing list and certificate of conformance (CoC) where applicable.
- After-Sales Support: 30-day return window for DOA or mis-shipped items. Technical support available for installation queries.
Technical FAQ
Q: Is the 51309228-300 compatible with all TDC 3000 card cage variants?
A: It is designed for standard Honeywell TDC 3000 / TotalPlant card cage slot dimensions. Please confirm your specific cage model if you have a non-standard configuration.
Q: Can this filler panel be used in Experion PKS cabinets?
A: Experion PKS uses a different card cage form factor. This panel is not recommended for Experion without physical verification of slot dimensions.
Q: What is the difference between 51309228-300 and other 51309228-xxx variants?
A: The -300 suffix typically denotes the beige color variant. Other suffixes may indicate different colors (e.g., gray) or minor mechanical revisions. Contact us to confirm cross-compatibility.
Q: Do you provide a certificate of conformance?
A: Yes, a CoC is available for new and surplus-new units. Refurbished units include an inspection report.
Q: What are your payment and shipping terms?
A: We accept T/T (wire transfer), PayPal, and major credit cards. DDP, DAP, and EXW Incoterms available. Global shipping via DHL, FedEx, and UPS.
