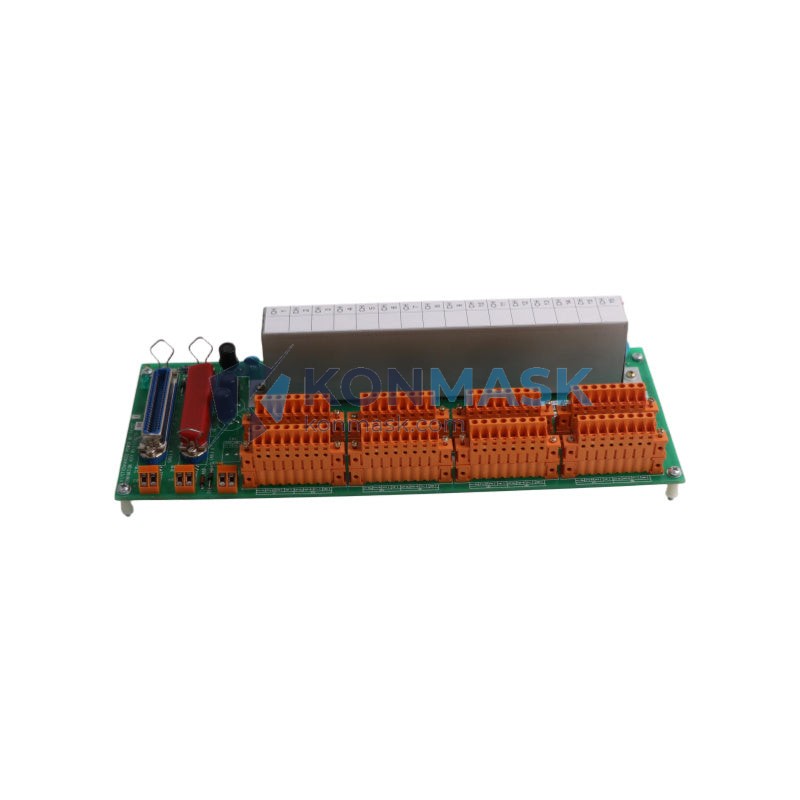

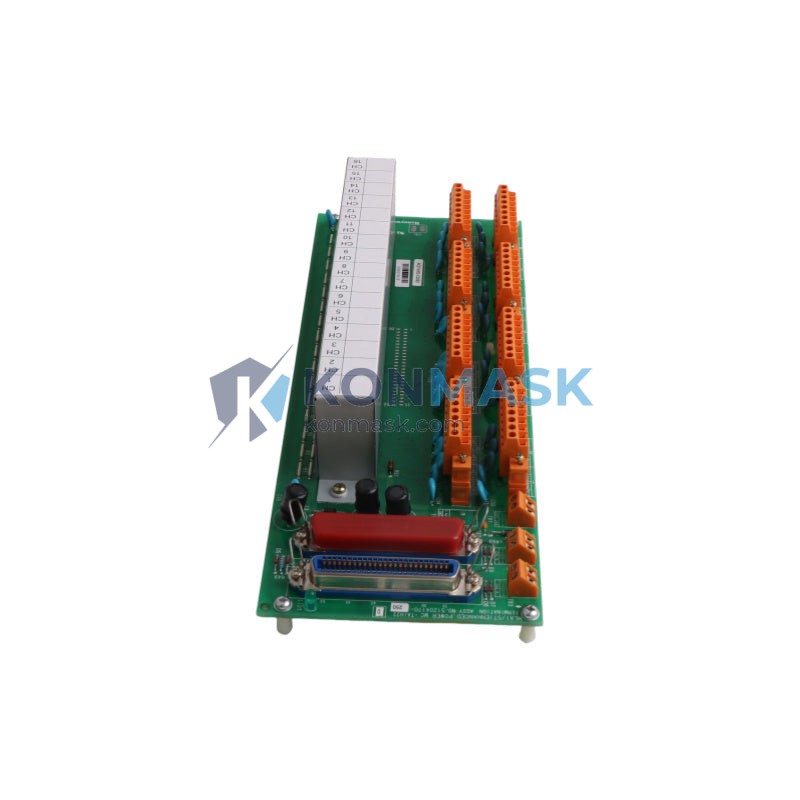

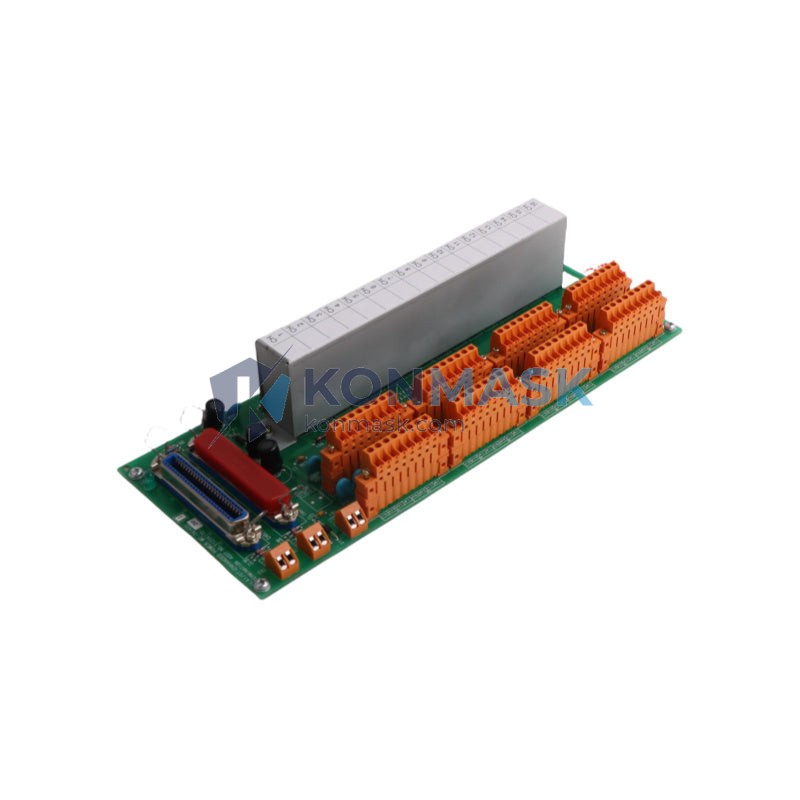

Honeywell MC-TAIH22 (51204170-250) – High Level Analog Input Module | TDC 3000 / Experion PKS
Engineering Background
The Honeywell MC-TAIH22, part number 51204170-250, is a high-level analog input module engineered for Honeywell’s TDC 3000 and Experion PKS distributed control system (DCS) platforms. Designed to meet the rigorous demands of continuous process industries, this module provides reliable, high-accuracy analog signal acquisition for critical control loops in refining, petrochemical, power generation, and advanced manufacturing environments.
Product Positioning
As a direct replacement and spare component for legacy TDC 3000 and Experion PKS installations, the MC-TAIH22 enables engineers to maintain system integrity without costly platform migrations. Konmask.com sources, inspects, and verifies each unit to ensure full functional compliance with Honeywell’s original factory specifications.
Complete Technical Specifications
| Manufacturer | Honeywell Process Solutions |
| Part Number / SKU | MC-TAIH22 / 51204170-250 |
| Module Type | High Level Analog Input (HIOM) |
| Compatible Platform | Honeywell TDC 3000, Experion PKS |
| Series | TDC 3000 / Experion PKS I/O Series |
| Signal Type | High-Level Analog Input (Voltage / Current) |
| Number of Channels | 16 (typical for HIOM class) |
| Input Range | 4–20 mA / 1–5 VDC (configurable) |
| Resolution | 12-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Communication Bus | Honeywell proprietary UCN / LCN backplane |
| Power Supply | Supplied via DCS backplane (no external PSU required) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 1.54 kg |
| Country of Origin | United States |
| Certifications | CE, UL (per Honeywell platform certification) |
Proven Application Environments
- Oil & Gas Refining: Continuous monitoring of flow, pressure, and temperature transmitters in distillation and cracking units.
- Petrochemical Plants: Multi-loop analog acquisition for reactor control and feedstock management.
- Power Generation: Boiler and turbine analog signal integration within Experion PKS control networks.
- Pulp & Paper / Chemical Processing: High-channel-count analog input for batch and continuous process control.
- Water & Wastewater Treatment: Sensor signal aggregation for SCADA-integrated DCS architectures.
Engineering Advantages
- Drop-in Replacement: 100% hardware and firmware compatible with existing TDC 3000 and Experion PKS I/O racks — no reconfiguration required.
- High Channel Density: Maximizes rack utilization and reduces per-channel cost in large-scale DCS installations.
- Galvanic Isolation: Protects the control bus from field-side transients and ground loops, ensuring signal integrity.
- Proven Reliability: Honeywell’s HIOM architecture has a documented MTBF exceeding 200,000 hours in continuous process service.
- Backward Compatibility: Supports both legacy TDC 3000 and modern Experion PKS migration paths without hardware redesign.
System Architecture & Signal Flow
The MC-TAIH22 installs directly into a standard Honeywell I/O carrier/rack assembly. Field transmitter signals (4–20 mA or 1–5 VDC) are wired to the module’s field termination assembly (FTA). The module performs A/D conversion, applies engineering unit scaling, and transmits process values over the Honeywell UCN/LCN backplane to the controller node (HPM/C200/C300). Redundant module configurations are supported via the standard Honeywell redundancy scheme, enabling bumpless switchover without process interruption.
Sourcing & Quality Verification
- Each MC-TAIH22 unit is individually inspected upon receipt at Konmask.com’s facility.
- Functional power-on verification is performed prior to shipment.
- Units are supplied with original Honeywell labeling and part number markings intact.
- Packaging: ESD-safe anti-static bag + foam-lined carton for international transit protection.
- Traceability documentation available upon request for regulated industries.
Procurement Process
- Confirm Part Number: Verify MC-TAIH22 / 51204170-250 matches your existing rack and FTA configuration.
- Request Quote: Contact [email protected] with quantity and delivery timeline requirements.
- Order & Payment: Secure checkout via Shopify — T/T bank transfer and major payment methods accepted.
- Shipping: DHL / FedEx / UPS express worldwide; lead time typically 3–7 business days from stock.
- After-Sales: 90-day functional warranty; technical support available via email and phone.
Technical FAQ
Q: Is the MC-TAIH22 compatible with Experion PKS R500 and later?
A: Yes. The module is backward compatible with all Experion PKS releases that support the standard HIOM I/O architecture.
Q: Can this module be used in a redundant I/O configuration?
A: Yes. Honeywell’s standard redundancy scheme for HIOM modules is fully supported, enabling hot-standby operation.
Q: What field termination assembly (FTA) is required?
A: The MC-TAIH22 is typically paired with Honeywell FTA assemblies designed for high-level analog input. Please confirm your existing FTA model when ordering.
Q: Do you provide a certificate of conformance?
A: Yes, upon request for orders destined for regulated or safety-critical installations.
Q: What is the lead time for bulk orders?
A: Standard stock orders ship within 3–7 business days. For bulk quantities (>5 units), please contact us for availability and pricing.
