Genuine MITSUBISHI FX3U-4AD-PT-ADP Analog Temperature Input Module | FX3U Series – Verified Source

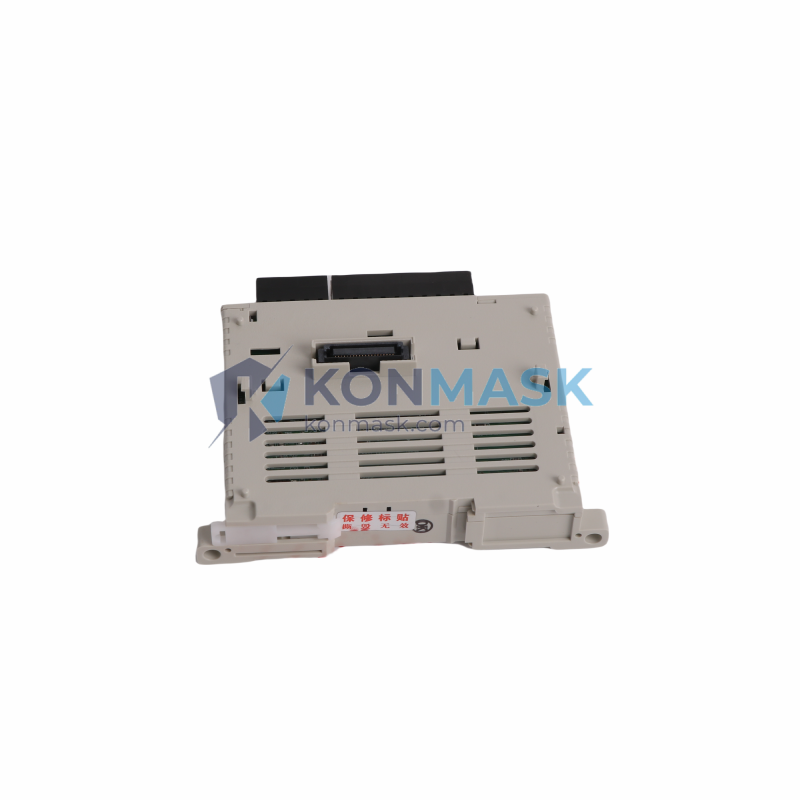

The MITSUBISHI FX3U-4AD-PT-ADP is a 4-channel PT100 resistance thermometer analog input expansion adapter designed for the MELSEC FX3U/FX3UC PLC series. Sourced directly through verified industrial supply channels, every unit sold by Konmask.com undergoes a documented authenticity and functional inspection before dispatch.
Technical Specifications
| Part Number (SKU) | FX3U-4AD-PT-ADP |
| Manufacturer | Mitsubishi Electric (MELSEC) |
| Series | MELSEC FX3U / FX3UC |
| Module Type | Analog Input Expansion Adapter |
| Input Channels | 4 channels (PT100 RTD) |
| Input Type | Platinum resistance thermometer (PT100, 3-wire) |
| Temperature Range | -100°C to +600°C |
| Resolution | 0.1°C |
| Accuracy | ±0.5°C (at 25°C ambient) |
| Power Supply | Supplied from FX3U/FX3UC main unit (5 VDC) |
| Connection | Direct adapter connection (no expansion cable required) |
| Dimensions (W×H×D) | 40 × 90 × 87 mm |
| Weight | Approx. 100 g |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +75°C |
| Standards | CE, UL, cUL |
Our 4-Step Quality Verification Process
Every FX3U-4AD-PT-ADP unit shipped from Konmask.com passes through our documented 4-step verification protocol:
- Origin Traceability Check – Supply chain documentation reviewed against Mitsubishi Electric authorized distributor records.
- Physical Authenticity Inspection – Label, hologram, housing, and connector integrity verified against OEM reference standards.
- Functional Bench Test – Module powered and channel response validated prior to packaging.
- Secure Packaging & Documentation – Anti-static packaging with inspection record enclosed; serial number logged before dispatch.
Key Features & Benefits
- 4-channel simultaneous PT100 RTD temperature acquisition
- High-resolution 0.1°C readout for precision process control
- Direct adapter mount — no expansion bus cable, minimal footprint
- Compatible with FX3U and FX3UC main units without additional power supply
- Wide measurement range: −100°C to +600°C suits demanding industrial environments
- Plug-and-play configuration via GX Works2 / GX Developer
- Compact DIN-rail-ready form factor
Typical Applications
- Furnace and kiln temperature monitoring
- HVAC and building automation systems
- Food & beverage processing temperature control
- Pharmaceutical clean-room environment monitoring
- Plastic injection molding barrel temperature feedback
- Water treatment and boiler control systems
Compatible System Components
- Main Units: FX3U-16M□, FX3U-32M□, FX3U-48M□, FX3U-64M□, FX3U-80M□, FX3U-128M□; FX3UC-32MT/D, FX3UC-64MT/D, FX3UC-96MT/D
- Other FX3U Adapters: FX3U-4AD-ADP, FX3U-4DA-ADP, FX3U-4AD-TC-ADP
- Programming Software: GX Works2, GX Developer
- Communication Modules: FX3U-232ADP-MB, FX3U-485ADP-MB, FX3U-ENET-ADP
Global Sourcing & Shipping Capabilities
Konmask.com ships the FX3U-4AD-PT-ADP worldwide from our warehouse in China. Standard lead times and shipping options:
- In-Stock Orders: Dispatched within 1–2 business days
- Express (DHL / FedEx / UPS): 3–7 business days globally
- Economy Air Freight: 7–15 business days
- Sea Freight (bulk/pallet): Available on request for large orders
- Export Documentation: Commercial invoice, packing list, and CO (Certificate of Origin) provided upon request
- Customs HS Code: 8537.10 (programmable controllers / industrial control panels)
Certifications & Compliance Statement
All MITSUBISHI FX3U-4AD-PT-ADP units supplied by Konmask.com are genuine Mitsubishi Electric products manufactured to the following standards:
- CE Marking – Compliant with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL / cUL Listed – Recognized under UL 508 (Industrial Control Equipment)
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU
Konmask.com is an independent industrial automation parts supplier. We are not an authorized Mitsubishi Electric distributor. All brand names and trademarks are the property of their respective owners and are referenced solely for product identification purposes.
How to Order
- Click Add to Cart and proceed to checkout, or
- Contact us directly for bulk pricing, OEM quotes, or urgent sourcing:
- 📧 support@konmask.com
- 📞 +0086 19859288691 (WhatsApp / WeChat available)
- Provide your required quantity, delivery address, and any special documentation needs (e.g., FORM E, CO, test report).
- We will confirm stock, issue a proforma invoice, and arrange shipment within 1–2 business days.
Authenticity & Trust FAQ
Q: Are these genuine Mitsubishi Electric products?
A: Yes. Every unit is sourced from verified industrial supply channels and inspected before shipment. We provide documentation upon request.
Q: Can you provide a test report or inspection certificate?
A: Yes. A functional test record is available for each unit. Please request at time of order.
Q: Do you accept returns if the module is faulty?
A: Yes. We offer a 30-day DOA (Dead on Arrival) replacement policy. Contact support@konmask.com within 30 days of receipt.
Q: Can you source other FX3U modules not listed on your site?
A: Yes. We specialize in hard-to-find and discontinued Mitsubishi PLC components. Send us your part number and we will respond within 24 hours.
Q: What payment methods do you accept?
A: We accept T/T (bank transfer), PayPal, credit card (via Shopify Payments), and Western Union for international orders.
