Gas Flow Control Solution – MKS Instruments MKS 1579A00412LM1BV | 1579A Series
Where This Product Is Used

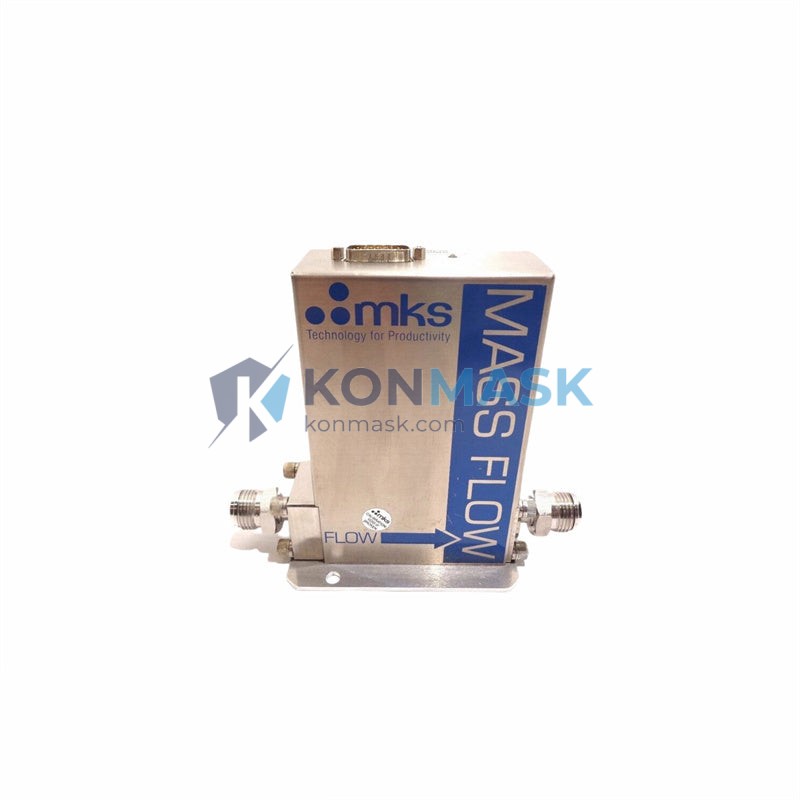

The MKS 1579A00412LM1BV Digital Mass Flow Controller is engineered for precision gas flow management in demanding industrial and semiconductor environments. Typical deployment scenarios include:
- Semiconductor Fabrication (CVD / PECVD / ALD) – Precise precursor gas delivery to deposition chambers where flow accuracy directly impacts film uniformity and yield.
- Etch Process Tools – Stable, repeatable flow of reactive gases (Cl₂, HBr, SF₆) in plasma etch systems requiring tight process windows.
- Gas Blending & Mixing Panels – Multi-channel manifold systems where each MFC must maintain independent set-point accuracy across varying upstream pressures.
- R&D Laboratories & Pilot Lines – Benchtop gas delivery rigs for process development, where digital communication (RS-485 / analog 0–5 V) simplifies data logging.
- Industrial Process Control – Specialty gas dosing in chemical synthesis, fuel cell testing, and environmental monitoring instrumentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | 1579A00412LM1BV |
| Series | MKS 1579A |
| Manufacturer | MKS Instruments |
| Type | Digital Mass Flow Controller (MFC) |
| Control Signal | Analog 0–5 VDC / RS-485 Digital |
| Valve Type | Normally Closed (NC) |
| Wetted Materials | 316L SS, Viton / EPDM seals |
| Operating Pressure | Up to 100 psig inlet |
| Accuracy | ±1% FS |
| Repeatability | ±0.2% FS |
| Response Time | <2 seconds to set-point |
| Power Supply | ±15 VDC or +24 VDC |
| Connector | 15-pin D-sub |
| Weight | 1,580 g |
| Certifications | CE, RoHS |
Note: Confirm full gas-specific calibration details (gas type, full-scale range) from the unit label or contact Konmask for datasheet.
Why Engineers Specify This Model
- Digital Stability – Onboard microprocessor compensates for temperature drift, delivering consistent accuracy across ambient swings common in fab environments.
- Drop-in Compatibility – Standard 1.125″ face-seal (VCR / W-seal) port configuration matches existing MKS 1179 / 1259 footprints for straightforward upgrades.
- Dual-Mode Communication – Supports both analog set-point and RS-485 digital protocol, enabling integration with legacy PLC systems and modern SCADA/DCS platforms simultaneously.
- Fast Set-Point Response – Sub-2-second settling time minimizes recipe transition delays in multi-step deposition processes.
- Long Service Life – Hermetically sealed sensor element and corrosion-resistant wetted path reduce maintenance intervals in corrosive-gas applications.
Complete System Bill of Materials
For a fully operational gas delivery line using the MKS 1579A00412LM1BV, engineers typically source the following complementary components:
- MKS PR4000B / PR4000F Multi-Channel MFC Controller / Readout
- MKS 122B / 627D Capacitance Manometer (upstream pressure reference)
- VCR Face-Seal Fittings & Gaskets (316L SS, Ni, or Al)
- Pneumatic or Manual Shut-off Valves (MKS 12 Series or equivalent)
- 15-pin D-sub Breakout Cable / Harness
- RS-485 to USB Converter (for PC-based logging)
- Stainless Steel Tubing (1/4″ OD, electropolished)
Contact support@konmask.com for bundle pricing on complete gas panel assemblies.
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive.
- RoHS – Restriction of Hazardous Substances compliant.
- SEMI S2 / S8 – Designed for use in semiconductor equipment meeting SEMI safety guidelines.
- ISO 9001 – Manufactured under MKS Instruments’ ISO 9001-certified quality management system.
Quality Assurance & Sourcing
Konmask.com sources MKS Instruments components through verified industrial supply channels. Every unit undergoes the following before shipment:
- Visual inspection for physical damage, port contamination, and label integrity.
- Connector pin-out verification against MKS wiring documentation.
- Packaging in anti-static, moisture-barrier bags with desiccant for transit protection.
Surplus and refurbished units are clearly identified. New-in-box units ship with original MKS documentation where available.
How to Source This Part
- Add to Cart – Click Buy Now for immediate checkout.
- Request a Quote – Email support@konmask.com with your required quantity, delivery timeline, and any calibration gas specifications.
- Bulk / OEM Orders – Call or WhatsApp +0086 19859288691 for volume pricing and lead-time commitments.
- Expedited Shipping – DHL / FedEx express options available for urgent fab downtime situations.
Application-Specific FAQ
Q: What gas is this unit calibrated for?
A: The calibration gas and full-scale range are encoded in the model number suffix. The “LM1BV” suffix indicates specific gas and range parameters — contact us with your process gas to confirm compatibility or request recalibration.
Q: Is this compatible with MKS PR4000 controllers?
A: Yes. The 1579A series uses the standard MKS 15-pin D-sub interface and analog 0–5 V signal, fully compatible with PR4000B/F and similar multi-channel readouts.
Q: Can it control corrosive gases like HCl or Cl₂?
A: The 316L SS wetted path and Viton seals provide good resistance to many corrosive gases. Confirm seal compatibility with your specific gas before deployment in aggressive chemistries.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes — 90-day functional warranty on all units. Extended warranty options available on request.
