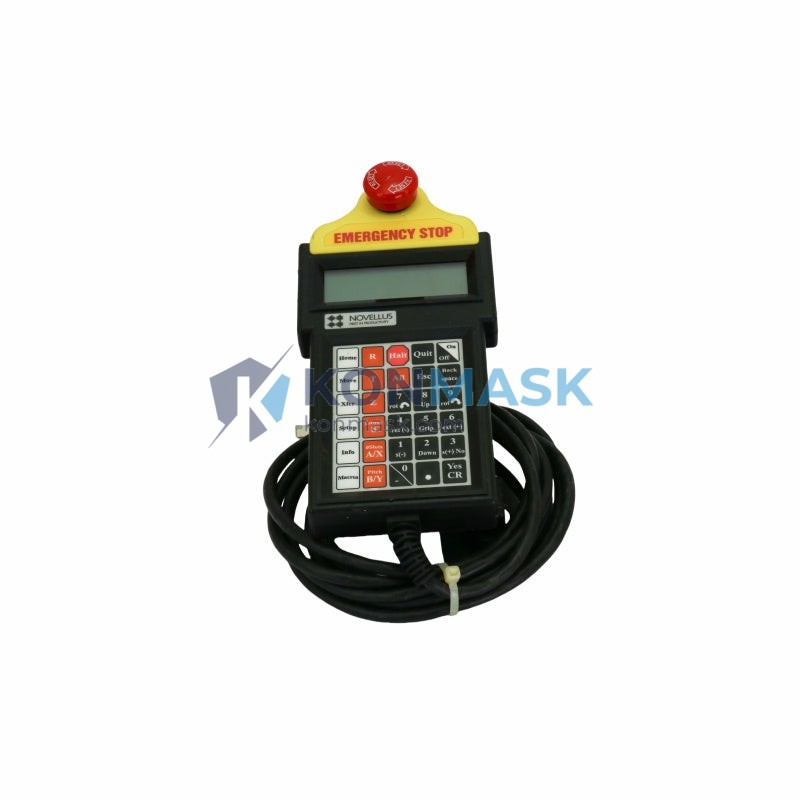

NOVELLUS TT2301R2-1-NES-NOVELLUS2 Teach Pendant | Novellus2 CVD/PVD Semiconductor System Operator Interface
Engineering Background: The Novellus2 platform was a cornerstone of sub-micron CVD (Chemical Vapor Deposition) and PVD process chambers deployed across leading semiconductor fabs worldwide. The Teach Pendant serves as the primary human-machine interface for robot arm programming, wafer handling sequence setup, and real-time diagnostic interaction within the Novellus2 automated wafer transfer system.
Product Positioning: This OEM-grade Teach Pendant (P/N TT2301R2-1-NES-NOVELLUS2, cross-reference: 27-326390-00 / 112831 / 9050019-03 / 9820052-05) is sourced from verified industrial channels and is suitable for direct replacement or spare-parts inventory in active Novellus2 fab environments. Konmask.com specializes in hard-to-source semiconductor automation components with full traceability documentation.
Complete Technical Specifications
- Manufacturer: NOVELLUS Systems (now Lam Research)
- Part Number (Primary): TT2301R2-1-NES-NOVELLUS2
- Cross-Reference P/N: 27-326390-00 | 112831 | 9050019-03 | 9820052-05
- Component Type: Teach Pendant / Handheld Operator Terminal
- Compatible Platform: Novellus2 CVD / PVD Wafer Processing System
- Interface Function: Robot arm teach-in programming, wafer transfer sequence configuration, real-time I/O diagnostics
- Communication Protocol: Proprietary Novellus serial interface (RS-422 / RS-485 compatible)
- Weight: Approx. 800 g
- Country of Origin: United States
- Condition: Refurbished / Tested — functional verification performed prior to shipment
Proven Application Environments
- Novellus2 PECVD (Plasma-Enhanced CVD) process chambers
- Novellus2 SACVD / HDPCVD deposition systems
- PVD (Physical Vapor Deposition) cluster tool wafer handlers
- Automated wafer transfer robot (ATM) teach-in and re-calibration after chamber maintenance
- Fab-level spare parts inventory for legacy Novellus2 tool fleets
- Equipment refurbishment and resale operations (ERS / used equipment dealers)
Engineering Advantages
- OEM Compatibility: Direct drop-in replacement — no firmware modification required for standard Novellus2 configurations
- Multi-P/N Coverage: Single unit covers four cross-reference part numbers, simplifying BOM management
- Functional Verification: Each unit undergoes power-on and communication link testing before dispatch
- Traceability: Full documentation package available upon request (test report, photos, serial number record)
- Reduced Downtime: In-stock availability enables same-week dispatch, minimizing fab tool downtime costs
- Legacy Support: Supports continued operation of Novellus2 tools beyond OEM end-of-life support window
System Architecture & Signal Flow
Within the Novellus2 system architecture, the Teach Pendant connects to the robot controller module via a dedicated pendant port. During teach mode, the pendant transmits incremental motion commands (joint-space or Cartesian) to the robot controller, which translates these into stepper/servo drive signals for the wafer transfer arm. Position data is stored in the controller’s non-volatile memory upon confirmation. During normal production, the pendant is typically docked and the system operates under automated recipe control from the host process computer (SECS/GEM interface).
Sourcing & Quality Verification
- Source: Decommissioned fab equipment, certified refurbishers, and authorized industrial surplus channels
- Inspection: Visual inspection (connector integrity, keypad, display, cable) + electrical power-on test
- Packaging: ESD-safe anti-static bag + foam-padded carton for international shipment
- Warranty: 90-day functional warranty — contact [email protected] for claims
- Certification: CE / RoHS documentation available upon request for applicable markets
Procurement Process
- Inquiry: Submit your P/N and quantity requirement via the product page or email [email protected]
- Quote: Receive a formal quotation with lead time and shipping options within 24 business hours
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice available for bank transfer
- Inspection & Dispatch: Unit re-inspected, photographed, and dispatched with tracking within 3–5 business days
- After-Sales: Technical support and warranty claims handled by Konmask engineering team
Technical FAQ
Q: Is this pendant compatible with Novellus Concept One or Concept Two systems?
A: This pendant is specifically designed for the Novellus2 platform. Compatibility with Concept One/Two requires verification of the controller interface version — contact us with your system serial number for confirmation.
Q: Can the pendant firmware be updated?
A: Firmware is embedded in the pendant controller. Updates, if required, must be performed using Novellus/Lam Research service tools. Konmask can advise on firmware version compatibility.
Q: What is the lead time for bulk orders (>3 units)?
A: Bulk availability varies by stock. Contact us for a dedicated inventory check and volume pricing.
Q: Do you provide a test report with the unit?
A: Yes. A functional test report with power-on confirmation and communication link status is available upon request at no additional charge.
Q: What shipping methods are available?
A: DHL Express, FedEx International Priority, and UPS Worldwide are standard options. Sea freight consolidation available for large orders.
