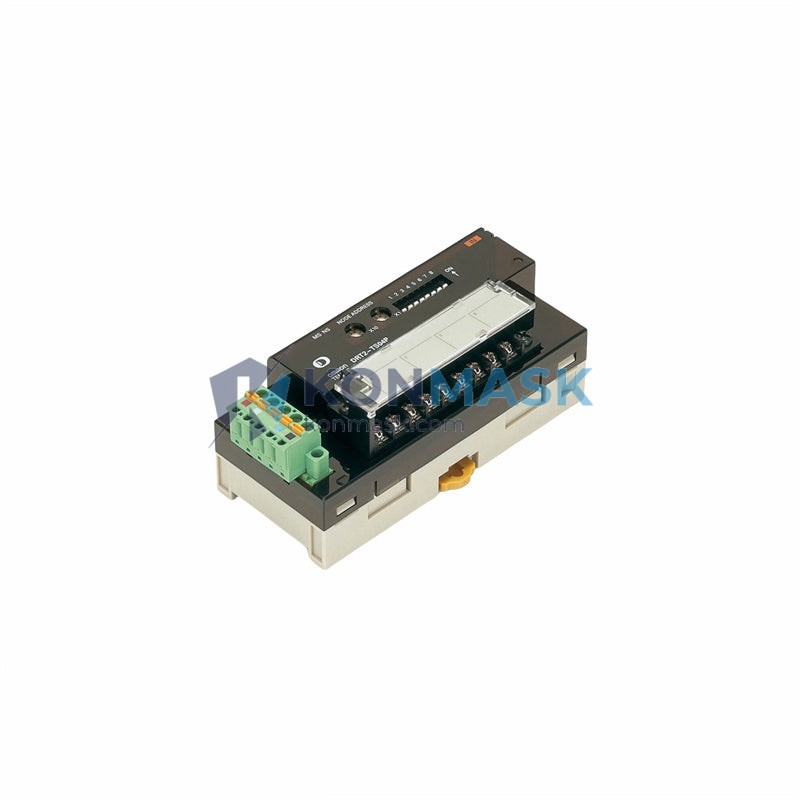

OMRON DRT2-TS04P DeviceNet Analog I/O Module | Replacement, Equivalent & Selection Guide
The OMRON DRT2-TS04P is a DeviceNet-compatible analog I/O module featuring 4 thermocouple input channels. Designed for precise temperature measurement in industrial automation systems, it integrates seamlessly with OMRON’s CJ/CS/CVM1 PLC platforms via DeviceNet. This page provides full technical specifications, compatible replacement models, and a selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Model: DRT2-TS04P
- Brand: OMRON
- Series: DRT2 (DeviceNet Remote Terminal)
- Network: DeviceNet
- Input Channels: 4 (Thermocouple)
- Thermocouple Types: K, J, T, E, L, U, N, R, S, B, W, PLII
- Resolution: 0.1°C / 0.1°F
- Accuracy: ±1°C (K-type, 0–1000°C)
- Conversion Speed: 250 ms per channel
- Power Supply: 24 VDC (supplied via DeviceNet)
- Current Consumption: 80 mA max (24 VDC)
- Node Address: 0–63 (set via rotary switch)
- Baud Rate: 125 / 250 / 500 kbps
- Protection: IP20
- Operating Temperature: 0–55°C
- Dimensions (W×H×D): 31 × 90 × 71 mm
- Weight: Approx. 150 g
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or alternatives to the DRT2-TS04P. Always verify electrical and protocol compatibility before substitution.
- OMRON DRT2-TS04 – Same series, NPN-type thermocouple input; functionally equivalent for most applications
- OMRON DRT2-AD04 – 4-ch analog voltage/current input; suitable if thermocouple signal conditioning is handled externally
- OMRON DRT2-TS08T – 8-channel thermocouple input; upgrade option for higher channel density
- Turck TBDP-L4-4AI – Third-party DeviceNet analog input block; requires configuration mapping
- Pepperl+Fuchs ICE1-8AI-G60L – DeviceNet-compatible analog input module; verify thermocouple support
Note: Third-party replacements may require gateway configuration or signal converters. Contact our team for compatibility verification.
Why Choose the Original Model
- Native DeviceNet integration with OMRON CJ/CS/CVM1 PLCs — zero configuration overhead
- Supports 12 thermocouple types with automatic cold-junction compensation
- Compact DIN-rail form factor with IP20 protection for panel installation
- Proven reliability in continuous industrial environments (0–55°C operating range)
- Full OMRON ecosystem support: EDS files, CX-Integrator configuration, and OMRON technical documentation
Typical Applications
- Furnace and kiln temperature monitoring
- Plastic injection molding machine temperature control
- Food processing and sterilization systems
- HVAC and building automation panels
- Semiconductor manufacturing process control
- Pharmaceutical batch temperature logging
System Compatibility
- PLC Platforms: OMRON CJ1/CJ2, CS1, CVM1/CV series via DeviceNet master unit
- DeviceNet Master Units: CJ1W-DRM21, CS1W-DRM21, 3G8F7-DRM21
- Configuration Software: CX-Integrator (v2.x and above)
- EDS File: Available from OMRON IA Global website
- Bus Topology: Trunk/drop line, multi-drop
Selection Guide
Use the table below to select the right DRT2 analog module for your application:
- DRT2-TS04P — 4-ch thermocouple input, PNP, DeviceNet → This product
- DRT2-TS04 — 4-ch thermocouple input, NPN, DeviceNet
- DRT2-TS08T — 8-ch thermocouple input, DeviceNet
- DRT2-AD04 — 4-ch voltage/current analog input, DeviceNet
- DRT2-DA02 — 2-ch analog output, DeviceNet
Key selection criteria: number of channels required → thermocouple type → PNP/NPN wiring convention → DeviceNet master compatibility.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual check, label verification, and functional test where applicable
- Original packaging preserved where available
- Traceability documentation provided on request
- Warranty: 90-day DOA guarantee; extended warranty available
How to Order
- Confirm model number: DRT2-TS04P
- Specify quantity and required delivery timeline
- Contact us via email or phone for bulk pricing and lead time
- Receive proforma invoice → confirm payment → shipment with tracking
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can DRT2-TS04 replace DRT2-TS04P?
A: Yes, in most cases. The key difference is PNP (TS04P) vs NPN (TS04) output logic. Verify your wiring convention before substitution.
Q: Is DRT2-TS04P compatible with EtherNet/IP networks?
A: No. This module is DeviceNet only. For EtherNet/IP, consider OMRON’s NX/NE series analog modules.
Q: What thermocouple types are supported?
A: K, J, T, E, L, U, N, R, S, B, W, and PLII — 12 types total with automatic cold-junction compensation.
Q: Can I use this module with a third-party DeviceNet master?
A: Yes, provided the master supports standard DeviceNet I/O messaging and the EDS file is loaded correctly.
Q: What is the minimum order quantity?
A: We supply single units and bulk orders. Contact us for volume pricing.
