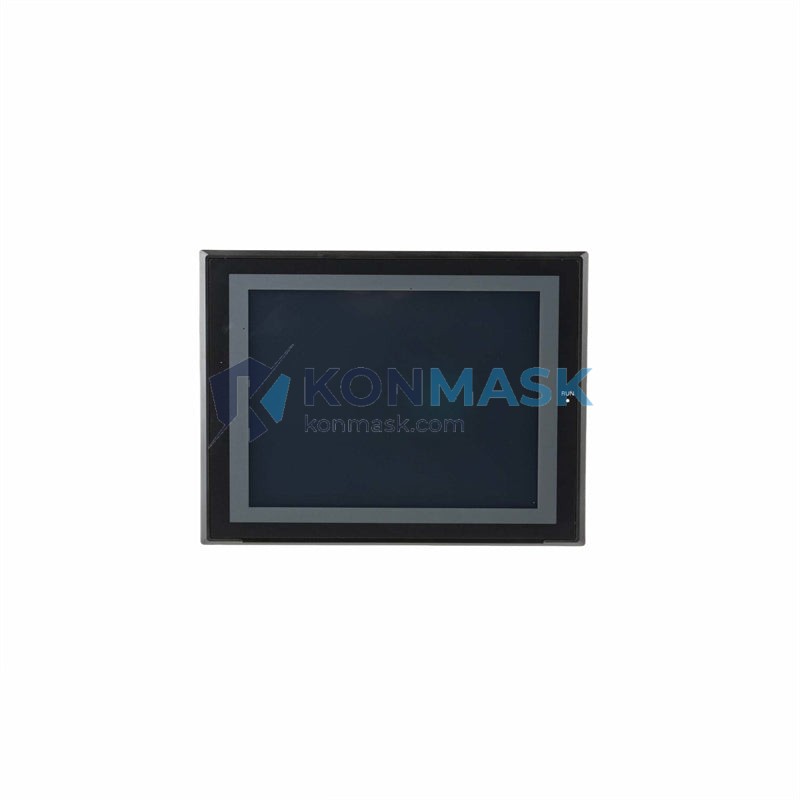

Omron NS10-TV00B-ECV2 – 10.4″ Color Touch Screen HMI | NS Series Platform
Engineering Background
The Omron NS Series represents Omron’s flagship Human Machine Interface platform, engineered for demanding industrial environments where reliable operator interaction is critical. The NS10-TV00B-ECV2 is a 10.4-inch TFT color touch screen panel designed to integrate seamlessly with Omron CJ/CS/NJ/NX series PLCs and third-party controllers via serial and Ethernet communication.
Product Positioning
Targeted at procurement engineers and system integrators in manufacturing, process control, and machine automation sectors, the NS10-TV00B-ECV2 delivers a high-resolution operator interface with robust connectivity, extensive tag capacity, and proven field reliability. It is a direct replacement and upgrade path for legacy NS-series panels in existing control architectures.
Complete Technical Specifications
| Part Number | NS10-TV00B-ECV2 |
| Brand | Omron |
| Series | NS Series |
| Display Size | 10.4 inch (diagonal) |
| Display Type | TFT Color LCD |
| Resolution | 640 × 480 (VGA) |
| Colors | 65,536 colors |
| Touch Panel Type | Analog resistive |
| Backlight | LED |
| Communication Ports | RS-232C × 2, Ethernet (100BASE-TX) × 1, USB Host × 1, USB Slave × 1 |
| Memory | 60 MB (screen data), 20 MB (data log) |
| Number of Screens | Up to 32,000 |
| Power Supply | 24 VDC (±10%) |
| Power Consumption | Approx. 25 W |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Protection Rating | IP65F (front panel) |
| Vibration Resistance | 10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Weight | Approx. 940 g |
| Dimensions (W × H × D) | 310 × 240 × 56 mm (panel cutout: 295 × 225 mm) |
| Country of Origin | Japan |
| Certifications | CE, UL, cUL |
Proven Application Environments
- Discrete Manufacturing: Machine tool control panels, robotic cell HMI stations, assembly line operator interfaces
- Process Industries: Chemical dosing systems, water treatment SCADA front-ends, food & beverage batch control
- Building Automation: HVAC control visualization, energy management dashboards
- Packaging Machinery: Filling, labeling, and wrapping machine operator panels
- Semiconductor & Electronics: Test equipment interfaces, cleanroom-compatible operator stations
Engineering Advantages
- Dual Serial + Ethernet: Simultaneous multi-protocol connectivity supports complex network topologies without additional gateways
- IP65F Front Panel: Sealed against dust and water jets — suitable for wash-down and harsh industrial environments
- LED Backlight: Extended service life vs. CCFL predecessors; reduced maintenance intervals
- Large Screen Memory (60 MB): Supports complex graphical projects with high tag counts without performance degradation
- CX-Designer Compatibility: Full support for Omron’s CX-Designer software suite for rapid screen development and simulation
- USB Host Port: Enables on-site data logging to USB flash drive and firmware updates without PC connection
System Architecture & Signal Flow
The NS10-TV00B-ECV2 operates as the operator interface layer within a standard IEC 61131-3 control architecture:
- Controller Layer: Omron CJ2M / CS1G / NJ501 PLC or third-party controller via serial (Host Link, NT Link) or Ethernet/IP
- HMI Layer: NS10-TV00B-ECV2 reads/writes PLC data areas (DM, CIO, W, H registers) in real time
- Operator Layer: Touch input triggers PLC bit/word writes; alarm history, trend graphs, and data logs stored locally
- Network Layer: Ethernet port supports connection to SCADA systems, historian servers, or remote monitoring via NS-series web server function
Sourcing & Quality Verification
- All units sourced through verified industrial distribution channels with full traceability
- Pre-shipment inspection: power-on test, display uniformity check, touch calibration verification
- Original Omron packaging and documentation supplied where available
- Batch and serial number documentation available upon request for quality records
- Counterfeit risk mitigation: units cross-referenced against Omron authorized part databases
Procurement Process
- Step 1: Submit RFQ or place order directly via Konmask.com product page
- Step 2: Stock confirmation and lead time communicated within 1 business day
- Step 3: Proforma invoice issued; payment via T/T, PayPal, or credit card
- Step 4: Export documentation (commercial invoice, packing list, COO) prepared for international shipments
- Step 5: Shipment via DHL / FedEx / UPS with full tracking; EXW Xiamen or CIF options available
- Step 6: Post-delivery technical support via email or WhatsApp
Technical FAQ
Q: Is the NS10-TV00B-ECV2 compatible with Omron NX/NJ series PLCs?
A: Yes. Via Ethernet/IP or serial Host Link protocol. CX-Designer tag import from Sysmac Studio is supported for streamlined project migration.
Q: Can this HMI connect to third-party PLCs (Siemens, Mitsubishi, Allen-Bradley)?
A: Yes, via RS-232C serial port using available protocol drivers in CX-Designer (Modbus RTU, Mitsubishi FX, etc.).
Q: What is the backlight lifespan?
A: LED backlight rated for approximately 50,000 hours MTBF under normal operating conditions.
Q: Is a programming cable included?
A: Units are supplied as standard hardware. USB cable for CX-Designer connection is standard USB-B type (customer-supplied).
Q: Do you provide warranty?
A: 12-month warranty against manufacturing defects. DOA replacement within 30 days of receipt.
