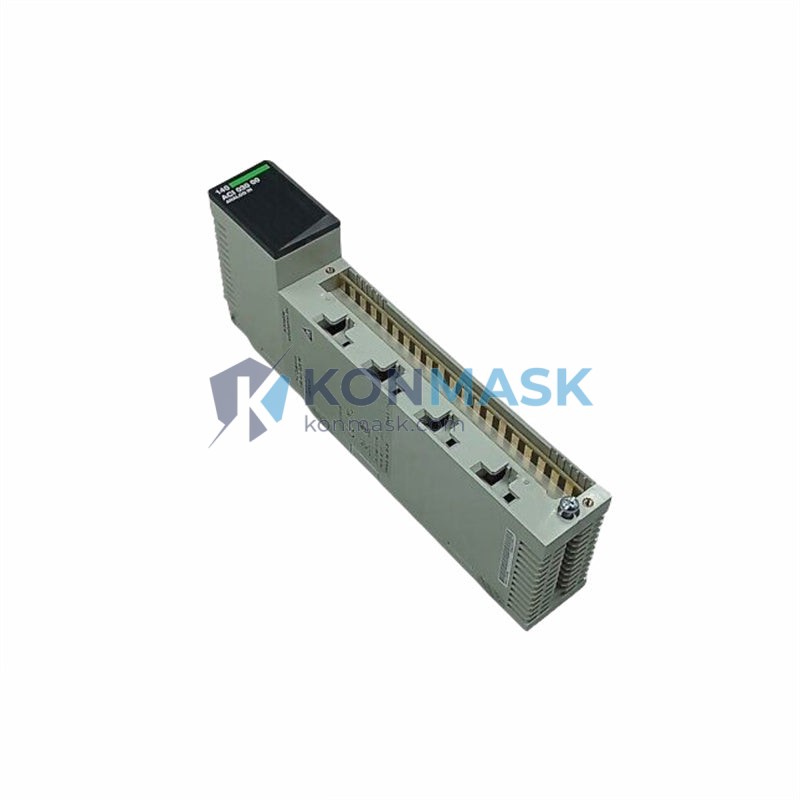

Schneider Electric 140 ACI 030 00 – 16-Channel Analogue Input Module | Modicon Quantum Platform
Engineering Background: The Modicon Quantum series represents Schneider Electric’s flagship high-performance PLC platform, engineered for mission-critical process automation in industries where signal integrity and system uptime are non-negotiable. The 140 ACI 030 00 is a dedicated analogue input module designed to interface field-level sensors and transmitters directly with the Quantum backplane, delivering precise, noise-immune signal acquisition across 16 independent channels.
Product Positioning: Targeted at process control engineers and system integrators working in oil & gas, chemical processing, power generation, water treatment, and heavy manufacturing, the 140 ACI 030 00 provides the analogue front-end backbone for closed-loop control strategies. Its compatibility with standard 4–20 mA and 0–10 V field instruments makes it universally deployable across legacy and greenfield installations.
Complete Technical Specifications
- Part Number / SKU: 140 ACI 030 00
- Manufacturer: Schneider Electric (Modicon)
- Series / Platform: Modicon Quantum (140 Series)
- Module Type: Analogue Input Module
- Number of Channels: 16 (single-ended) / 8 (differential)
- Input Signal Types: 4–20 mA, 0–20 mA, 0–10 V, 1–5 V
- Resolution: 12-bit (4096 steps)
- Conversion Speed: ≤ 10 ms per channel (full scan)
- Input Impedance: > 10 MΩ (voltage); 250 Ω (current)
- Isolation: 500 V AC channel-to-backplane isolation
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: 800 mA @ 5 V DC (from backplane)
- Module Weight: 1,260 g
- Backplane Compatibility: Modicon Quantum 140 CPS / 140 XBP backplanes
- Certifications: CE, UL, cUL, FM Class I Div 2
- Country of Origin: France / USA (Schneider Electric manufacturing)
Proven Application Environments
- Oil & Gas: Wellhead pressure/temperature monitoring, pipeline SCADA integration, compressor station control
- Chemical & Petrochemical: Reactor temperature profiling, flow measurement, level control loops
- Power Generation: Turbine inlet/outlet parameter acquisition, boiler drum level sensing
- Water & Wastewater: pH, dissolved oxygen, and flow transmitter interfacing
- Pulp & Paper / Mining: Multi-point temperature scanning, conveyor load monitoring
- Building Automation: HVAC chiller plant analogue feedback integration
Engineering Advantages
- High Channel Density: 16 single-ended inputs per slot minimise rack space and wiring cost in large I/O systems.
- Universal Signal Compatibility: Accepts both current (4–20 mA) and voltage (0–10 V) signals without external signal conditioners.
- Galvanic Isolation: 500 V AC channel-to-backplane isolation protects the CPU from field-side transients and ground loops.
- Hot-Swap Ready: Supports live insertion/removal on Quantum backplanes with RIO/DIO configurations, enabling maintenance without system shutdown.
- Diagnostics: Per-channel open-wire and over-range detection with status bits mapped directly to the process image table.
- Unity Pro / Concept / ProWORX Compatible: Fully supported by all Schneider Electric Quantum programming environments.
System Architecture & Signal Flow
The 140 ACI 030 00 occupies a single slot on any Modicon Quantum 140 XBP backplane. Field wiring connects via the front-panel terminal block (Telefast or direct screw terminals). Analogue signals are multiplexed through a 16:1 MUX, digitised by a 12-bit successive-approximation ADC, and transferred to the backplane data bus each PLC scan cycle. The module’s internal microprocessor handles channel sequencing, self-calibration, and diagnostic flag generation autonomously, offloading the CPU from signal conditioning tasks. In Remote I/O (RIO) or Distributed I/O (DIO) topologies, the module operates identically under the 140 CRP / 140 NOE head-end adapters.
Sourcing & Quality Verification
- Source: Authorised distributor stock and verified surplus from decommissioned Schneider Electric installations.
- Inspection Protocol: Each unit undergoes visual inspection (label integrity, connector condition, housing cracks), functional power-on test, and firmware version verification prior to shipment.
- Authenticity: Schneider Electric holographic labels and date codes are verified. Counterfeit units are rejected at intake.
- Packaging: Anti-static bag + foam-lined carton. ESD-safe handling throughout the fulfilment process.
- Warranty: 12-month operational warranty against manufacturing defects.
Procurement Process
- Confirm Part Number: Verify 140 ACI 030 00 against your BOM or existing rack configuration.
- Request Quote: Contact [email protected] or call +0086 19859288691 for volume pricing and lead time.
- Order Placement: Purchase directly via this product page or via PO/proforma invoice for B2B accounts.
- Shipping: DHL Express / FedEx International Priority. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- Delivery & Commissioning Support: Our technical team is available for remote commissioning guidance and Unity Pro configuration assistance.
Technical FAQ
Q: Is the 140 ACI 030 00 compatible with Modicon Premium or M340 platforms?
A: No. This module is exclusively designed for the Modicon Quantum 140-series backplane. It is not compatible with Premium TSX or M340 racks.
Q: Can I mix current and voltage inputs on the same module?
A: Yes. Each channel is individually configurable for current or voltage input via software parameter settings in Unity Pro / Concept.
Q: What is the maximum cable length for field wiring?
A: Schneider Electric recommends shielded twisted-pair cable up to 300 m for current inputs (4–20 mA) and up to 100 m for voltage inputs (0–10 V) in standard industrial environments.
Q: Does the module support HART protocol?
A: No. The 140 ACI 030 00 is a standard analogue module and does not support HART communication. For HART-enabled analogue input, refer to the 140 AHI 330 00.
Q: What firmware version is required on the Quantum CPU?
A: The module is compatible with all Quantum CPU firmware versions from V2.0 onwards. No special firmware is required.
