Schneider Electric 140-AVI-030-00 Analog Input Module | Replacement, Equivalent & Selection Guide

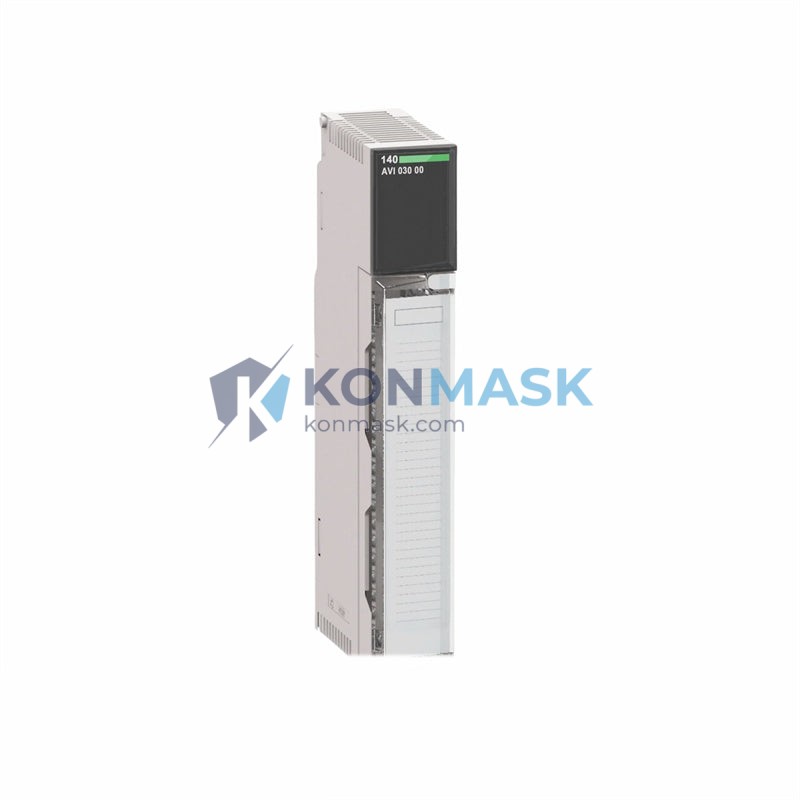

The Schneider Electric 140-AVI-030-00 is a high-performance analog input module designed for the Modicon Quantum PLC platform. It provides 16 channels of analog voltage/current input, enabling precise process monitoring and control in demanding industrial environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: 140-AVI-030-00
- Manufacturer: Schneider Electric (Modicon)
- Series: Modicon Quantum
- Module Type: Analog Input Module
- Number of Channels: 16
- Input Signal Range: ±10 V / 0–10 V / 0–20 mA / 4–20 mA (software selectable)
- Resolution: 12-bit
- Isolation: Channel-to-backplane isolated
- Backplane Bus: Modicon Quantum I/O bus
- Power Consumption: Supplied via backplane
- Operating Temperature: 0°C to 60°C
- Dimensions: Standard Quantum single-slot form factor
- Weight: 1,260 g (approx.)
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following modules are commonly evaluated as replacements or functional equivalents for the 140-AVI-030-00. Always verify electrical and software compatibility before substitution.
- 140-AVI-030-00B – Revised hardware revision; direct drop-in replacement in most Quantum racks
- 140-ARI-030-10 – Analog input module with RTD/thermocouple support; suitable when temperature sensing is required
- 140-ACI-030-00 – Current-only analog input; use when voltage inputs are not needed
- BMXAMI0810 – Modicon M340 platform equivalent (requires rack and software migration)
- BMXAMI0410 – 4-channel M340 analog input; suitable for smaller I/O count applications
- Third-party equivalents: Certain Wago, Phoenix Contact, and Beckhoff analog input modules offer compatible signal ranges but require gateway or protocol adaptation
Note: Cross-platform replacements require Unity Pro / EcoStruxure Control Expert reconfiguration. Consult your system integrator before substitution.
Why Choose the Original 140-AVI-030-00
- Proven reliability in continuous process industries with 20+ years of field deployment
- Native Quantum backplane compatibility — no adapters, no firmware conflicts
- Software transparency — recognized automatically by Unity Pro and EcoStruxure Control Expert
- Multi-range flexibility — voltage and current inputs configurable per channel via software
- Schneider Electric global support — spare parts, firmware updates, and technical documentation readily available
Typical Applications
- Oil & gas process monitoring (pressure, flow, level transmitters)
- Water and wastewater treatment plant automation
- Power generation and distribution control systems
- Chemical and pharmaceutical batch processing
- Building management and HVAC control
- Mining and heavy industry conveyor/process control
System Compatibility
- PLC Platform: Modicon Quantum (140-series rack)
- Compatible Racks: 140-XBP-004-00, 140-XBP-006-00, 140-XBP-010-00, 140-XBP-016-00
- Compatible CPUs: 140-CPU-311-10, 140-CPU-434-12U, 140-CPU-651-60, and all standard Quantum CPUs
- Programming Software: Unity Pro (v2.0+), EcoStruxure Control Expert (v14.0+)
- Communication: Modbus, Modbus Plus, Ethernet (via CPU/NOE modules)
- Not compatible with: Modicon M340, M580, Premium, or Momentum platforms without hardware migration
Selection Guide
Use the following criteria to determine whether the 140-AVI-030-00 is the right module for your application:
- Channel count needed: If you need exactly 16 analog inputs, this module is optimal. For 8 channels, consider 140-AVI-030-00 with unused channels disabled.
- Signal type: Supports both voltage (±10 V, 0–10 V) and current (0–20 mA, 4–20 mA) — ideal for mixed-signal field devices
- Resolution requirement: 12-bit resolution suits most process control applications; for higher precision, evaluate 140-ARI-030-10 (16-bit)
- Platform: Only select this module if your rack is Modicon Quantum. For M580 migration projects, use BMXAMI equivalents
- Budget vs. OEM: Original OEM modules ensure full warranty and support; refurbished units from certified suppliers (like Konmask) offer cost savings with tested quality
Quality Assurance & Sourcing
At Konmask.com, every 140-AVI-030-00 unit undergoes:
- Visual and mechanical inspection upon receipt
- Functional power-on test and channel verification
- Firmware version check and documentation
- Anti-static packaging and secure international shipping
We source from authorized distributors, OEM overstock, and certified refurbishment channels. All units are backed by our 90-day replacement warranty.
How to Order
- Part Number: 140-AVI-030-00
- Availability: In stock — ships within 1–3 business days
- Minimum Order: 1 unit
- Bulk Pricing: Available for orders of 5+ units — contact us for a quote
- Payment: T/T, PayPal, credit card, and trade terms for verified B2B accounts
- Shipping: DHL, FedEx, UPS worldwide; EXW Xiamen available
To place an order or request a quote, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
- Q: Can I replace 140-AVI-030-00 with 140-AVI-030-00B?
- A: Yes. The “B” suffix denotes a hardware revision with identical electrical and software characteristics. It is a direct drop-in replacement.
- Q: Is this module compatible with Modicon M580?
- A: No. The 140-series is exclusive to the Quantum platform. M580 uses BMXAMI/BMEAMI series modules.
- Q: Can I mix voltage and current inputs on the same module?
- A: Yes. Each channel can be independently configured for voltage or current input via Unity Pro / EcoStruxure Control Expert software.
- Q: What is the lead time for new OEM units?
- A: New OEM units may have 8–20 week lead times from Schneider Electric. Konmask stocks tested units for immediate dispatch.
- Q: Do you provide a certificate of conformance?
- A: Yes. A test report and certificate of conformance are available upon request for all units.
