Schneider Electric ATS48C21Q – ATS48 Series 210A Soft Starter | Replacement, Equivalent & Selection Guide

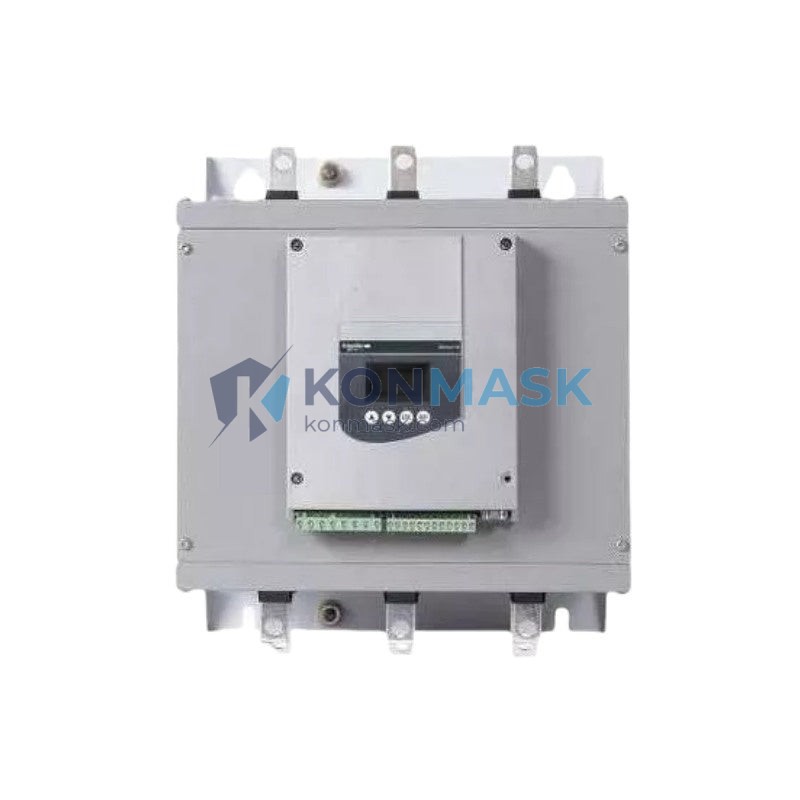

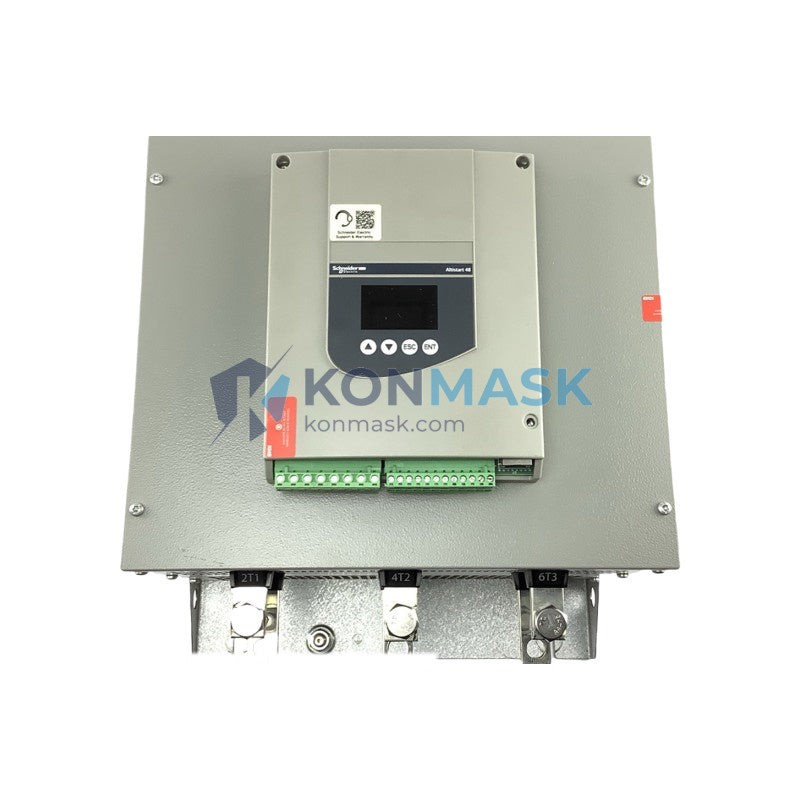

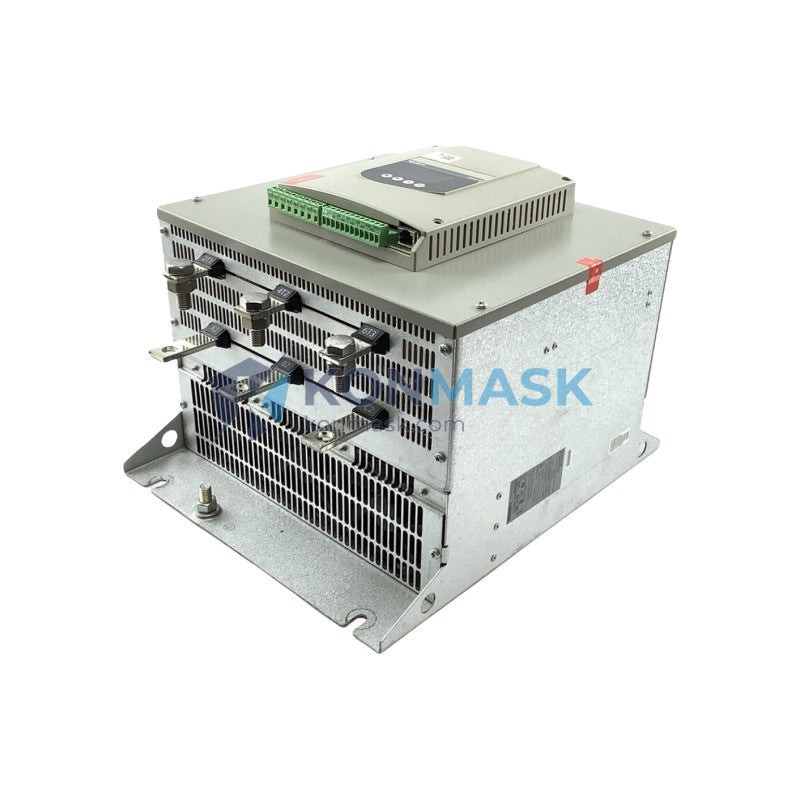

The Schneider Electric ATS48C21Q is a high-performance soft starter from the ATS48 Series, rated at 210 A for use with three-phase AC induction motors. Designed for demanding industrial environments, it delivers smooth motor acceleration and deceleration, protecting mechanical systems and reducing electrical stress on startup. Konmask.com supplies genuine ATS48C21Q units and verified compatible equivalents for global industrial buyers.
Technical Specifications
- Part Number: ATS48C21Q
- Series: ATS48
- Manufacturer: Schneider Electric
- Rated Current: 210 A
- Motor Power (400 V): 110 kW
- Motor Power (690 V): 160 kW
- Supply Voltage: 208–690 V AC, 3-phase, 50/60 Hz
- Control Voltage: 110–230 V AC
- Protection Class: IP20 (built-in), IP54 with optional enclosure
- Communication: Modbus RTU (optional CANopen, Profibus, DeviceNet)
- Bypass Contactor: Built-in (internal bypass)
- Torque Control: Yes – adjustable starting torque
- Braking: Soft braking function included
- Weight: 18.2 kg
- Standards: IEC 60947-4-2, UL 508, CE, RoHS
Compatible Replacement & Equivalent Models
If the ATS48C21Q is unavailable or you are evaluating alternatives, the following models offer equivalent or comparable functionality:
- Schneider ATS48C17Q – Same series, 170 A rated; suitable for slightly lower power applications
- Schneider ATS48C25Q – Same series, 250 A rated; next step up for higher load requirements
- ABB PSE210-600-70 – ABB PSE Series, 210 A, direct functional equivalent for most applications
- Siemens 3RW4455-6BC44 – Siemens SIRIUS 3RW44 Series, 200 A, comparable soft-start performance
- Eaton S811+N21N3S – Eaton S811+ Series, 210 A, compatible for standard motor control panels
- WEG SSW900 – WEG SSW900 Series, configurable up to 210 A, cost-effective alternative
Note: Always verify voltage, current rating, and communication protocol before substituting. Contact Konmask.com for cross-reference validation.
Why Choose the Original ATS48C21Q
- Factory-calibrated torque control for precise motor management
- Built-in bypass contactor reduces panel wiring complexity
- Proven reliability in heavy-duty industrial cycles (pumps, compressors, conveyors)
- Full Schneider Electric ecosystem integration (EcoStruxure, TeSys, Altivar)
- Comprehensive motor protection: overload, phase loss, thermistor input, locked rotor
- Firmware-upgradeable with Schneider SoMove software
Typical Applications
- Centrifugal pumps and water treatment systems
- Air compressors and HVAC fans
- Belt conveyors and material handling equipment
- Crushers, mixers, and agitators
- Oil & gas upstream and midstream motor control
- Marine and offshore auxiliary drives
System Compatibility
- PLC Integration: Compatible with Schneider Modicon M340, M580, Premium; Siemens S7-300/400/1200/1500 via Modbus RTU
- SCADA/DCS: Integrates with EcoStruxure Plant, Wonderware, Ignition via Modbus
- Fieldbus Options: CANopen (VW3A48301), Profibus DP (VW3A48303), DeviceNet (VW3A48304) – optional communication cards
- Bypass Contactor: Internal bypass; external contactor not required for standard duty
- Motor Types: Standard squirrel-cage induction motors, IEC frame
Selection Guide
Use the table below to select the correct ATS48 model for your motor:
- ATS48C11Q – 110 A / 55 kW @ 400 V
- ATS48C14Q – 140 A / 75 kW @ 400 V
- ATS48C17Q – 170 A / 90 kW @ 400 V
- ATS48C21Q – 210 A / 110 kW @ 400 V ← This Model
- ATS48C25Q – 250 A / 132 kW @ 400 V
- ATS48C32Q – 320 A / 160 kW @ 400 V
Selection tip: Choose a soft starter rated at ≥ 1.0× FLA of your motor. For high-inertia loads (crushers, centrifuges), select one size up.
Quality Assurance & Sourcing
- All units sourced from authorized Schneider Electric distribution channels or verified surplus stock
- Pre-shipment inspection: visual, label verification, and functional power-on test
- Anti-counterfeit verification available upon request (serial number trace)
- Packaging: original OEM box or industrial anti-static protective packaging
- Warranty: 12 months from shipment date
How to Order
- Part Number: ATS48C21Q
- Lead Time: In-stock items ship within 1–3 business days; ex-stock orders confirmed at inquiry
- MOQ: 1 unit
- Payment: T/T, PayPal, credit card (via Shopify Payments)
- Shipping: DHL, FedEx, UPS – worldwide delivery with tracking
- Custom Quantity / OEM Orders: Contact us for volume pricing
Replacement & Compatibility FAQ
Q: Can the ATS48C21Q replace an ATS22 series soft starter?
A: Not directly. The ATS22 and ATS48 use different mounting footprints and control wiring. A wiring adaptation is required. Contact us for a migration guide.
Q: Is the ATS48C21Q compatible with 690 V systems?
A: Yes. It supports supply voltages from 208 V to 690 V AC, making it suitable for both 400 V and 690 V motor systems.
Q: What is the difference between ATS48C21Q and ATS48C21Y?
A: The suffix Q denotes 380–415 V optimized rating; Y denotes 200–240 V. Verify your supply voltage before ordering.
Q: Can I use the ABB PSE210 as a drop-in replacement?
A: Functionally equivalent in most cases, but terminal layout and parameter configuration differ. Panel modifications may be needed.
Q: Does Konmask.com provide installation support?
A: Yes. We provide wiring diagrams, parameter setup guides, and remote technical support via email and WhatsApp.
