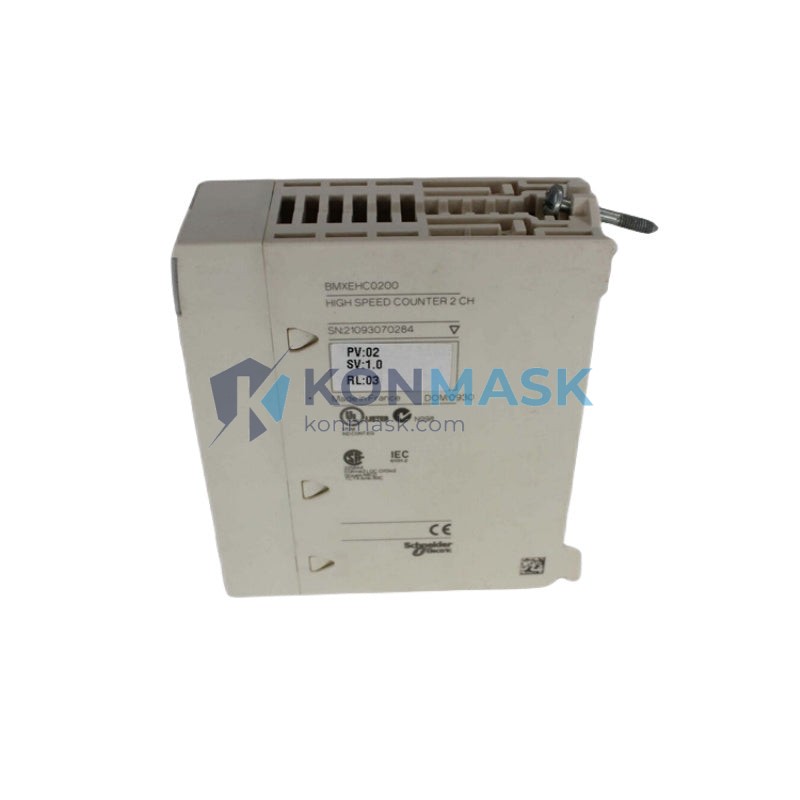

Genuine Schneider Electric BMXEHC0200 High-Speed Counter Module | Modicon M340 – Verified Source
The Schneider Electric BMXEHC0200 is a dedicated high-speed counter module designed for the Modicon M340 programmable logic controller platform. Sourced directly through verified industrial supply channels, Konmask.com provides B2B buyers with authentic, spec-compliant components backed by our rigorous quality assurance process.
Technical Specifications
- Part Number: BMXEHC0200
- Brand: Schneider Electric
- Series: Modicon M340
- Module Type: High-Speed Counter Module
- Number of Counter Channels: 2
- Maximum Counting Frequency: Up to 500 kHz per channel
- Input Voltage: 24 VDC
- Encoder Interface: Incremental encoder (A/B/Z signals)
- Operating Temperature: 0°C to +60°C
- Mounting: Modicon M340 backplane rack
- Weight: Approx. 1,000 g
- Compliance: CE, UL, IEC 61131-2
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from authorized Schneider Electric distributors or certified industrial surplus channels with full traceability documentation.
- Step 2 – Physical Inspection: Each module undergoes visual inspection for label integrity, housing condition, connector pin alignment, and counterfeit indicators.
- Step 3 – Functional Bench Test: Where applicable, modules are powered and tested against manufacturer datasheet parameters before dispatch.
- Step 4 – Secure Packaging & Documentation: Units ship with original or equivalent anti-static packaging, a packing list, and available certificates of conformity upon request.
Key Features & Benefits
- Dual-channel high-speed counting up to 500 kHz — ideal for precision motion and positioning applications
- Seamless integration with Modicon M340 rack architecture — no additional interface hardware required
- Supports incremental encoder inputs (A/B/Z) for accurate position feedback
- Configurable via Unity Pro / EcoStruxure Control Expert software
- Compact single-slot form factor maximizes rack space efficiency
- Robust industrial-grade design for demanding factory floor environments
Typical Applications
- CNC machine tool position feedback and spindle speed monitoring
- Conveyor belt speed control and product counting
- Packaging line cycle counting and batch management
- Rotary encoder position tracking in robotics and assembly systems
- Flow metering and pulse accumulation in process industries
Compatible System Components
- Rack / Backplane: BMX XBP 0400 / 0800 / 1200 (Modicon M340 racks)
- CPU Modules: BMXP341000 / BMXP342000 / BMXP342020 / BMXP3420302
- Power Supply: BMXCPS2000 / BMXCPS3500 / BMXCPS3020
- Programming Software: EcoStruxure Control Expert (formerly Unity Pro) v13.0+
- Communication Modules: BMXNOE0100 (Ethernet), BMXNOM0200 (Modbus Serial)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation component supplier serving B2B clients across Asia-Pacific, Europe, the Middle East, and the Americas. We maintain strategic inventory of Schneider Electric Modicon M340 series modules and offer:
- Express air freight (DHL / FedEx / UPS) — typical transit 3–7 business days worldwide
- Sea freight consolidation for large-volume orders
- Export documentation: commercial invoice, packing list, certificate of origin, and customs HS code support
- Minimum order: 1 unit | Volume pricing available for orders of 5+ units
Certifications & Compliance Statement
The BMXEHC0200 is manufactured by Schneider Electric in compliance with international industrial automation standards:
- CE Marking — European conformity for EMC and Low Voltage Directives
- UL Listed — Underwriters Laboratories certification for North American markets
- IEC 61131-2 — Programmable controllers equipment requirements
- RoHS Compliant — Restriction of Hazardous Substances Directive
Konmask.com does not manufacture or modify OEM products. All items are sold as genuine original equipment.
How to Order
- Confirm Part Number: Verify BMXEHC0200 matches your system BOM and Unity Pro project configuration.
- Request a Quote: Contact us at support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Submit Purchase Order: Provide your company name, shipping address, and required quantity. We accept T/T bank transfer, PayPal, and major credit cards.
- Receive & Verify: Inspect your shipment upon arrival. Our team provides post-sale technical support for integration queries.
Authenticity & Trust FAQ
Q: How do I know the BMXEHC0200 I receive is genuine?
A: Every unit passes our 4-step verification process. We provide sourcing documentation and can supply a certificate of conformity upon request. Schneider Electric part labels, holographic seals, and date codes are verified before shipment.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day functional warranty on all modules. If a unit fails under normal operating conditions, we will replace or refund at our discretion.
Q: Can you source other Modicon M340 modules?
A: Absolutely. Konmask.com stocks a broad range of Schneider Electric Modicon M340, M580, Quantum, and Premium series components. Contact us with your full BOM for a consolidated quote.
Q: What if I need technical support for installation?
A: Our engineering team can provide Unity Pro / EcoStruxure configuration guidance, wiring diagrams, and datasheet references to support your integration.
