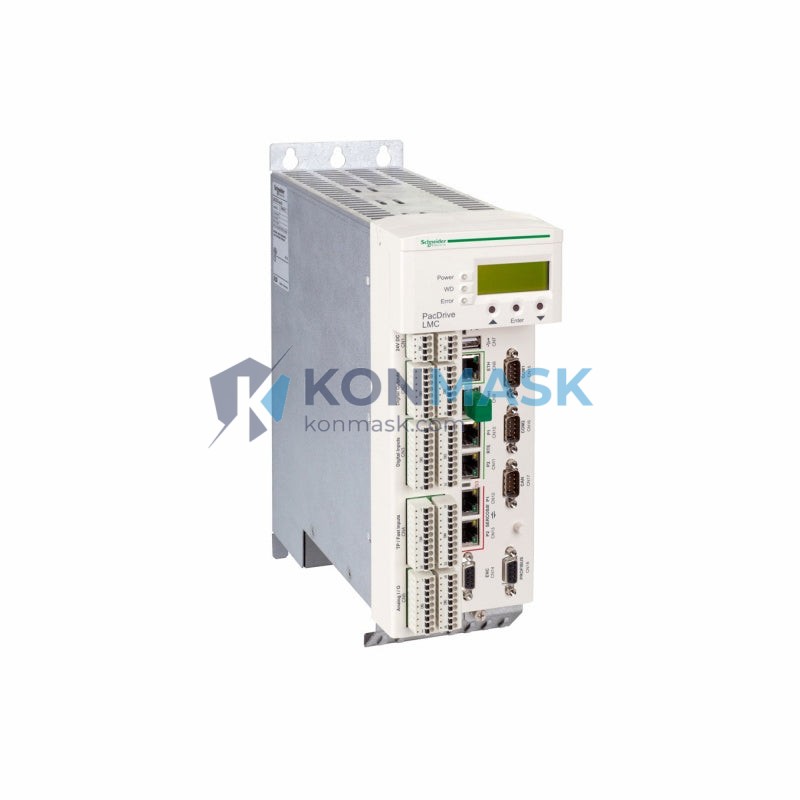

Schneider Electric LMC300CAA10100 Motion Controller | Replacement, Equivalent & Selection Guide
The Schneider Electric LMC300CAA10100 is a high-performance motion controller from the Lexium Motion Controller (LMC) series, designed for multi-axis coordinated motion in industrial automation systems. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | LMC300CAA10100 |
| Brand | Schneider Electric |
| Series | Lexium Motion Controller (LMC300) |
| Product Type | Motion Controller / PLC Module |
| Axes Supported | Up to 4 axes (expandable) |
| Communication | CANopen, Ethernet, USB |
| Programming Standard | IEC 61131-3 (SoMachine Motion) |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Protection Rating | IP20 |
| Country of Origin | France |
| Weight | 3,500 g (approx.) |
| Certifications | CE, UL, cUL |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the LMC300CAA10100. Always verify electrical and communication compatibility before substitution:
- LMC300CAA10000 – Same LMC300 series, earlier firmware revision; functionally equivalent in most applications
- LMC058LF42000 – Compact Lexium controller; suitable for lower-axis-count replacements
- LMC058LF28000 – Entry-level Lexium MC; compatible with SoMachine Motion software
- Siemens SIMOTION D410-2 – Cross-brand equivalent for multi-axis servo motion; requires re-engineering
- Beckhoff CX5130 – PC-based motion controller; TwinCAT 3 platform alternative
- Mitsubishi Q172DSCPU – Alternative for high-speed multi-axis applications
Note: Cross-brand replacements require full system re-validation. Contact Konmask.com for application-specific guidance.
Why Choose the Original Model
- Native SoMachine Motion integration – Zero re-programming overhead when replacing within the Schneider ecosystem
- Proven reliability – Validated for continuous industrial duty cycles in demanding environments
- Full OEM support – Firmware updates, diagnostics, and spare parts availability through Schneider Electric
- Seamless Lexium drive compatibility – Plug-and-play with LXM32, LXM28, and LXM05 servo drives
- IEC 61131-3 compliance – Standardized programming reduces engineering risk
Typical Applications
- Packaging machinery (pick-and-place, filling, sealing lines)
- Printing and converting equipment
- Textile and winding machines
- Semiconductor and electronics assembly
- Robotics and gantry systems
- Material handling and conveyor synchronization
System Compatibility
- Software: SoMachine Motion V4.x and above; compatible with EcoStruxure Machine Expert
- Drives: Lexium LXM32, LXM28, LXM05 series via CANopen or SercoS III
- I/O Expansion: TM5 and TM7 I/O modules via CANopen fieldbus
- HMI: Magelis HMIGTO / HMISCU series via Ethernet
- Network: Modbus TCP, CANopen, EtherNet/IP (with optional module)
Selection Guide
Use the criteria below to confirm the LMC300CAA10100 is the right choice for your application:
- Axis count: Requires coordinated control of 2–4 servo axes → LMC300 series recommended
- Existing ecosystem: Already using Schneider Lexium drives and SoMachine → LMC300CAA10100 is the direct fit
- Budget-sensitive replacement: Consider LMC058 series for single or dual-axis applications
- Cross-brand migration: Evaluate Siemens SIMOTION or Beckhoff CX series only if full re-engineering is feasible
- Legacy system repair: LMC300CAA10000 (prior revision) may be a drop-in substitute — confirm firmware version
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each module undergoes visual inspection and functional verification before shipment
- Original packaging and documentation preserved where available
- Traceability records maintained for B2B procurement compliance
- Warranty: 90-day replacement guarantee on all stocked units
How to Order
- Confirm part number: LMC300CAA10100
- Specify quantity and required delivery timeline
- Submit inquiry via [email protected] or add directly to cart
- Receive proforma invoice with lead time confirmation within 24 hours
- Payment via T/T, PayPal, or credit card; DHL / FedEx / UPS shipping available worldwide
Replacement & Compatibility FAQ
Q: Is LMC300CAA10000 a direct replacement for LMC300CAA10100?
A: In most cases yes — both are LMC300 series controllers. Verify firmware revision compatibility with your SoMachine Motion version before swapping.
Q: Can I use an LMC058 to replace the LMC300CAA10100?
A: Only for applications requiring 1–2 axes. The LMC300 supports up to 4 axes; the LMC058 is limited to fewer axes and has reduced I/O capacity.
Q: Does Konmask.com provide programming or commissioning support?
A: We provide hardware supply and basic technical documentation. For on-site commissioning, we can refer certified Schneider Electric system integrators.
Q: What is the lead time for LMC300CAA10100?
A: In-stock units ship within 3–5 business days. Out-of-stock orders typically have a 2–4 week lead time. Contact us for real-time availability.
Q: Are refurbished units available?
A: Yes. Refurbished units are clearly labeled, tested to OEM specifications, and offered at a reduced price with the same 90-day warranty.
