Siemens 6ES7321-1CH00-0AA0 – 16-Channel Digital Input Module | SIMATIC S7-300 Platform
Engineering Background
The SIMATIC S7-300 series represents Siemens’ mid-range programmable logic controller platform, engineered for demanding industrial automation environments. The SM 321 signal module family provides the critical I/O interface layer between field devices and the CPU, enabling reliable digital signal acquisition across diverse process applications.
Product Positioning

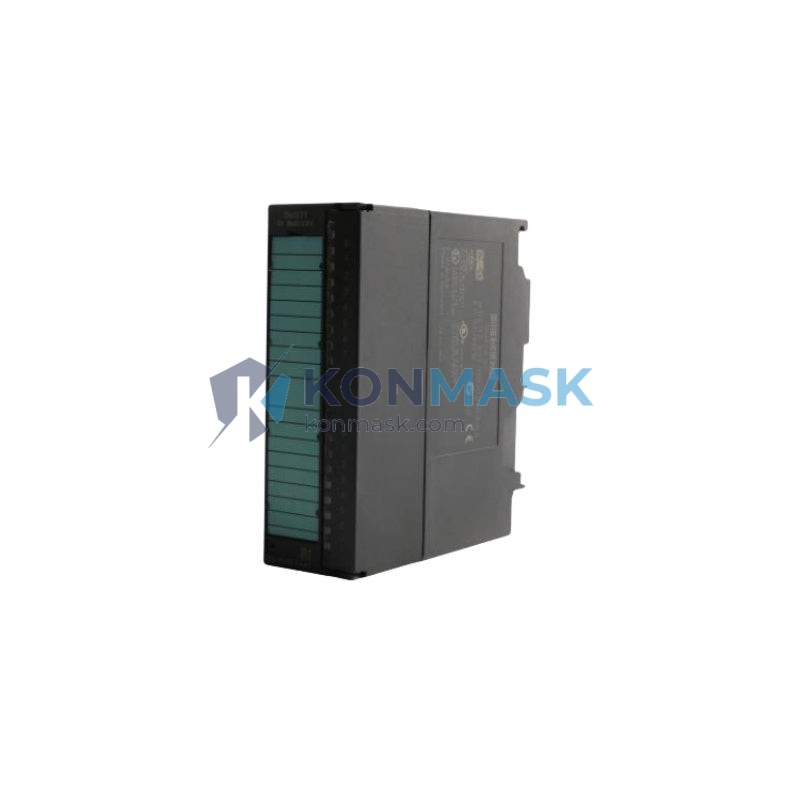

The 6ES7321-1CH00-0AA0 is a 16-channel 24 VDC digital input module designed for the S7-300 rack system. It is the preferred choice for procurement engineers requiring a compact, high-density input solution with proven field reliability in manufacturing, process, and infrastructure automation. Konmask supplies this module through verified distribution channels with full traceability documentation available on request.
Complete Technical Specifications
| Part Number | 6ES7321-1CH00-0AA0 |
| Module Type | SM 321 Digital Input Module |
| Platform | SIMATIC S7-300 |
| Number of Inputs | 16 × Digital Input (DI) |
| Input Voltage | 24 VDC |
| Input Current (per channel) | Approx. 7 mA at 24 VDC |
| Signal “1” Level | 13 V … 30 V |
| Signal “0” Level | -3 V … +5 V |
| Input Delay | Configurable: 0.1 ms / 0.5 ms / 3 ms / 15 ms / 20 ms |
| Isolation | Optocoupler isolation between field and backplane |
| Backplane Bus Current Consumption | Max. 50 mA at 5 VDC |
| Power Dissipation | Max. 4.5 W |
| Dimensions (W × H × D) | 40 mm × 125 mm × 120 mm |
| Weight | Approx. 500 g |
| Operating Temperature | 0 °C … +60 °C |
| Storage Temperature | -40 °C … +70 °C |
| Relative Humidity | 10 % … 95 % (non-condensing) |
| Degree of Protection | IP 20 |
| Country of Origin | Germany |
| HS Code | 853710 |
Proven Application Environments
- Discrete Manufacturing: Machine tool control, assembly line sequencing, conveyor interlocking
- Process Industry: Pump status monitoring, valve position feedback, level switch acquisition
- Building Automation: HVAC control panels, access control integration, fire alarm interfacing
- Energy & Utilities: Substation automation, generator control, switchgear monitoring
- Automotive: Body shop welding lines, paint shop conveyors, end-of-line test rigs
- Food & Beverage: Filling line control, CIP system monitoring, packaging machine I/O
- Water Treatment: Pump station control, flow switch monitoring, alarm acquisition
Engineering Advantages
- High Channel Density: 16 DI channels in a single 40 mm wide slot — maximises rack utilisation and reduces hardware cost per point
- Configurable Input Delay: Five selectable filter times (0.1 ms to 20 ms) allow optimisation for both high-speed sensing and noise-immune slow-signal applications
- Optocoupler Isolation: Full galvanic isolation between field wiring and backplane bus protects CPU from field-side transients and ground loops
- Plug-in Front Connector: 40-pin front connector with integrated cable strain relief; connector can be transferred to replacement module without rewiring
- Diagnostic LED Indication: Per-channel green LED provides instant visual status; module-level SF LED indicates fault condition
- STEP 7 / TIA Portal Compatible: Fully supported in both classic STEP 7 V5.x and TIA Portal engineering environments
- Hot-swap Capable: Module can be replaced under power in appropriate S7-300 configurations, minimising downtime
System Architecture & Signal Flow
The 6ES7321-1CH00-0AA0 mounts directly onto the S7-300 DIN rail rack and connects to the CPU via the integrated backplane bus connector. Field wiring terminates at the 40-pin front connector (order separately: 6ES7392-1AM00-0AA0 for screw terminals or 6ES7392-1BM01-0AA0 for spring-cage terminals).
Signal path: Field device → 24 VDC input terminal → Input filter (configurable delay) → Optocoupler isolation → Backplane bus → CPU process image input (PII) → STEP 7 / TIA Portal program
The module occupies one slot on the S7-300 rack. Up to 8 signal modules can be placed per rack segment (UR1/UR2 rack). For extended configurations, expansion racks (ER1/ER2) connected via IM 360/361 interface modules are supported.
Sourcing & Quality Verification
Konmask operates a structured 4-step verification process for all Siemens SIMATIC modules:
- Source Traceability: All units are sourced from authorised distributors or directly from Siemens-certified supply chains. Delivery documentation and certificates of conformity are retained on file.
- Physical Inspection: Each module undergoes visual inspection for label authenticity, housing integrity, connector condition, and correct firmware label markings consistent with genuine Siemens production standards.
- Functional Verification: Where applicable, modules are bench-tested for backplane communication and channel response prior to dispatch.
- Packaging & Serialisation Check: Original Siemens packaging, holographic labels, and serial number ranges are verified against known genuine product references.
Inspection records are available to qualified buyers upon request. We do not knowingly stock or sell counterfeit or refurbished-as-new product.
Procurement Process
- Enquiry: Submit your part number, required quantity, and delivery timeline via email to support@konmask.com or via the product page enquiry form.
- Quotation: We will respond within 1 business day with pricing, lead time, and available stock confirmation.
- Order Confirmation: Issue a purchase order or proceed via the Shopify checkout. Bank transfer (T/T), credit card, and PayPal are accepted.
- Dispatch & Tracking: Orders are dispatched via DHL Express, FedEx, or UPS with full tracking. Export documentation (commercial invoice, packing list, COO) is provided for customs clearance.
- After-sales Support: Our technical team is available for installation guidance, compatibility queries, and warranty claims.
Technical FAQ
Q: Is the 6ES7321-1CH00-0AA0 compatible with S7-300 CPUs such as the 315-2DP or 317-2DP?
A: Yes. The SM 321 is compatible with all standard S7-300 CPUs. It is configured via the hardware configuration tool in STEP 7 or TIA Portal and appears in the hardware catalogue under SM 321.
Q: What front connector is required?
A: The module requires a 40-pin front connector. Recommended options: 6ES7392-1AM00-0AA0 (screw-type) or 6ES7392-1BM01-0AA0 (spring-cage). These are ordered separately.
Q: Can this module be used with S7-400 or S7-1500?
A: No. The SM 321 is designed exclusively for the S7-300 rack system and is not mechanically or electrically compatible with S7-400 or S7-1500 platforms.
Q: What is the input filter delay and how is it configured?
A: The input delay is configurable in STEP 7 / TIA Portal hardware configuration: 0.1 ms, 0.5 ms, 3 ms (default), 15 ms, or 20 ms. Shorter delays suit high-speed sensors; longer delays improve noise immunity for slow-switching field devices.
Q: Do you provide a warranty?
A: Yes. We offer a 12-month warranty against manufacturing defects on all genuine modules. Warranty claims are handled directly by our technical support team.
Q: Can you supply in quantity for MRO or project requirements?
A: Yes. We support both single-unit MRO purchases and bulk project orders. Contact us for volume pricing and scheduled delivery arrangements.
