SIEMENS 6FX2007-1AD13 SINUMERIK Mini Handheld Unit | Replacement, Equivalent & Selection Guide

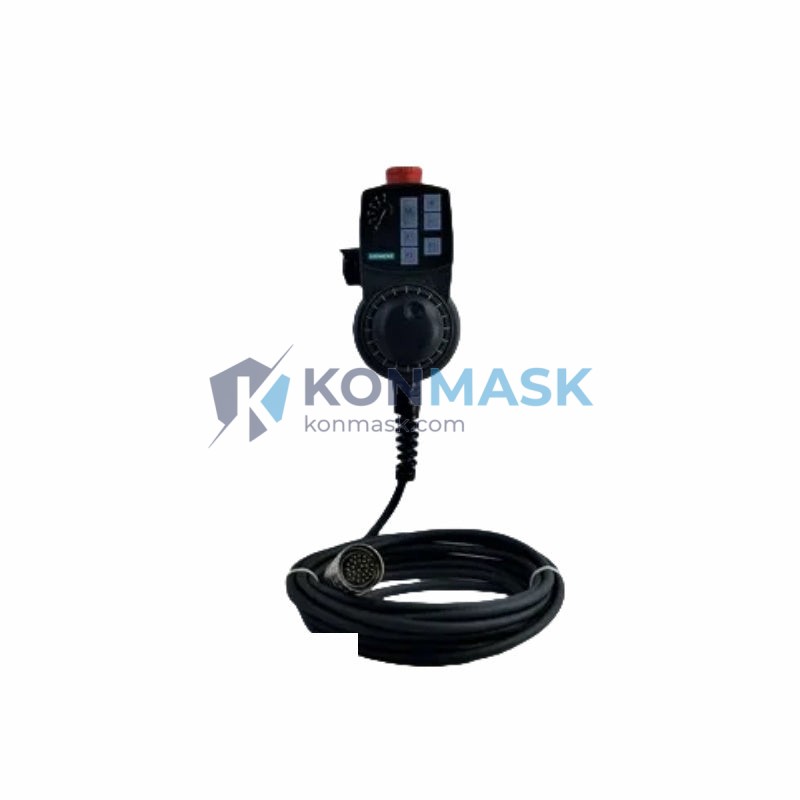

The SIEMENS 6FX2007-1AD13 (also referenced as PHA-6FX2007-1AD13) is a SINUMERIK Mini Handheld Unit with straight cable, designed for manual machine control, setup, and jogging operations in CNC machining environments. Konmask.com supplies genuine and compatible units with full traceability for B2B industrial buyers worldwide.
Technical Specifications
- Part Number: 6FX2007-1AD13 / PHA-6FX2007-1AD13
- Brand: SIEMENS
- Series: SINUMERIK
- Type: Mini Handheld Unit (HHU)
- Cable Type: Straight Cable
- Interface: Compatible with SINUMERIK 840D / 840Di / 810D CNC systems
- Functions: Emergency stop, override switch, axis selection, direction keys, enable button
- Protection Rating: IP65 (front panel)
- Weight: Approx. 13.6 kg (packaged)
- Origin: Germany / EU
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 6FX2007-1AD13:
- 6FX2007-1AD03 — Earlier revision, coiled cable variant; functionally equivalent for most 840D applications
- 6FX2007-1AD23 — Extended cable length variant; drop-in replacement in larger machine enclosures
- 6FX2007-1AD33 — Upgraded model with additional axis keys; verify firmware compatibility before substitution
- 6FC5403-0AA20-0AA0 — SINUMERIK OP 08T handheld; alternative for panel-mount HMI setups
- Third-party compatible HHUs — Available; confirm connector pinout and enable-button logic before installation
Always verify the CNC system firmware version and cable connector type before ordering a replacement.
Why Choose the Original 6FX2007-1AD13
- Factory-validated compatibility with SINUMERIK 840D sl / 840Di sl / 810D
- Certified emergency-stop circuit meeting EN ISO 13850 safety requirements
- Plug-and-play integration — no additional configuration required
- Full SIEMENS warranty and traceable serial number for audit compliance
- Long-term spare parts availability through authorized distribution channels
Typical Applications
- CNC machining centers and turning centers (setup & jogging mode)
- Milling machines with SINUMERIK 840D control
- Grinding and EDM machines requiring portable operator panels
- Automotive and aerospace precision manufacturing lines
- Machine tool OEM integration and retrofit projects
System Compatibility
| CNC System | Compatible | Notes |
|---|---|---|
| SINUMERIK 840D sl | ✅ Yes | Primary target system |
| SINUMERIK 840Di sl | ✅ Yes | Verify NCU firmware ≥ V4.5 |
| SINUMERIK 810D | ✅ Yes | Legacy systems; check cable adapter |
| SINUMERIK 828D | ⚠️ Partial | Adapter required; consult Konmask |
| FANUC / Mitsubishi CNC | ❌ No | Not compatible — different protocol |
Selection Guide
Use the following criteria to confirm the correct handheld unit for your application:
- Step 1 — Identify your CNC system: Confirm the SINUMERIK model and NCU firmware version from the machine nameplate or system info screen.
- Step 2 — Check cable requirement: Straight cable (1AD13) vs. coiled cable (1AD03) — choose based on operator reach and machine layout.
- Step 3 — Verify connector type: Confirm the HHU port connector on the NCU or MCP panel (12-pin circular vs. sub-D).
- Step 4 — Confirm safety category: Ensure the enable button meets your machine’s safety integrity level (SIL/PLd).
- Step 5 — Contact Konmask: Send your machine model and current part number for a free compatibility check before ordering.
Quality Assurance & Sourcing
- All units sourced from authorized SIEMENS distributors or verified surplus channels
- Pre-shipment inspection: visual check, connector integrity, and enable-button function test
- Traceable documentation available: COC, test report, and packing list on request
- Packaging: anti-static bag + foam-lined carton for safe international shipping
- Lead time: in-stock units ship within 1–3 business days; sourced units 5–15 business days
How to Order
- Add the 6FX2007-1AD13 to your cart and proceed to checkout, or
- Contact us directly for bulk orders, custom lead times, or compatibility verification:
- 📧 Email: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
We respond to all B2B inquiries within 24 hours (business days, UTC+8).
Replacement & Compatibility FAQ
Q: Can the 6FX2007-1AD03 replace the 6FX2007-1AD13 directly?
A: Yes, in most cases. The primary difference is cable style (coiled vs. straight). Electrical and functional specifications are identical. Confirm cable length meets your machine layout requirements.
Q: Is this unit compatible with SINUMERIK 828D?
A: Partial compatibility only. An adapter cable is typically required. Contact Konmask for a compatibility assessment before ordering.
Q: Do you supply refurbished units?
A: We supply both new and professionally refurbished units. Refurbished units are clearly labeled and come with a 90-day functional warranty. New units carry full SIEMENS warranty.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your order number or inquiry reference and we will provide available technical documentation.
Q: What is the lead time for out-of-stock units?
A: Typically 5–15 business days depending on sourcing. We will confirm lead time at the time of inquiry.
