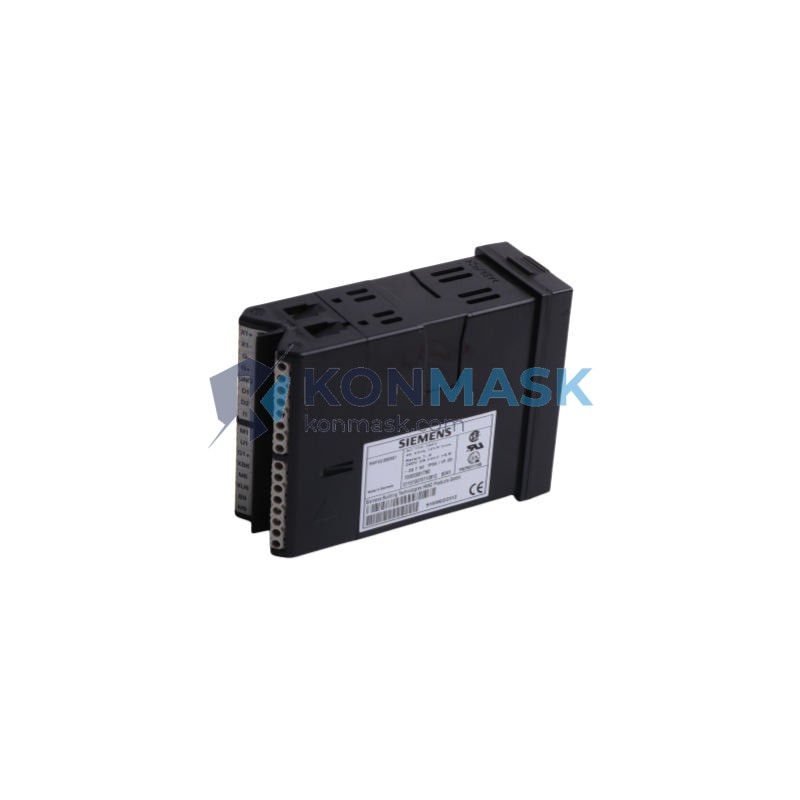

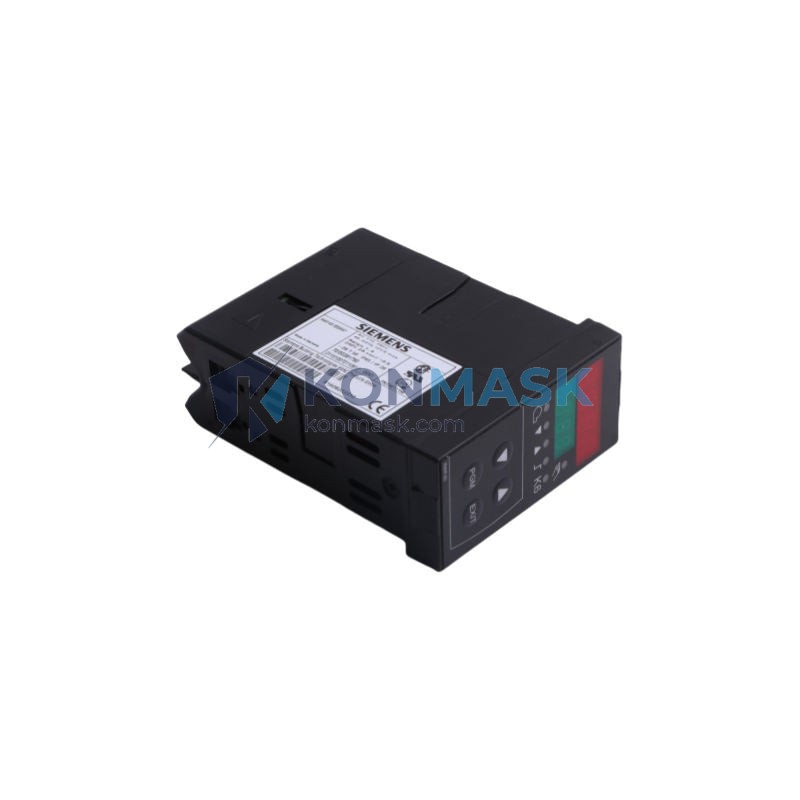

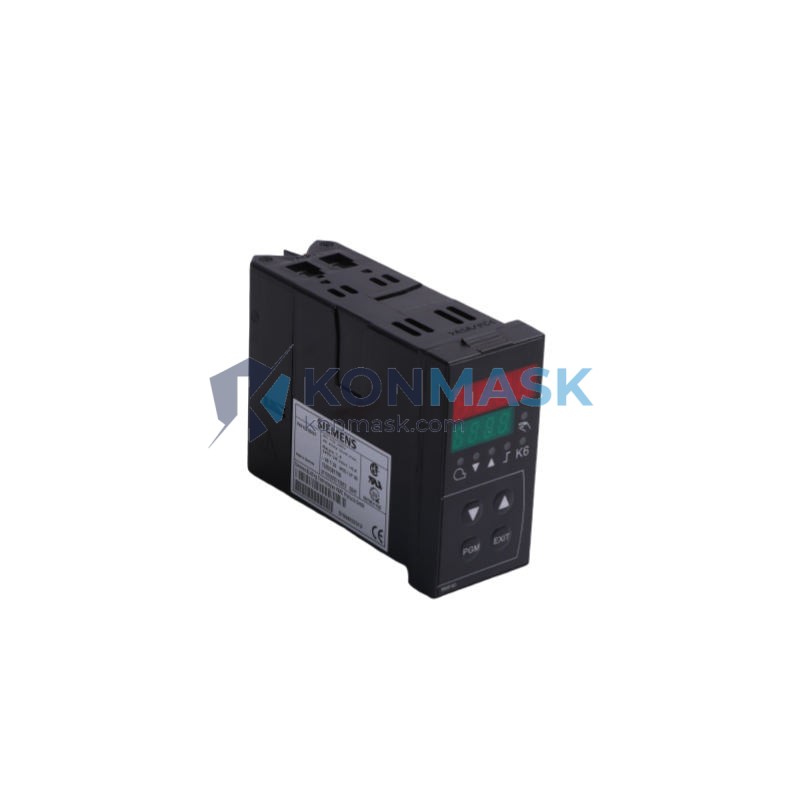

SIEMENS RWF40.000A97 Compact Universal Controller | Replacement, Equivalent & Selection Guide
The SIEMENS RWF40.000A97 is a compact universal controller designed for burner and boiler automation systems. It provides precise temperature and pressure control with flexible configuration options, making it a trusted choice for industrial heating applications worldwide. This page serves as a comprehensive selection guide to help engineers identify compatible replacements, equivalent models, and system integration options.
Technical Specifications
- Model / SKU: RWF40.000A97
- Brand: SIEMENS (Building Technologies / Combustion)
- Series: RWF40
- Type: Compact Universal Controller
- Function: Temperature & pressure control for burner/boiler systems
- Supply Voltage: AC 100–240 V, 50/60 Hz
- Power Consumption: ≤ 6 VA
- Sensor Input: Pt100, Pt1000, NTC, 0–10 V, 4–20 mA
- Output: Relay output, modulating output (optional)
- Display: 4-digit LED display
- Protection Class: IP40 (front panel)
- Ambient Temperature: 0 °C to +60 °C (operation)
- Weight: 320 g
- Dimensions: 96 × 96 × 110 mm (W × H × D)
- Mounting: Panel mount, DIN rail compatible
- Certifications: CE, UL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the RWF40.000A97. Always verify electrical and functional compatibility before substitution.
- SIEMENS RWF40.001A97 — Same series, minor firmware variant; direct functional equivalent in most applications
- SIEMENS RWF55.50A1 — Upgraded series with extended I/O; suitable when additional sensor inputs are required
- SIEMENS RWF55.51A1 — Modulating burner variant; recommended for modulating burner upgrade projects
- JUMO dTRON 316 — Third-party equivalent; compatible input/output range, requires parameter remapping
- WEST P6100 — Alternative universal controller; verify relay output ratings before use
- OMRON E5CC-RX2ASM-800 — Cross-brand equivalent for temperature control; confirm sensor type compatibility
Note: Konmask.com recommends using original SIEMENS parts for safety-critical burner and boiler applications. Third-party equivalents should be validated by a qualified engineer.
Why Choose the Original Model
- ✅ Factory-calibrated for SIEMENS burner management systems (LME, LGB, LGK series)
- ✅ Proven reliability in industrial heating and combustion environments
- ✅ Full CE & UL certification for global compliance
- ✅ Seamless integration with SIEMENS BACnet/LON building automation networks
- ✅ Manufacturer warranty and long-term spare parts availability
- ✅ Consistent parameter behavior — no re-commissioning risk vs. third-party substitutes
Typical Applications
- Industrial boiler temperature and pressure control
- Burner management and modulation in heating plants
- Hot water and steam generation systems
- HVAC plant rooms and district heating substations
- Food processing and pharmaceutical heating processes
- OEM integration in packaged burner/boiler units
System Compatibility
The RWF40.000A97 is designed to integrate with the following SIEMENS product families:
- Burner Controllers: LME21, LME22, LME71, LGB21, LGB22, LGK16
- Actuators: SQM10, SQM40, SQM48 series
- Sensors: QAE2120, QAE2174 immersion sensors; QBE2002 pressure sensors
- Building Automation: Compatible with DESIGO CC via BACnet MS/TP
- Power Supply: AC 100–240 V universal input — no external transformer required in most installations
Selection Guide
Use the criteria below to confirm the RWF40.000A97 is the correct model for your application:
- Control type needed: Single-loop temperature or pressure → RWF40 ✅ | Dual-loop or cascade → consider RWF55 series
- Sensor type: Pt100 / Pt1000 / NTC / 0–10 V / 4–20 mA → RWF40.000A97 ✅
- Output requirement: On/off or 3-point stepping → RWF40.000A97 ✅ | Continuous modulating (0–10 V) → verify suffix variant
- Supply voltage: AC 100–240 V → RWF40.000A97 ✅ | DC 24 V → select RWF40.002 variant
- Panel cutout: 92 × 92 mm standard → RWF40 ✅
- Communication: Standalone (no bus) → RWF40.000A97 ✅ | LON/BACnet required → RWF55 + AZL module
Quality Assurance & Sourcing
- 🔒 All units sourced from authorized distributors or verified surplus channels
- 🔒 Each unit inspected for physical integrity, label authenticity, and firmware version prior to dispatch
- 🔒 Original manufacturer packaging preserved where available
- 🔒 Traceability documentation available on request (batch records, COO certificates)
- 🔒 12-month warranty on all stocked units sold through Konmask.com
How to Order
- Confirm your model number: RWF40.000A97
- Verify quantity and lead time requirements with our team
- Add to cart or contact us for bulk pricing and freight options
- Provide your shipping address — we ship globally from our warehouse
- Receive order confirmation with tracking within 24 hours of payment
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I replace RWF40.000A97 with RWF40.001A97?
A: In most cases yes — both share the same hardware platform. Verify parameter settings after swap as firmware defaults may differ slightly.
Q: Is the RWF55 series a drop-in replacement?
A: No. The RWF55 has a different form factor and extended I/O. It requires re-wiring and re-commissioning but offers enhanced functionality.
Q: Does Konmask.com supply new or refurbished units?
A: We supply both new and tested-surplus units. Condition is clearly stated on each listing. Contact us if you need new-in-box only.
Q: What is the lead time for RWF40.000A97?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 2–4 weeks depending on sourcing channel.
Q: Can this controller be used outside of SIEMENS burner systems?
A: Yes — the RWF40 is a universal controller and can be configured for any temperature/pressure control loop with compatible sensors and outputs.
