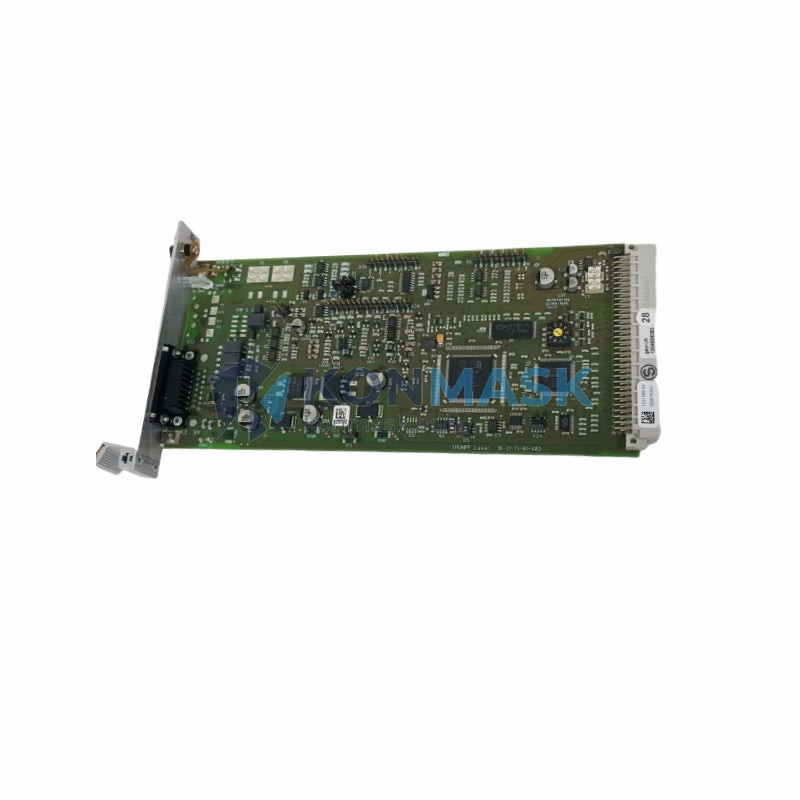

TRUMPF 1309047-18-21-71-00 PLC Interface Control Board – Laser Machine Signal Interface | TRUMPF TruLaser / TruMatic Platform
Engineering Background: The TRUMPF 1309047-18-21-71-00 is an OEM-specified PLC Interface Control Board designed for integration within TRUMPF laser cutting and punching systems. It serves as the critical signal bridge between the machine’s programmable logic controller (PLC) and peripheral I/O subsystems, ensuring deterministic, low-latency command execution in high-cycle industrial environments.
Product Positioning: Sourced directly from verified TRUMPF supply channels, this board is the preferred replacement and spare part for maintenance engineers managing TruLaser and TruMatic series machines. It eliminates compatibility risk associated with third-party alternatives and maintains full OEM signal integrity.
Complete Technical Specifications
- Part Number (SKU): 1309047-18-21-71-00
- Manufacturer: TRUMPF GmbH + Co. KG
- Country of Origin: Germany (DE)
- Module Type: PLC Interface Control Board
- Platform Compatibility: TRUMPF TruLaser / TruMatic Series
- Weight: 750 g
- Mounting: DIN rail / panel-mount (OEM specification)
- Signal Type: Digital I/O interface, PLC bus-compatible
- Operating Environment: Industrial control cabinet, EMC-shielded enclosure
- Condition: New / Refurbished OEM (specify at inquiry)
Proven Application Environments
- TRUMPF TruLaser 3030 / 5030 / 7040 laser cutting systems
- TRUMPF TruMatic 6000 / 7000 punch-laser combination machines
- Sheet metal fabrication lines requiring high-speed PLC signal routing
- Automotive stamping and aerospace component manufacturing cells
- Preventive maintenance programs for TRUMPF installed base
Engineering Advantages
- OEM Authenticity: Manufactured to TRUMPF factory specifications — no signal degradation or firmware mismatch risk
- Drop-in Replacement: Direct swap with no re-parameterization required in standard configurations
- EMC Compliance: Designed for industrial cabinet environments with full electromagnetic compatibility
- Long Service Life: Industrial-grade components rated for continuous duty cycles
- Traceability: Full part number traceability to TRUMPF BOM and service documentation
System Architecture & Signal Flow
The 1309047-18-21-71-00 board interfaces directly with the TRUMPF machine’s central PLC backplane. Input signals from sensors, safety relays, and operator panels are conditioned and routed through the board’s I/O logic layer before being passed to the PLC CPU module. Output commands from the PLC are similarly buffered and distributed to actuators, servo drives, and laser source control circuits. This architecture ensures deterministic cycle times and protects the PLC CPU from transient electrical events on the machine floor.
Sourcing & Quality Verification
- All units are inspected upon receipt against TRUMPF part number and revision markings
- Functional bench-test available on request prior to shipment
- Packaging: anti-static ESD bag + foam-lined carton, compliant with IEC 61340-5-1
- Documentation: Certificate of conformity and packing list included
- Lead time: In-stock units ship within 2 business days; sourced units 7–21 days
Procurement Process
- Submit your machine serial number and current board revision via [email protected] for compatibility confirmation
- Receive a formal quotation with unit price, lead time, and shipping options
- Place order via this product page or via purchase order (B2B invoicing available)
- Receive tracking number and export documentation within 24 hours of payment
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is this board compatible with all TRUMPF machine generations?
A: The 1309047-18-21-71-00 is specified for TruLaser and TruMatic platforms. Please provide your machine model and serial number for exact compatibility verification.
Q: Can this board be reprogrammed or does it require factory initialization?
A: In standard replacement scenarios, the board operates with existing machine parameters. Factory initialization is only required if the PLC configuration has been modified.
Q: Do you offer exchange / core return programs?
A: Yes. Contact us to discuss exchange pricing if you have a defective unit to return.
Q: What warranty is provided?
A: New OEM units carry the standard TRUMPF warranty. Refurbished units carry a 90-day Konmask functional warranty.
Q: Can you provide export documentation for customs clearance?
A: Yes. Commercial invoice, packing list, and certificate of origin are provided with every international shipment.
