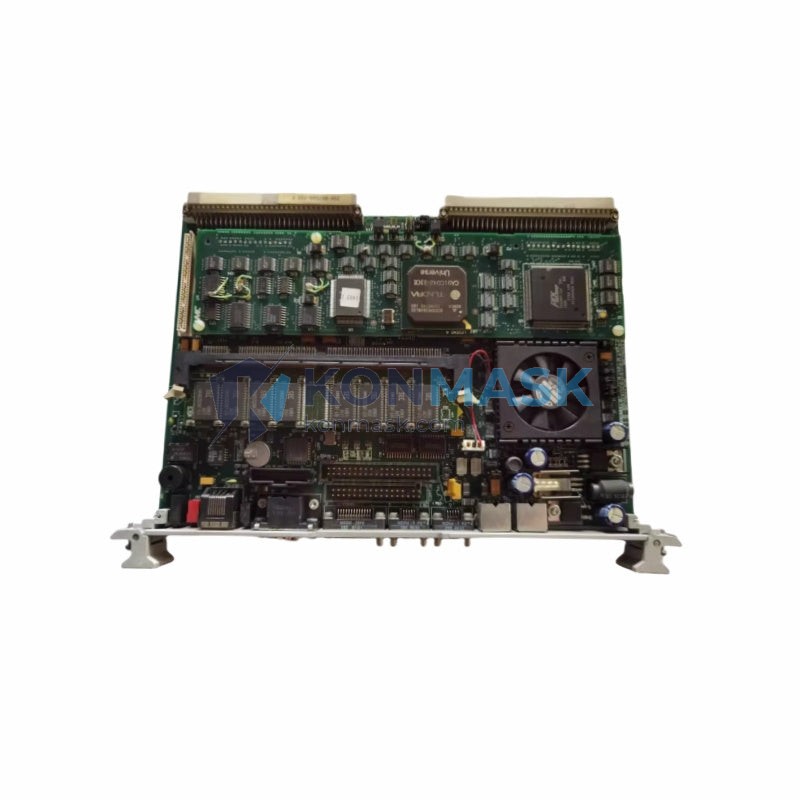

VMIC R91133022C7 SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW – Servo Drive Control Board | SH01 Series Platform
Engineering Background
The VMIC SH01 series represents a high-performance servo drive control architecture engineered for precision motion control in demanding industrial environments. The R91133022C7 revision designates a specific firmware and hardware configuration optimized for encoder-based servo feedback loops, making it a critical component in multi-axis CNC, robotics, and automated assembly lines.
Product Positioning
This control board serves as the intelligence core of the SH01.1C servo drive platform. It manages real-time signal processing between the drive’s power stage and the motion controller, handling encoder feedback (EN1), safety logic (SE), and network communication (ENS). Procurement engineers sourcing replacement or spare units will find this board a direct OEM-equivalent solution, fully compatible with existing SH01.1C drive chassis without firmware re-flashing in most configurations.
Complete Technical Specifications
| Manufacturer | VMIC |
| Part Number / SKU | R91133022C7 |
| Full Model String | SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW |
| Series / Platform | SH01 Series Servo Drive |
| Component Type | Servo Drive Control Board (PCB Assembly) |
| Feedback Interface | EN1 – Incremental Encoder Input |
| Safety Function | SE – Safe Torque Off (STO) compatible |
| Communication | ENS – EtherNet/IP or SERCOS III (model-dependent) |
| Drive Size Class | S2 (compact frame) |
| Firmware Variant | FW – Factory firmware pre-loaded |
| Approximate Weight | 700 g |
| Condition | New / Refurbished OEM (specify at inquiry) |
| Country of Origin | Available upon request |
| HS Code Reference | 8537.10 (Control boards for industrial drives) |
Proven Application Environments
- CNC Machining Centers – Multi-axis servo coordination requiring high-resolution encoder feedback and deterministic cycle times
- Industrial Robotics – Joint-level servo control in articulated arm robots where STO safety functions are mandatory
- Automated Assembly Lines – Pick-and-place and conveyor indexing systems with EtherNet/IP network integration
- Injection Molding Machines – Closed-loop pressure and position control on hydraulic servo axes
- Semiconductor Fab Equipment – Ultra-precision positioning stages requiring low-noise encoder signal processing
- Packaging Machinery – High-speed cam-profile motion with real-time network synchronization
Engineering Advantages
- Direct OEM Replacement – R91133022C7 revision matches original factory BOM; no drive chassis modification required
- Pre-loaded Firmware – FW suffix confirms factory firmware is installed; reduces commissioning time on replacement
- Integrated Safety Architecture – SE (STO) function onboard eliminates need for external safety relay in many SIL 2 applications
- Dual-port Network Capability – ENS interface supports daisy-chain topology, reducing cabinet wiring complexity
- Compact S2 Frame – Optimized PCB layout for high-density drive cabinets with restricted mounting depth
- Verified Compatibility – Tested against SH01.1C drive chassis before shipment
System Architecture & Signal Flow
The SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW control board operates as the central processing node within the SH01 drive architecture:
- Motion Controller → ENS Port: Real-time cyclic commands (position/velocity/torque setpoints) arrive via EtherNet/IP or SERCOS III fieldbus at deterministic intervals (typically 250 µs – 4 ms cycle time).
- Control Board DSP: Onboard digital signal processor executes the current control loop, space-vector PWM generation, and encoder interpolation simultaneously.
- EN1 Encoder Feedback: Incremental encoder signals (A/B/Z channels) are received, filtered, and fed back into the position/velocity loop at high resolution.
- SE Safety Channel: Independent STO logic monitors enable signals; any safety event immediately disables PWM output without requiring the main CPU.
- Power Stage Interface: Gate drive signals are output to the IGBT power module via isolated interface, maintaining galvanic separation between control and power circuits.
Sourcing & Quality Verification
Konmask.com operates as a specialist distributor of industrial automation components with a focus on verified OEM and aftermarket parts for servo drive systems. Every unit of the VMIC R91133022C7 SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW undergoes the following before dispatch:
- Visual inspection for PCB damage, cold solder joints, and component integrity
- Part number and revision label cross-check against VMIC documentation
- Functional bench test on compatible SH01.1C chassis where applicable
- Anti-static packaging with humidity indicator card
- Serialized shipment documentation for traceability
Procurement Process
- Confirm Compatibility – Provide your existing drive chassis model and firmware version to our technical team for cross-reference verification.
- Request a Quote – Contact us via email or phone with your required quantity and delivery timeline.
- Order Confirmation – Receive a formal proforma invoice with lead time, shipping terms (EXW/FOB Xiamen), and payment options.
- Quality Hold Option – Request pre-shipment inspection report or third-party QC for orders above 5 units.
- Shipping & Tracking – DHL / FedEx express with full tracking; customs documentation provided for all international shipments.
Technical FAQ
Q: Is the R91133022C7 revision backward compatible with earlier SH01.1C chassis?
A: In most cases yes, however firmware version alignment between the control board and drive chassis is recommended. Contact our technical team with your chassis serial number for confirmation.
Q: Does this board support SERCOS III or only EtherNet/IP?
A: The ENS suffix supports both protocols depending on the drive’s firmware configuration. The FW pre-load on this unit is factory-default; protocol selection is made during drive commissioning via parameter settings.
Q: Can I use this board in a SH01.2C or SH02 chassis?
A: No. This board is designed specifically for the SH01.1C chassis. Cross-series installation is not supported and may cause irreversible damage.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For out-of-stock scenarios, typical lead time is 4–8 weeks depending on sourcing channel. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty options are available for volume orders. Terms are specified in the sales contract.
