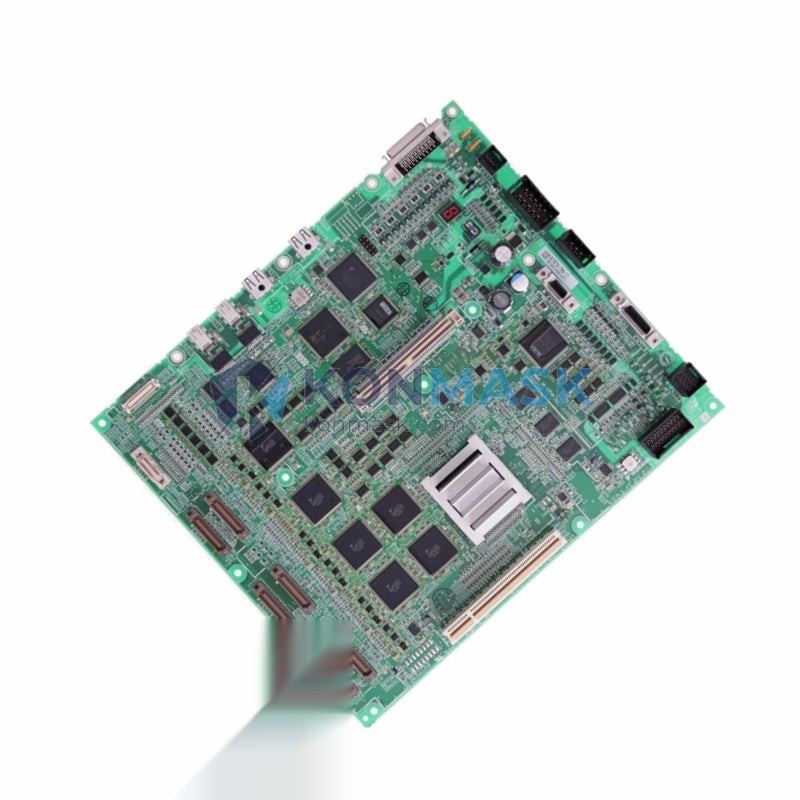

Yaskawa JANCD-YCP21-E – CPU Control Board | DX200 Robot Controller Platform
Engineering Background: The JANCD-YCP21-E is the central processing unit board of the Yaskawa DX200 robot controller — the flagship multi-robot, multi-axis control platform used in automotive, electronics, and precision manufacturing worldwide. This board governs real-time motion planning, I/O arbitration, safety logic, and inter-board communication across the entire DX200 cabinet architecture.
Product Positioning: Designed for maintenance engineers and procurement teams requiring a verified OEM-equivalent replacement for failed or end-of-life CPU boards. Konmask.com supplies this unit with full traceability, pre-shipment functional verification, and engineering support — minimizing unplanned downtime on production lines.
Complete Technical Specifications
- Part Number: JANCD-YCP21-E
- Compatible Controller: Yaskawa DX200
- Board Function: Main CPU / Central Control Board
- Manufacturer: Yaskawa Electric Corporation
- Country of Origin: Japan
- Form Factor: PCB module, DX200 cabinet slot-mount
- Weight: 560 g (approx.)
- Communication Interfaces: Internal DX200 backplane bus; Ethernet (YCP21-E variant)
- Supported Axes: Up to 8 axes (DX200 platform dependent)
- Multi-Robot Support: Yes — up to 8 robots / 72 axes (system-level)
- Operating Temperature: 0 °C to 45 °C
- Humidity: 10–90% RH, non-condensing
- Firmware Compatibility: DX200 system software (consult revision before ordering)
Proven Application Environments
- Automotive body welding and assembly lines (spot welding, arc welding)
- Electronics PCB handling and precision pick-and-place
- Palletizing, packaging, and material handling cells
- Painting and coating booths with DX200-controlled Motoman robots
- Collaborative multi-robot workcells requiring synchronized motion
- Semiconductor wafer handling and cleanroom automation
Engineering Advantages
- Real-Time Motion Control: Dedicated CPU architecture ensures deterministic cycle times for high-speed, multi-axis coordination
- Integrated Safety Logic: Onboard functional safety processing compliant with DX200 FSU (Functional Safety Unit) architecture
- Ethernet-Enabled (YCP21-E): Supports EtherNet/IP and proprietary Yaskawa network protocols for seamless SCADA/PLC integration
- Hot-Swap Ready: Designed for field replacement without full cabinet disassembly — reduces MTTR significantly
- OEM-Grade Components: All units sourced from authorized distribution channels or verified OEM surplus with full BOM traceability
System Architecture & Signal Flow
Within the DX200 cabinet, the JANCD-YCP21-E occupies the CPU slot of the control rack. It interfaces with:
- JANCD-YIF01-E — Interface board (I/O and fieldbus gateway)
- JANCD-YSF21-E — Safety board (FSU)
- JANCD-YEW01-E / YEW02-E — Servo control boards (axis drives)
- Teach Pendant (DX200 HPP) — via dedicated serial/USB link through YIF board
The CPU board executes the INFORM III motion language interpreter, manages job scheduling, and synchronizes all servo and I/O events at the system scan rate (typically 1 ms interpolation cycle).
Sourcing & Quality Verification
- All units undergo visual inspection, connector integrity check, and power-on functional test prior to shipment
- Sourced from OEM-authorized channels, verified surplus, or factory-refurbished stock
- Each unit ships with an inspection report and serial number documentation
- Anti-static packaging (ESD bag + foam insert) standard on all orders
- 12-month warranty against manufacturing defects
Procurement Process
- Confirm your DX200 controller serial number and current firmware revision
- Verify JANCD-YCP21-E compatibility with your specific DX200 cabinet configuration
- Place order via Konmask.com — stock availability confirmed at checkout
- Receive ESD-safe shipment with inspection certificate within 3–7 business days (international DHL/FedEx)
- Contact our engineering team for installation guidance or firmware alignment support
Technical FAQ
Q: Is JANCD-YCP21-E compatible with all DX200 variants?
A: It is compatible with standard DX200 controllers. Certain specialized variants (e.g., DX200 for painting or FSU-enhanced cells) may require specific firmware. Please confirm your cabinet model before ordering.
Q: Can this board be used as a direct replacement without re-teaching robot programs?
A: Yes, provided the replacement board is loaded with the same system software version and job files are backed up and restored via the DX200 maintenance menu. Our team can advise on the backup/restore procedure.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for sourced units is 2–4 weeks. Contact support@konmask.com for urgent requirements.
Q: Do you provide installation support?
A: Yes. Pre- and post-installation technical support is available via email and phone for all orders.
