Industrial Motion Control Solution – Yaskawa SRDA-SDA71A01A-1 | Sigma-III Series
Where This Product Is Used

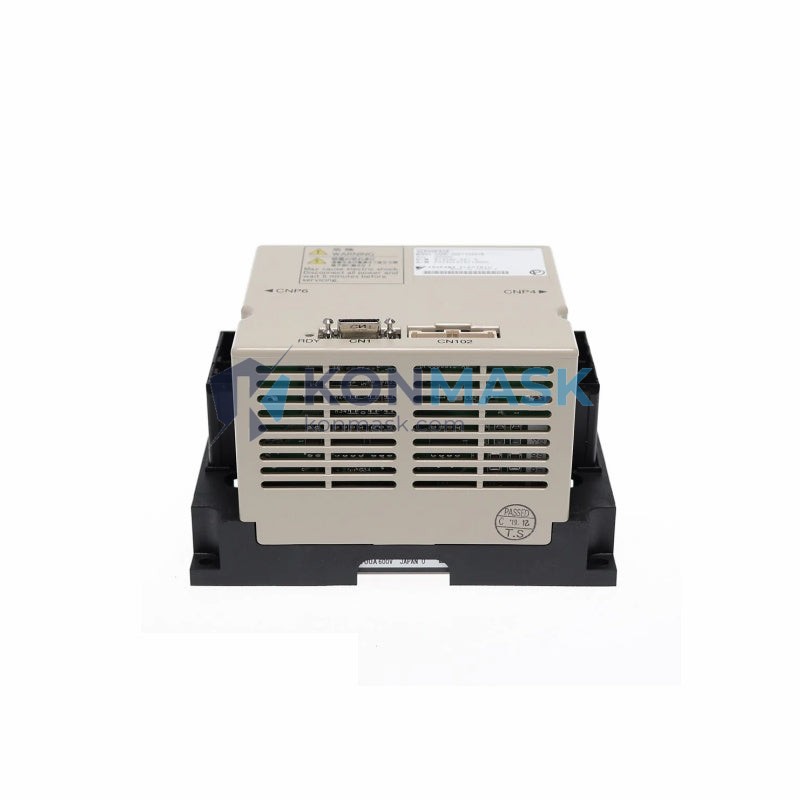

The Yaskawa SRDA-SDA71A01A-1 is a high-performance AC servo amplifier from the Sigma-III (Σ-III) series, engineered for precision motion control in demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers – Axis feed drives requiring sub-micron positioning repeatability
- Industrial Robotics – Joint actuators in 6-axis articulated arms and SCARA robots
- Semiconductor & Electronics Assembly – Pick-and-place machines, die bonders, and wafer handlers
- Packaging Machinery – High-speed indexing, filling, and sealing lines
- Printing & Converting Equipment – Register control and tension management systems
- Injection Molding Machines – Clamp, injection, and ejector axis drives
- Automated Warehousing & AGVs – Precision conveyor and shuttle positioning
Technical Specifications
- Part Number: SRDA-SDA71A01A-1
- Series: Sigma-III (Σ-III) AC Servo
- Manufacturer: Yaskawa Electric Corporation
- Type: AC Servo Amplifier / Servo Drive
- Rated Output: 7.1 kW (refer to nameplate for exact ratings)
- Input Voltage: Three-phase AC 200–230 V, 50/60 Hz
- Control Method: IGBT PWM sinusoidal current control
- Encoder Interface: Compatible with Yaskawa Σ-III series incremental / absolute encoders
- Communication: MECHATROLINK-II (standard), optional analog/pulse train
- Protective Functions: Overcurrent, overvoltage, undervoltage, overload, encoder error, regeneration error
- Cooling Method: Forced air cooling (built-in fan)
- Weight: Approx. 560 g (unit only)
- Compliance: CE, UL, cUL
Note: Always verify specifications against the official Yaskawa SRDA-SDA71A01A-1 datasheet before system design.
Why Engineers Specify This Model
- Sigma-III Proven Platform – Millions of units deployed globally; extensive field reliability data
- MECHATROLINK-II Native – Deterministic, high-speed motion bus eliminates analog noise and simplifies wiring
- Advanced Auto-Tuning – Reduces commissioning time from hours to minutes on complex mechanical loads
- Vibration Suppression – Built-in notch filters and adaptive resonance suppression for flexible machinery
- Compact Footprint – High power density reduces panel space requirements
- Wide Ecosystem – Direct compatibility with Yaskawa Σ-III servo motors (SGMSH, SGMGH, SGMUH series)
Complete System Bill of Materials
For a fully operational Yaskawa Σ-III servo axis, the following components are typically required:
- Servo Amplifier: SRDA-SDA71A01A-1 (this unit)
- Servo Motor: Yaskawa SGMSH / SGMGH / SGMUH series (matched capacity)
- Encoder Cable: Yaskawa JZSP-CHP series (shielded, length per application)
- Power Cable: Yaskawa JZSP-B series motor power cable
- Regenerative Resistor: External unit if duty cycle demands exceed internal capacity
- Motion Controller / PLC: Yaskawa MP series, Siemens S7, Mitsubishi Q/iQ-R with MECHATROLINK-II master
- 24 VDC Control Power Supply: Isolated, min. 3 A
- Circuit Breaker / Fuse: Per Yaskawa wiring specification
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cUL Listed – UL 508C Power Conversion Equipment
- RoHS Compliant – Restriction of Hazardous Substances
- ISO 9001 – Manufactured under Yaskawa’s certified quality management system
Quality Assurance & Sourcing
Every SRDA-SDA71A01A-1 unit offered through Konmask.com undergoes the following process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and serial number verification against Yaskawa manufacturing records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable sourcing documentation available on request
We source from authorized distributors, OEM decommissions, and verified industrial surplus channels. Counterfeit-free guarantee backed by our inspection process.
How to Source This Part
- In Stock: Add to cart and check out directly — ships within 1–3 business days
- Lead Time Orders: Contact us for volume pricing and scheduled delivery
- Urgent / Emergency: Email support@konmask.com or call +0086 19859288691 for same-day response
- Cross-Reference / Replacement: Provide your existing part number and we will confirm compatibility
Application-Specific FAQ
Q: Is the SRDA-SDA71A01A-1 compatible with MECHATROLINK-III controllers?
A: No. This amplifier uses MECHATROLINK-II protocol. MECHATROLINK-III requires the Sigma-V or Sigma-7 series amplifiers.
Q: Can this drive operate with third-party servo motors?
A: The SRDA-SDA71A01A-1 is optimized for Yaskawa Σ-III series motors. Third-party motor use requires careful encoder and parameter matching and is not recommended without engineering validation.
Q: What is the difference between SRDA-SDA71A01A-1 and SRDA-SDA71A01A?
A: The “-1” suffix typically denotes a hardware revision. Verify compatibility with your system’s firmware version before substitution.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested units. Extended warranty available on request.
Q: Can I get a test report or inspection certificate?
A: Yes, traceable inspection documentation is available upon request for OEM and MRO procurement teams.
