Yaskawa JZRCR-NPP01-1 / JZRCR-NPP01B-1 Teach Pendant | NX100 Robot Controller Platform
Engineering Background
The Yaskawa NX100 is a high-performance robot controller platform widely deployed in arc welding, material handling, spot welding, and general-purpose industrial automation. The teach pendant is the primary human-machine interface (HMI) for programming, jogging, and monitoring robot operations in real time.
Product Positioning

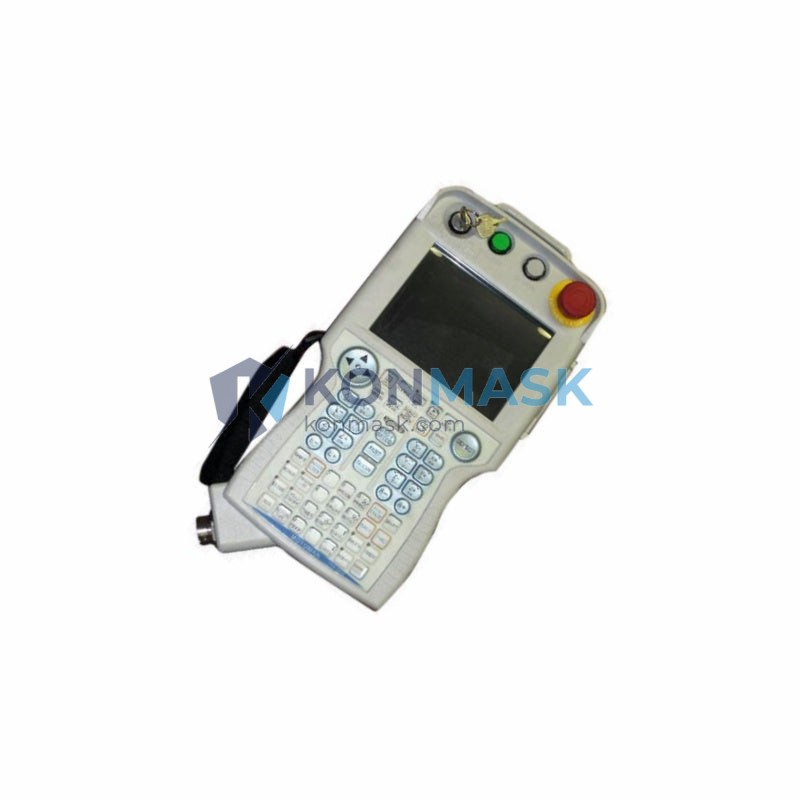

The JZRCR-NPP01-1 and its variant JZRCR-NPP01B-1 are OEM-grade teach pendants designed exclusively for the Yaskawa NX100 controller. Sourced from verified industrial channels, these units are essential for facilities requiring reliable pendant replacement, spare inventory, or system commissioning support. Konmask.com supplies procurement engineers with traceable, quality-verified components backed by technical pre-sales support.
Complete Technical Specifications
- Part Numbers: JZRCR-NPP01-1 / JZRCR-NPP01B-1
- Compatible Controller: Yaskawa NX100
- Manufacturer: Yaskawa Electric Corporation
- Country of Origin: Japan
- Interface Type: Dedicated teach pendant with color LCD display
- Communication: Proprietary NX100 pendant bus interface
- Enable Switch: 3-position deadman safety enable switch (IEC 60204-1 compliant)
- Emergency Stop: Integrated dual-channel E-stop button
- Display: Color LCD with backlight, multi-language support
- Keypad: Full alphanumeric + function key layout for job programming
- Cable: Coiled pendant cable with locking connector
- Weight: Approx. 560 g (pendant only, excluding cable)
- Operating Temperature: 0°C to +45°C
- Storage Temperature: -20°C to +60°C
- IP Rating: IP54 (dust and splash resistant)
- Compliance: CE, RoHS
Proven Application Environments
- Arc welding robot cells (MIG/TIG/Plasma)
- Spot welding lines in automotive body shops
- Material handling and palletizing systems
- General-purpose 6-axis robot programming stations
- Semiconductor and electronics assembly automation
- Maintenance and spare-parts inventory for NX100 fleets
Engineering Advantages
- OEM Compatibility: Direct plug-and-play replacement for NX100 systems — no firmware modification required.
- Safety Architecture: Dual-channel E-stop and 3-position enable switch meet ISO 10218-1 robot safety standards.
- Ergonomic Design: Balanced grip with ambidextrous layout reduces operator fatigue during extended programming sessions.
- Durable Construction: IP54-rated housing withstands welding spatter, coolant mist, and industrial particulates.
- Multi-Language UI: Supports English, Japanese, Chinese, and other regional languages via controller configuration.
System Architecture & Signal Flow
The JZRCR-NPP01-1 pendant connects to the NX100 controller via a dedicated pendant port on the controller front panel. Signal flow is as follows:
- Operator Input → Keypad/touchscreen events encoded and transmitted over pendant bus
- Controller CPU → Processes job commands, axis motion, and I/O logic
- Safety Circuit → Enable switch and E-stop signals routed through hardware safety relay chain (independent of CPU)
- Display Feedback → Real-time position, alarm, and job status rendered on LCD via controller video output
The pendant is hot-swap capable when the controller is in teach mode with appropriate safety interlocks engaged per Yaskawa NX100 maintenance manual.
Sourcing & Quality Verification
- All units sourced from authorized industrial distributors or verified OEM surplus channels
- Pre-shipment inspection: visual, connector integrity, and functional power-on check
- Serial number and date code documented for traceability
- Packaging: anti-static foam insert, moisture barrier bag, outer carton
- Warranty: 90-day DOA replacement guarantee
Procurement Process
- Inquiry: Submit your NX100 controller serial number and current pendant part number for compatibility confirmation.
- Quotation: Receive a formal quotation with lead time and shipping options within 1 business day.
- Order: Place order via Konmask.com checkout or request a proforma invoice for bank transfer.
- Shipment: Dispatched via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided.
- After-Sales: Technical support available via email or WhatsApp for installation and commissioning queries.
Technical FAQ
Q: What is the difference between JZRCR-NPP01-1 and JZRCR-NPP01B-1?
A: The “-B-” suffix denotes a minor hardware revision (typically PCB or connector revision). Both are functionally interchangeable on NX100 controllers. Confirm with your controller firmware version if uncertain.
Q: Is this pendant compatible with the DX100 or FS100 controller?
A: No. The JZRCR-NPP01-1 is designed exclusively for the NX100 platform. DX100 uses JZRCR-YPP01-1E; FS100 uses JZRCR-YPP01-2E.
Q: Can I use this pendant without the enable switch engaged?
A: No. The 3-position enable switch is a mandatory safety interlock. The controller will not execute motion commands unless the enable switch is held in the intermediate position.
Q: Do you provide a certificate of conformity?
A: Yes. A certificate of conformity and inspection report are available upon request for quality-controlled procurement.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for real-time availability.
