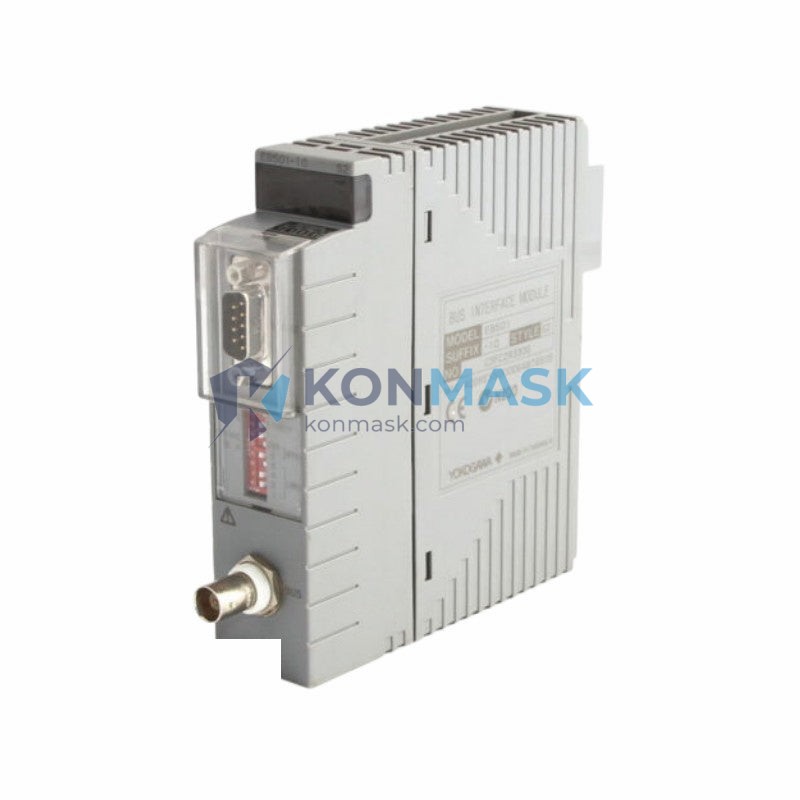

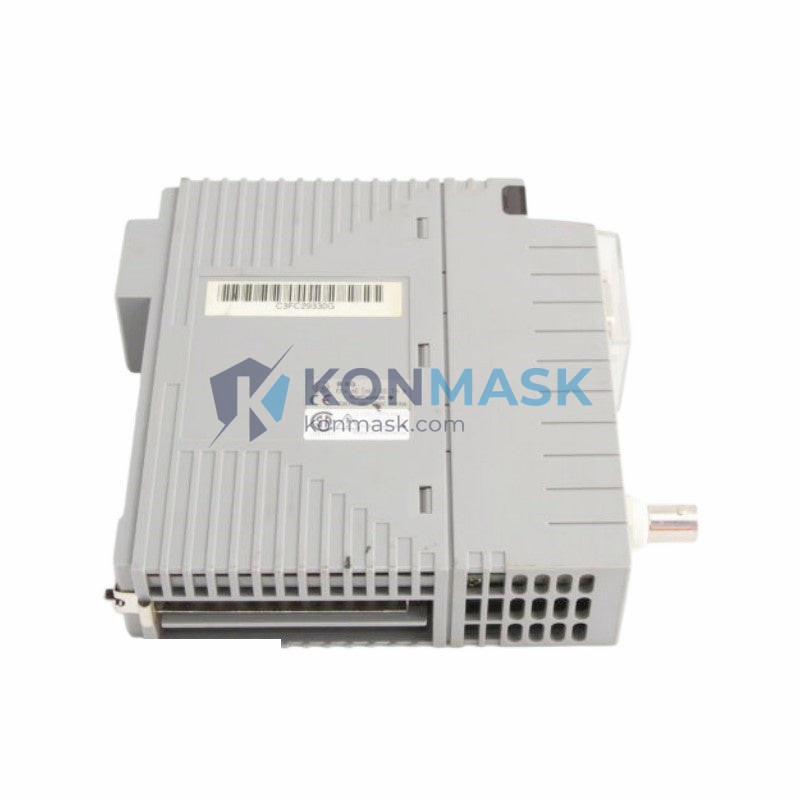

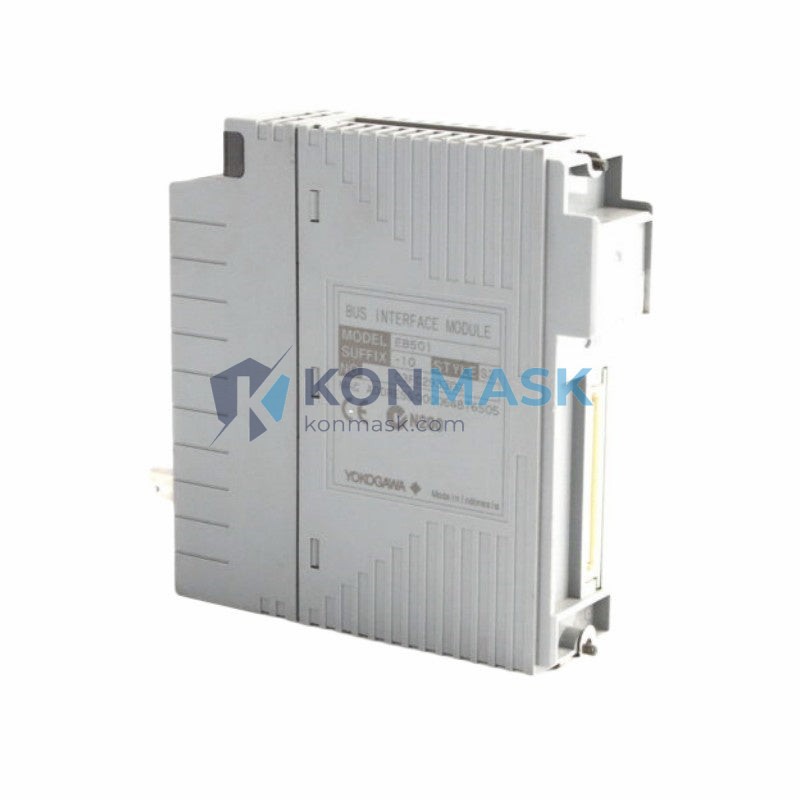

YOKOGAWA EB501-10 S2 – ESB Bus Interface Module | CENTUM VP / CS 3000 Platform
Engineering Background
The EB501-10 S2 is a dedicated ESB (Enhanced Signal Bus) interface module developed by Yokogawa Electric Corporation for integration within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to bridge field I/O subsystems with the central control domain, this module plays a critical role in maintaining deterministic, high-integrity communication across large-scale process automation architectures.
Product Positioning
Targeted at process industries including oil & gas, petrochemical, power generation, and specialty chemicals, the EB501-10 S2 is the preferred bus interface solution for engineers requiring proven interoperability, long-term platform support, and OEM-grade reliability. Konmask.com supplies this module as a genuine, traceable component backed by rigorous sourcing verification.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Part Number | EB501-10 S2 |
| Module Type | ESB Bus Interface Module |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Bus Standard | ESB (Enhanced Signal Bus) |
| Communication Protocol | Yokogawa proprietary ESB protocol |
| Mounting | DIN-rail / backplane slot mount |
| Power Supply | Supplied via backplane (system bus) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 300 g |
| Approvals / Compliance | CE, UL (per platform certification) |
| Firmware Revision | S2 (second-generation silicon revision) |
Proven Application Environments
- Oil & Gas: Upstream SCADA integration, refinery DCS expansion, offshore platform control
- Petrochemical: Reactor control loops, distillation column automation, safety-instrumented system (SIS) interfacing
- Power Generation: Turbine control, boiler management, grid synchronization systems
- Specialty Chemicals: Batch process control, multi-unit coordination, environmental monitoring
- Pulp & Paper / Water Treatment: Continuous process DCS upgrades and legacy system extensions
Engineering Advantages
- Deterministic Bus Latency: ESB architecture guarantees cycle-consistent data transfer, critical for closed-loop control integrity
- Hot-Swap Capable: Supports online module replacement without process interruption (platform-dependent)
- Redundancy Ready: Compatible with dual-redundant ESB configurations for high-availability installations
- Long Product Lifecycle: Yokogawa’s 20+ year platform support commitment ensures spare parts availability and firmware continuity
- Compact Form Factor: Optimized slot density reduces cabinet footprint in brownfield retrofit projects
- EMI Hardened: Designed for industrial electromagnetic environments per IEC 61000 series
System Architecture & Signal Flow
The EB501-10 S2 operates as a protocol bridge between the CENTUM VP Field Control Station (FCS) backplane and downstream I/O node clusters connected via the ESB segment. Signal flow is unidirectional-arbitrated: the module polls I/O nodes on a configurable scan cycle, aggregates process variable (PV) data, and forwards structured data packets upstream to the FCS CPU via the internal system bus. Alarm and status flags are propagated in real time with sub-100 ms latency under nominal load conditions.
In redundant configurations, a secondary EB501-10 S2 operates in standby mode with continuous state synchronization, enabling bumpless switchover upon primary module fault detection.
Sourcing & Quality Verification
- Origin: Genuine Yokogawa OEM production; no third-party remanufacturing
- Traceability: Each unit carries original Yokogawa serial number and date code; documentation available on request
- Inspection Protocol: Visual inspection, label verification, functional power-on test prior to shipment
- Condition: New surplus or refurbished-to-spec; condition disclosed at time of quotation
- Warranty: 12-month Konmask operational warranty; RMA process available
- Export Compliance: ECCN classification reviewed; export documentation provided for international orders
Procurement Process
- Submit Inquiry: Contact support@konmask.com or call +0086 19859288691 with your project BOM and required delivery window
- Quotation: Receive itemized quote with unit price, lead time, condition disclosure, and shipping options within 1 business day
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or NET terms (qualified accounts)
- Quality Check & Dispatch: Module inspected, photographed, and securely packaged; tracking number provided within 24–48 hours of payment clearance
- Post-Delivery Support: Technical commissioning support available via email; warranty claims processed within 5 business days
Technical FAQ
Q: Is the EB501-10 S2 compatible with CENTUM VP R6.x firmware?
A: Yes. The S2 hardware revision is validated for use with CENTUM VP R4.x through R6.x. Confirm your FCS firmware version with your Yokogawa system integrator for final compatibility sign-off.
Q: Can this module replace an EB501-10 S1 in an existing installation?
A: In most cases, yes — the S2 revision is backward-compatible at the hardware slot level. However, firmware parameter re-initialization may be required. Consult your site’s DCS configuration engineer before hot-swapping revisions.
Q: What is the maximum ESB segment length supported?
A: ESB segment length is governed by the CENTUM VP system engineering guidelines (typically up to 100 m for standard cabling). Refer to Yokogawa TI 33J01A10-01EN for detailed topology constraints.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A Konmask CoC is included with every shipment. Original Yokogawa factory documentation is provided where available.
Q: What are the lead times for international orders?
A: Standard international shipment via DHL/FedEx Express: 3–7 business days. Sea freight options available for bulk orders. Contact us for project-specific logistics planning.
