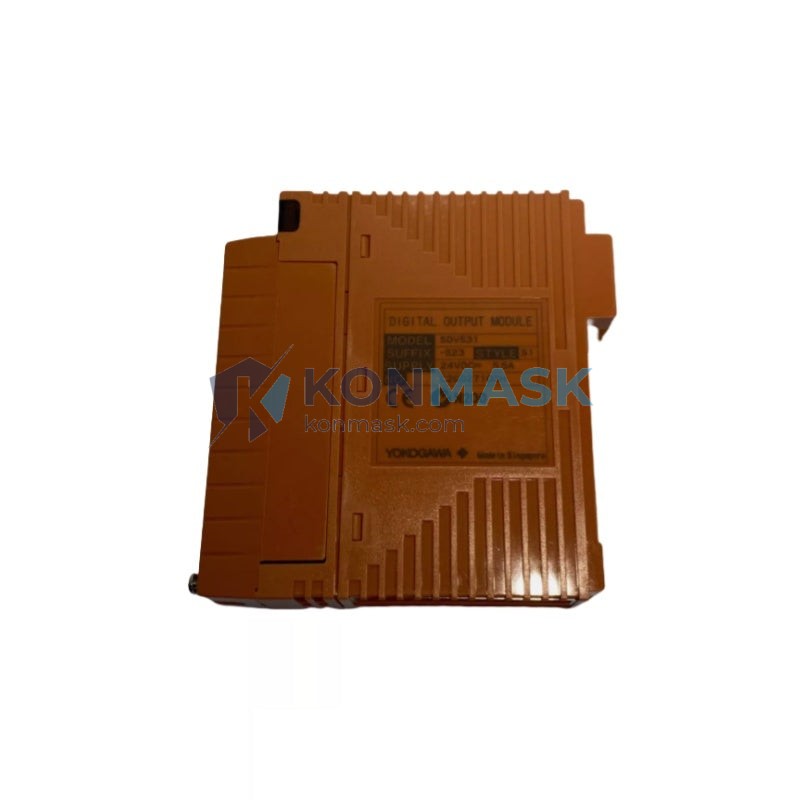

Process Signal Isolation Solution – Yokogawa SDV531-L53*S4 | STARDOM Series
Where This Product Is Used
The Yokogawa SDV531-L53*S4 Signal Isolator is purpose-built for demanding industrial process control environments where signal integrity and galvanic isolation are non-negotiable. Typical deployment scenarios include:
- Oil & Gas Upstream/Midstream: Wellhead RTU panels and pipeline SCADA nodes where ground loops between field instruments and control rooms introduce measurement errors.
- Chemical & Petrochemical Plants: Reactor monitoring loops requiring intrinsically safe signal conditioning between hazardous-area transmitters and safe-area DCS I/O cards.
- Power Generation: Turbine control systems integrating 4–20 mA analog signals from legacy sensors into modern Yokogawa STARDOM FCN/FCJ distributed control nodes.
- Water & Wastewater Treatment: Remote pump station panels where long cable runs create common-mode noise that degrades analog signal accuracy.
- Pharmaceutical Manufacturing: GMP-compliant process lines requiring validated signal isolation to maintain data integrity across validated control systems.
- Pulp & Paper / Food & Beverage: Wet-environment process areas where moisture-induced leakage currents must be blocked from reaching sensitive I/O modules.
Technical Specifications
- Model: SDV531-L53*S4
- Series: STARDOM FCN/FCJ Signal Distribution / Isolation Module
- Manufacturer: Yokogawa Electric Corporation
- Function: Galvanic signal isolation & distribution for analog I/O
- Signal Type: 4–20 mA DC analog (current loop)
- Isolation Voltage: ≥ 500 V DC (channel-to-channel & channel-to-bus)
- Accuracy: ±0.1% of full scale (typical)
- Power Supply: 24 V DC (loop-powered or bus-powered per configuration)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: −25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Mounting: DIN rail / STARDOM FCN/FCJ backplane slot
- Weight: Approx. 1,000 g (module + housing)
- Compliance: CE, RoHS
Note: Confirm exact sub-variant specifications with the official Yokogawa SDV531 datasheet (IM 34P02Q11-01E) before final BOM submission.
Why Engineers Specify This Model
- True Galvanic Isolation: Eliminates ground loops that cause 4–20 mA signal drift — a critical requirement in multi-vendor panel environments.
- STARDOM Ecosystem Compatibility: Designed to integrate seamlessly with Yokogawa FCN/FCJ autonomous controllers without additional signal conditioning hardware.
- High Accuracy: ±0.1% FS ensures measurement fidelity for PID control loops where signal error directly impacts product quality or safety.
- Compact DIN-Rail Form Factor: Minimizes panel real estate in space-constrained marshalling cabinets.
- Long-Term Availability: Yokogawa’s STARDOM platform has a documented long-term support roadmap, reducing obsolescence risk for 10–20 year plant lifecycles.
- Simplified Wiring: Plug-and-play terminal block design reduces installation time and commissioning errors.
Complete System Bill of Materials
For a complete STARDOM FCN/FCJ signal isolation node, engineers typically specify the following alongside the SDV531-L53*S4:
- Yokogawa FCN-100 or FCJ Autonomous Controller (base unit)
- Yokogawa SDV531 series I/O module (matching channel count)
- 24 V DC DIN-rail power supply (e.g., Phoenix Contact QUINT series)
- Shielded twisted-pair cable (Belden 8761 or equivalent) for field wiring
- DIN rail (TS-35) and end brackets
- Terminal blocks (Weidmüller or Phoenix Contact) for field termination
- Surge protection barriers for long cable runs (>100 m)
Compliance & Industry Standards
- CE Marking: Compliant with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- RoHS: Restriction of Hazardous Substances compliant
- IEC 61000-4: EMC immunity per industrial environment requirements
- IEC 61508 / IEC 61511: Suitable for use in SIL-assessed safety instrumented systems (consult Yokogawa SIL certificate for specific SIL rating)
- ATEX / IECEx: Verify zone classification requirements with Yokogawa before deploying in Ex-rated areas
Quality Assurance & Sourcing
All Yokogawa modules supplied by Konmask.com are:
- Sourced from authorized distributors or verified surplus channels with full traceability documentation
- Inspected for physical integrity, label authenticity, and firmware/hardware revision consistency prior to dispatch
- Shipped in anti-static ESD packaging with original or equivalent protective foam inserts
- Accompanied by a Konmask inspection report and, where available, original Yokogawa factory test certificates
We maintain a zero-tolerance policy on counterfeit components. Every unit is cross-referenced against Yokogawa’s published part numbering schema before listing.
How to Source This Part
- Add to Cart directly on this page for standard in-stock units.
- Request a Quote for volume orders (>5 units), project BOM pricing, or lead-time confirmation: support@konmask.com
- Expedited Sourcing: If this unit shows as out of stock, contact us — we maintain relationships with global Yokogawa distribution networks and can typically locate stock within 3–7 business days.
- Export Documentation: We provide commercial invoices, packing lists, and HS code declarations for international customs clearance.
Application-Specific FAQ
Q: Is the SDV531-L53*S4 compatible with Yokogawa CENTUM VP DCS?
A: The SDV531 series is primarily designed for the STARDOM FCN/FCJ platform. For CENTUM VP integration, consult Yokogawa’s I/O compatibility matrix or contact our technical team.
Q: Can this module be used in SIL 2 safety loops?
A: Consult the Yokogawa SIL certificate specific to the SDV531 variant. SIL suitability depends on the full safety loop architecture and proof-test interval.
Q: What is the difference between SDV531-L53*S4 and SDV531-L53*S1?
A: The suffix codes denote configuration variants (channel count, output type, or power option). Contact us with your exact application requirements for a confirmed recommendation.
Q: Do you provide installation and commissioning support?
A: We provide technical documentation and pre-sales engineering consultation. On-site commissioning services can be arranged through our partner network — contact us for details.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock units typically require 5–15 business days depending on global availability.
