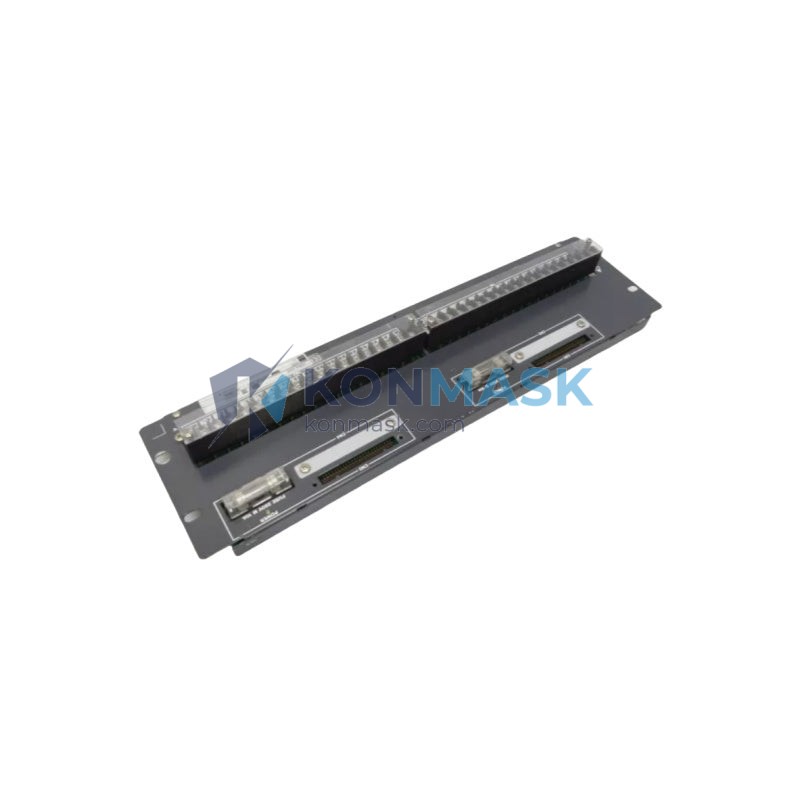

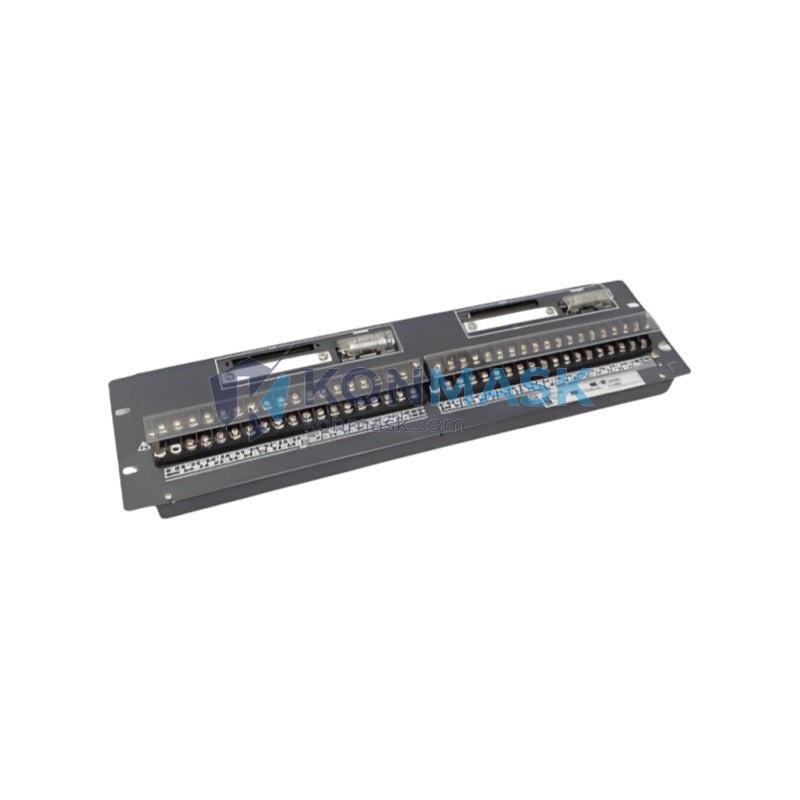

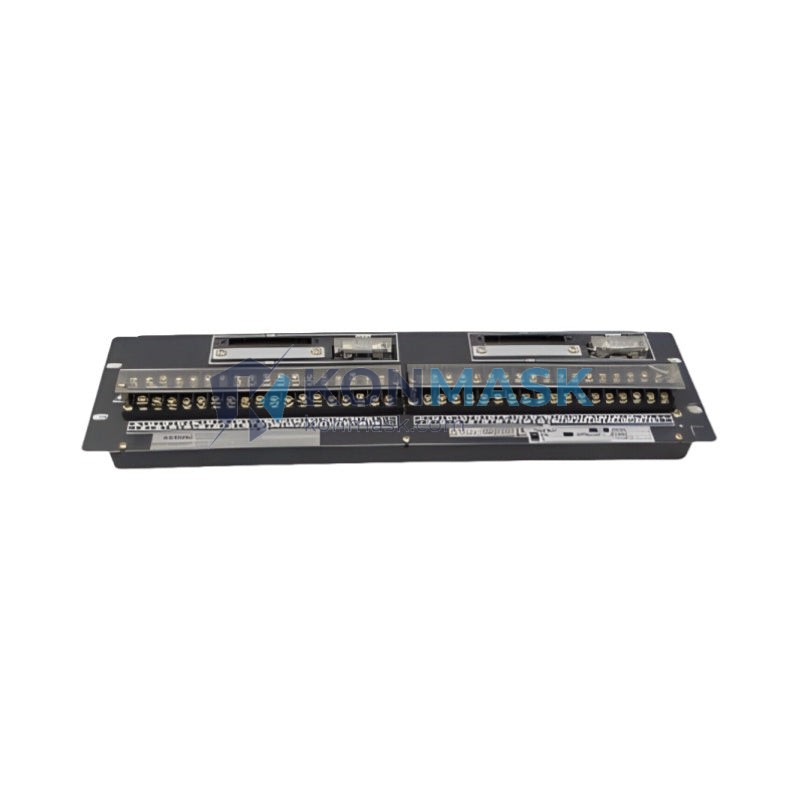

YOKOGAWA SED4D Digital Output Module | Replacement, Equivalent & Selection Guide
The YOKOGAWA SED4D is a 4-channel digital (discrete) output module designed for use in YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). It provides reliable, isolated digital output signals for controlling field devices such as solenoid valves, relays, and motor starters in process automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing the SED4D or its equivalents.
Technical Specifications
- Model: SED4D
- Manufacturer: YOKOGAWA Electric Corporation
- Series: CENTUM VP / CS 3000 I/O Modules
- Module Type: Digital Output (DO)
- Output Channels: 4 channels
- Output Signal: Discrete (ON/OFF) digital output
- Isolation: Channel-to-channel and channel-to-bus isolation
- Communication: ESB (Expanded Serial Bus) backplane interface
- Power Supply: Supplied via DCS backplane
- Operating Temperature: 0°C to 55°C
- Humidity: 5% to 95% RH (non-condensing)
- Mounting: DIN rail / node unit backplane
- Certifications: CE, UL (refer to YOKOGAWA datasheet for full compliance list)
- Weight: Approx. 1,000 g (module + housing)
Compatible Replacement & Equivalent Models
When the SED4D is discontinued, on long lead time, or unavailable, the following models may serve as direct or functional replacements. Always verify compatibility with your specific DCS firmware version and node configuration before substitution.
- YOKOGAWA SED4S – Same channel count, alternate output rating; verify load specifications
- YOKOGAWA ADV151-P00 – Digital output module for CENTUM VP; confirm backplane slot compatibility
- YOKOGAWA ADV151-P10 – Enhanced version with extended diagnostics; drop-in for most SED4D applications
- YOKOGAWA SED8D – 8-channel DO module; suitable when channel expansion is acceptable
- Third-party equivalents: Consult Konmask engineering team for validated cross-reference to Emerson, Honeywell, or ABB DCS output modules in hybrid migration projects
Note: All replacements must be validated against the YOKOGAWA CENTUM VP/CS 3000 hardware compatibility matrix. Contact support@konmask.com for a free compatibility check.
Why Choose the Original SED4D
- OEM Guaranteed Compatibility: Factory-tested and certified for CENTUM VP and CS 3000 node units — zero integration risk
- Long-Term Support: YOKOGAWA provides firmware updates, spare parts, and technical documentation for the full product lifecycle
- Proven Reliability: Widely deployed in oil & gas, chemical, power generation, and pharmaceutical plants globally
- Diagnostic Capability: Built-in self-diagnostics reduce unplanned downtime and simplify maintenance
- Regulatory Compliance: Meets international safety and EMC standards required for critical process environments
Typical Applications
- Solenoid valve control in oil & gas pipelines and refineries
- Motor starter and relay switching in chemical processing plants
- On/off control of pumps and compressors in water treatment facilities
- Discrete output signaling in pharmaceutical batch manufacturing
- Safety interlock output in power generation and utilities
- General-purpose digital output in CENTUM VP-based DCS architectures
System Compatibility
- YOKOGAWA CENTUM VP (all revisions) – Primary supported platform
- YOKOGAWA CS 3000 – Compatible with appropriate node unit configuration
- YOKOGAWA CENTUM CS – Verify with YOKOGAWA hardware compatibility guide
- ESB Bus Node Units: ANB10D, ANB11D, ANR10D series
- Not compatible with: STARDOM, ProSafe-RS, or FAST/TOOLS platforms without additional interface hardware
Selection Guide
Use the following criteria to confirm the SED4D is the correct module for your application:
- Step 1 – Confirm DCS Platform: Verify your system is CENTUM VP or CS 3000
- Step 2 – Check Channel Count: SED4D provides 4 DO channels; use SED8D if 8 channels are required
- Step 3 – Verify Output Type: Confirm field devices require discrete (ON/OFF) digital output, not analog
- Step 4 – Check Node Unit Slot: Confirm available I/O slot in your node unit backplane
- Step 5 – Review Load Specs: Match output voltage/current rating to field device requirements
- Step 6 – Firmware Version: Ensure DCS firmware supports SED4D; consult YOKOGAWA release notes
Not sure which module fits your system? Send your node unit model and I/O list to support@konmask.com for a free selection consultation.
Quality Assurance & Sourcing
- Source: Konmask.com sources YOKOGAWA modules from authorized distributors and verified surplus channels
- Inspection: All units undergo visual inspection, label verification, and functional pre-check before shipment
- Authenticity: Counterfeit risk mitigation — serial numbers verified against YOKOGAWA records where possible
- Warranty: 90-day replacement warranty on all stocked units; extended warranty available on request
- Packaging: Anti-static packaging with original or equivalent protective housing
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 7–21 days
How to Order
- Click Add to Cart or Contact Us for bulk/project pricing
- Provide your DCS platform version and node unit model for compatibility confirmation
- Request a formal quotation via support@konmask.com
- Payment via T/T bank transfer, PayPal, or trade assurance — contact us for terms
- Shipping via DHL, FedEx, or sea freight; export documentation provided for international orders
Replacement & Compatibility FAQ
Q: Can the SED4D be used as a direct replacement for the SED4S?
A: They share the same form factor and channel count, but output ratings differ. Verify load voltage and current specifications before substitution.
Q: Is the SED4D compatible with CENTUM VP R6.x firmware?
A: Yes, the SED4D is supported across CENTUM VP R4.x through R6.x. Confirm with your YOKOGAWA system engineer for the latest firmware matrix.
Q: Can I mix SED4D and SED8D modules in the same node unit?
A: Yes, CENTUM VP node units support mixed I/O module configurations within slot capacity limits.
Q: Do you supply new or refurbished SED4D units?
A: Konmask.com supplies both new (factory-sealed) and tested-good refurbished units. Condition is clearly stated on each listing.
Q: What is the lead time for out-of-stock SED4D modules?
A: Typical sourcing lead time is 7–21 business days. Contact us for urgent project requirements.
