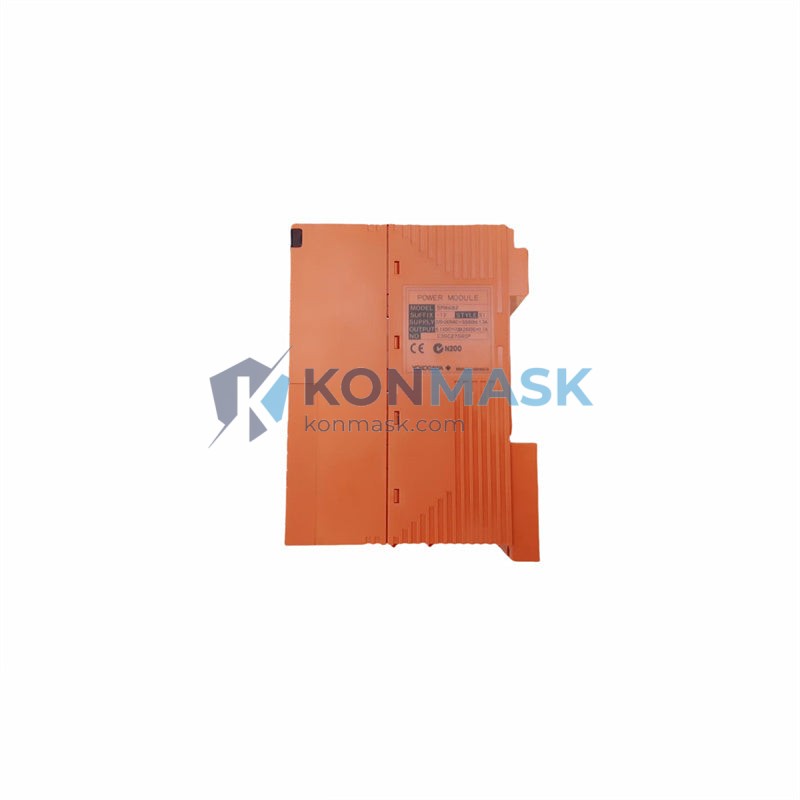

YOKOGAWA SPW482-50 – Redundant Power Supply Module | CENTUM CS/CS3000 DCS Platform
Engineering Background: The SPW482-50 is a dedicated redundant power supply module designed for YOKOGAWA’s CENTUM CS and CENTUM CS3000 Distributed Control Systems (DCS). It provides stable, conditioned DC power to field control stations (FCS) and I/O modules, ensuring uninterrupted process control in mission-critical industrial environments. As a core infrastructure component, it supports hot-standby redundancy configurations that eliminate single points of failure in power delivery.
Product Positioning: Targeted at process industries requiring 24/7 continuous operation — including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing — the SPW482-50 is the OEM-specified power backbone for CENTUM CS/CS3000 field stations. Konmask.com supplies this module with full traceability and quality verification for MRO procurement and system expansion projects.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | SPW482-50 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Series / Platform | CENTUM CS / CENTUM CS3000 |
| Module Type | Redundant Power Supply Module |
| Input Voltage | 100–240 V AC, 50/60 Hz (universal input) |
| Output Voltage | 24 V DC (regulated) |
| Output Current | 50 W rated output |
| Redundancy | Hot-standby dual redundant configuration supported |
| Mounting | DIN rail / FCS baseplate slot mount |
| Cooling | Convection / forced air (per enclosure design) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 2,140 g |
| Approvals | CE, UL (per YOKOGAWA system certification) |
| Compatibility | CENTUM CS FCS, CENTUM CS3000 FCS, AFV10, AFV30, AFV40 |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS power infrastructure
- Petrochemical & Chemical: Continuous process control stations requiring uninterrupted 24 V DC bus power
- Power Generation: Turbine control systems and boiler management DCS field stations
- Pharmaceutical & Life Sciences: GMP-compliant process automation with validated power supply redundancy
- Pulp & Paper / Food & Beverage: High-availability production line control with CENTUM CS3000 architecture
- Water & Wastewater Treatment: 24/7 plant automation requiring fault-tolerant power delivery
Engineering Advantages
- Hot-Standby Redundancy: Dual SPW482-50 modules operate in parallel; automatic bumpless switchover on primary failure — zero process interruption
- Universal AC Input: 100–240 V AC wide-range input accommodates global facility power standards without additional transformers
- Regulated 24 V DC Output: Tight output regulation protects sensitive I/O modules and communication cards from voltage transients
- OEM Integration: Factory-matched to CENTUM CS/CS3000 baseplate and FCS chassis — no compatibility engineering required
- Long Service Life: Industrial-grade components rated for continuous duty in harsh process environments
-
Diagnostic Visibility:
Status LEDs provide real-time health indication; fault signals propagate to CENTUM HIS operator station for predictive maintenance
System Architecture & Signal Flow
In a standard CENTUM CS3000 field station, the SPW482-50 occupies the dedicated power supply slot of the FCS baseplate. AC mains feed the module’s universal input stage, which rectifies and regulates to a stable 24 V DC bus. This bus powers all I/O modules (analog input/output, digital I/O, communication cards) installed in the same FCS nest. In redundant configurations, two SPW482-50 units share the load; the standby unit monitors bus voltage continuously and assumes full load within milliseconds of detecting a primary fault — maintaining uninterrupted power to all connected field devices and control loops.
Sourcing & Quality Verification
- Origin: Genuine YOKOGAWA OEM hardware — no third-party rebranding or refurbishment without disclosure
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment
- Traceability: Serial number and date code recorded; documentation available on request
- Packaging: Anti-static ESD bag + foam-lined carton; shock-rated for international air and sea freight
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 business days
- Export Compliance: ECCN classification and export documentation provided for cross-border shipments
Procurement Process
- Submit RFQ — Email support@konmask.com with part number SPW482-50, required quantity, and delivery timeline
- Receive Quote — Pricing, lead time, and availability confirmed within 1 business day
- Order Confirmation — PO accepted via email; proforma invoice issued for payment processing
- Quality Check & Dispatch — Unit inspected, packed, and shipped with tracking number and test report
- Delivery & Support — Post-delivery technical support available for installation and commissioning queries
Technical FAQ
Q: Can the SPW482-50 be used in a non-redundant single-supply configuration?
A: Yes. A single SPW482-50 can power an FCS nest independently. Redundant pairing is recommended for critical loops but is not mandatory for all installations.
Q: Is the SPW482-50 compatible with CENTUM VP?
A: The SPW482-50 is specified for CENTUM CS and CS3000 platforms. CENTUM VP uses a different power supply architecture (e.g., PW481/PW482 series for VP FCS). Confirm your FCS model before ordering.
Q: What happens during a power supply switchover in redundant mode?
A: The standby module detects bus voltage drop and assumes full load within milliseconds. The CENTUM HIS generates a system alarm for maintenance notification, but process control continues without interruption.
Q: Can Konmask provide a test report or inspection certificate?
A: Yes. A functional test report is available upon request at time of order. Third-party inspection can be arranged for large-volume orders.
Q: What is the lead time for SPW482-50?
A: In-stock units ship within 3–5 business days. For out-of-stock situations, lead time is confirmed at RFQ stage — typically 2–4 weeks for sourced units.
