AC Drive Control Solution – Allen-Bradley 1336-BDB-SP5D | 1336 PLUS Series
Where This Product Is Used

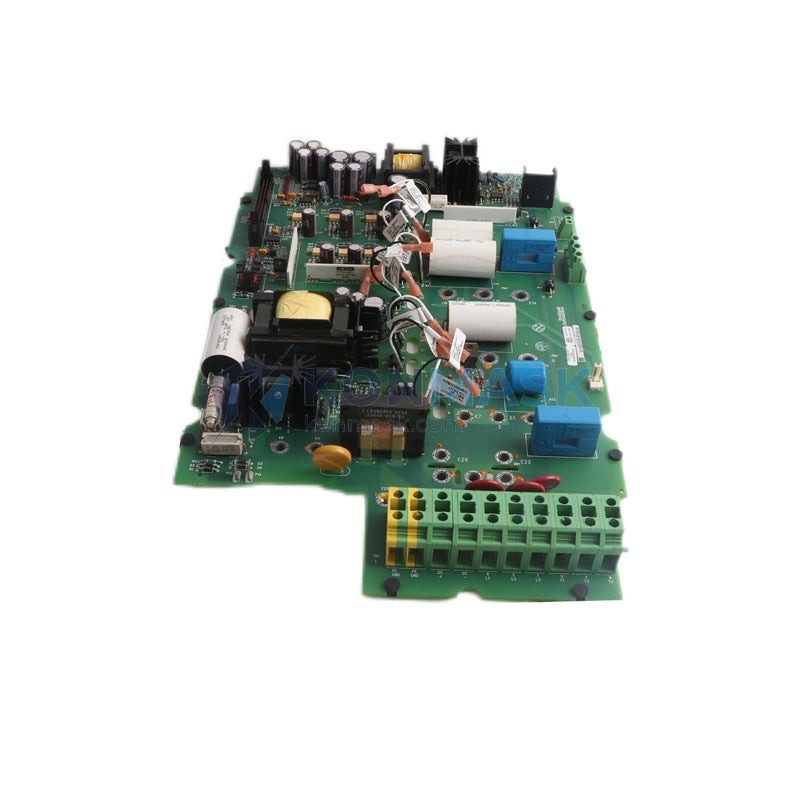

The Allen-Bradley 1336-BDB-SP5D PC Board is a core control card designed for use inside the 1336 PLUS family of AC variable-frequency drives (VFDs). It is deployed across a wide range of industrial environments where precise motor speed and torque control is critical:
- Conveyor & Material Handling Systems — controls belt speed in distribution centers, automotive assembly lines, and packaging plants.
- Pump & Fan Applications — regulates flow in HVAC systems, water treatment facilities, and process cooling loops.
- Compressor Drives — maintains stable pressure output in pneumatic and refrigeration systems.
- Machine Tool & CNC Equipment — provides closed-loop speed regulation for spindle and feed-axis drives.
- Oil & Gas Processing — used in wellhead pump drives and pipeline booster stations requiring reliable field-replaceable boards.
- Food & Beverage Production — installed in mixer, extruder, and bottling line drives where uptime is non-negotiable.
When this board fails, the entire drive loses its control intelligence. A verified replacement from Konmask.com restores full drive functionality without requiring a complete drive replacement.
Technical Specifications
| Part Number | 1336-BDB-SP5D |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | 1336 PLUS AC Drive |
| Component Type | PC Board / Drive Control Card |
| Function | Main control board — signal processing, I/O interface, drive logic |
| Compatible Drive Family | Allen-Bradley 1336 PLUS Series VFDs |
| Weight | 1,540 g (approx.) |
| Condition Available | Surplus / Refurbished / New Old Stock (NOS) |
| SKU | 1336-BDB-SP5D |
Note: Always cross-reference your drive’s nameplate and firmware revision before ordering. Contact support@konmask.com for compatibility confirmation.
Why Engineers Specify This Model
- Direct OEM Form-Factor — mounts into the original drive chassis without mechanical modification; no bracket adapters required.
- Preserves Existing Drive Investment — replacing the control board costs a fraction of a full drive replacement, avoiding costly re-commissioning and re-wiring.
- Proven Field Reliability — the 1336 PLUS platform has decades of installed base in heavy industry; this board is a known, stable component.
- Faster Restart vs. New Drive Lead Times — surplus stock ships immediately; new drives from OEM channels can have 8–20 week lead times.
- Minimal Re-Programming — parameters stored in the drive’s memory module (if intact) are retained; board swap often requires only parameter verification, not full re-commissioning.
Complete System Bill of Materials
For a full 1336 PLUS drive restoration or spare-parts kit, engineers typically source the following alongside the 1336-BDB-SP5D:
- 1336-BDB-SP5D — Main PC Control Board (this item)
- 1336-MOD-L2E / L2 — HIM (Human Interface Module) for parameter access
- 1336-GM1 / GM2 — Gate Driver Board (power section interface)
- 1336-PB — Power Board / Precharge Board
- 1336-BRF — Dynamic Braking Resistor (if regenerative braking is required)
- 1336-QOUT — Output filter module for long-cable installations
- 1492-CABLE series — I/O wiring harnesses for analog/digital signal connections
Contact Konmask.com to source multiple line items in a single order and reduce freight costs.
Compliance & Industry Standards
- CE Marking — original Allen-Bradley 1336 PLUS drives are CE-compliant; replacement boards maintain the same electrical design.
- UL / cUL Listed — the 1336 PLUS drive family carries UL listing; board-level replacements are evaluated under the same drive listing when installed per OEM documentation.
- RoHS Consideration — legacy boards manufactured prior to 2006 may not be RoHS-compliant; confirm with your EHS team if required for your facility.
- IEC 61800-3 — the 1336 PLUS platform is designed to meet adjustable-speed electrical power drive system EMC requirements.
- OSHA / NFPA 70E — installation must be performed by qualified electrical personnel following lockout/tagout (LOTO) procedures.
Quality Assurance & Sourcing
Konmask.com applies a structured inspection protocol to every PC board before shipment:
- Visual Inspection — board examined for burnt components, cracked traces, corrosion, and physical damage under magnification.
- Component-Level Verification — critical ICs, capacitors, and gate drivers checked against OEM reference schematics.
- Functional Bench Test — where test fixtures are available, boards are powered and signal outputs verified prior to packaging.
- Anti-Static Packaging — shipped in ESD-safe bags with foam cushioning inside double-wall corrugated cartons.
- Traceability — each unit is logged with a unique internal inspection record; available upon request for MRO documentation purposes.
We source from decommissioned OEM equipment, authorized surplus channels, and vetted industrial distributors — never from unverified grey-market brokers.
How to Source This Part
- Confirm Compatibility — locate your drive’s nameplate (model number, HP/kW rating, firmware version). Email support@konmask.com with this data for a compatibility check before ordering.
- Request a Quote — for volume orders (3+ units) or urgent requirements, contact us directly for priority pricing and expedited shipping options.
- Place Your Order — add to cart and check out securely on Konmask.com. We accept T/T bank transfer, PayPal, and major credit cards.
- Shipping — standard international shipping via DHL / FedEx with full tracking. Express options available. Typical lead time: 1–3 business days after payment confirmation.
- Installation Support — our technical team can provide Allen-Bradley installation documentation and parameter backup guidance upon request.
Application-Specific FAQ
Q: Will this board work with my specific 1336 PLUS drive HP rating?
A: The 1336-BDB-SP5D is used across multiple HP variants of the 1336 PLUS series. Please provide your full drive model number (e.g., 1336F-BRF50-AN-EN) so we can confirm the exact board revision required.
Q: Can I swap this board without losing my drive parameters?
A: If your drive uses a removable memory module (e.g., 1336-MOD-L2), parameters are stored there and survive a board swap. If parameters are stored on-board, you will need to re-enter them from your commissioning records. We recommend backing up parameters via DriveExplorer or RSLogix before any board replacement.
Q: Is this a new or refurbished board?
A: Stock condition varies. Each listing reflects the condition at time of sale (surplus, refurbished, or NOS). Contact us for the current condition of available units.
Q: What is your return policy for PC boards?
A: We offer a 30-day return window for boards that are unused and in original packaging. Boards that have been installed are evaluated on a case-by-case basis. Contact support@konmask.com to initiate a return.
Q: Do you offer a warranty?
A: Yes — all boards carry a 90-day functional warranty against defects identified during normal operation. Warranty does not cover damage from incorrect installation, overvoltage events, or ESD mishandling.
