ABB 3BHE029153R0101 – High-Integrity Control Board | AC800M DCS Platform
Engineering Background

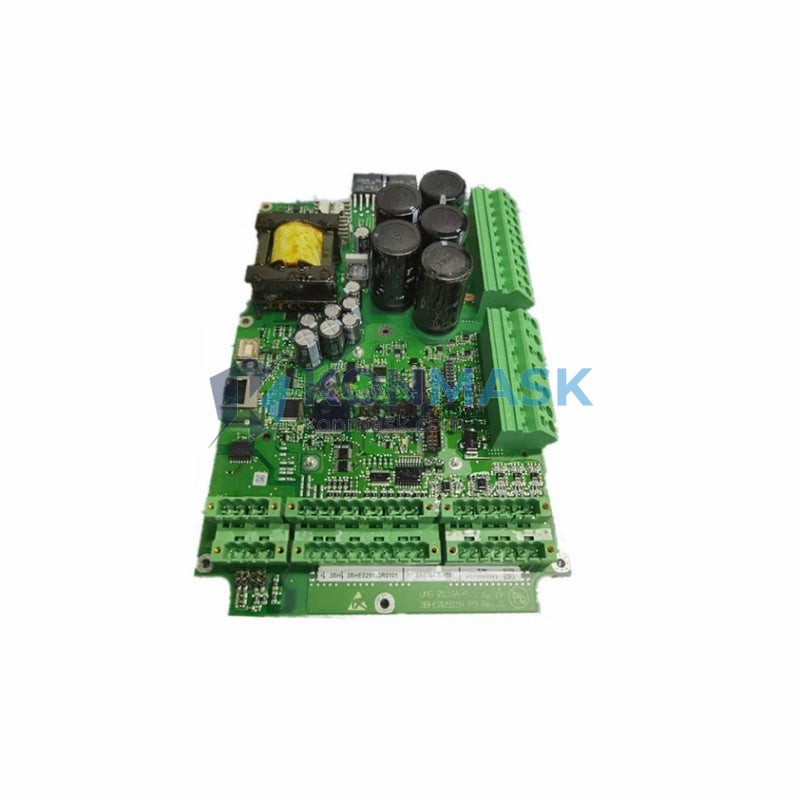

The ABB 3BHE029153R0101 (variant: 0119A-P V101) is a purpose-engineered control board designed for deployment within ABB’s AC800M Distributed Control System (DCS) architecture — one of the most widely adopted process automation platforms in power generation, oil & gas, pulp & paper, and chemical processing industries. This board serves as a core computational and signal-management component, ensuring deterministic real-time control across complex multi-loop process environments.
Product Positioning
Sourced and verified by Konmask.com, this module is positioned as a direct OEM-equivalent replacement or expansion unit for existing AC800M installations. It is targeted at procurement engineers and maintenance teams requiring a traceable, quality-assured spare with minimal lead time. Konmask maintains stock of critical ABB automation components to support unplanned shutdowns and scheduled turnarounds.
ABB 3BHE029153R0101 0119A-P V101 – Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 3BHE029153R0101 |
| Variant / Revision | 0119A-P V101 |
| Manufacturer | ABB Ltd. |
| Product Series | AC800M DCS Platform |
| Module Type | Control Board / Processor Card |
| Country of Origin | China (CN) |
| Weight | 240 g (approx.) |
| Condition | New / Refurbished (tested & verified) |
| Warranty | 12 months (Konmask quality guarantee) |
| Lead Time | In stock — ships within 3–5 business days |
| Shipping | Global DHL / FedEx / UPS express available |
Proven Application Environments
- Power Generation: Turbine governor control, boiler management systems, and grid synchronization loops
- Oil & Gas: Upstream wellhead automation, midstream pipeline SCADA integration, downstream refinery DCS
- Pulp & Paper: Continuous digester control, bleaching sequence management, and recovery boiler automation
- Chemical Processing: Batch reactor sequencing, distillation column control, and safety interlock systems
- Water Treatment: Pump station automation, dosing control, and SCADA-linked remote I/O management
Engineering Advantages
- Deterministic Real-Time Execution: Designed for hard real-time control loops with predictable scan-cycle performance critical to process safety
- Seamless AC800M Integration: Drop-in compatible with existing AC800M controller racks — no firmware re-engineering required for standard replacement
- Robust Industrial Design: Engineered to IEC 61131-3 standards with EMC shielding and vibration tolerance for harsh plant environments
- Redundancy Support: Compatible with AC800M hot-standby redundancy configurations for high-availability process control
- Long Service Life: ABB’s industrial-grade component selection ensures extended MTBF in continuous 24/7 operation
System Architecture & Signal Flow
Within the AC800M architecture, the 3BHE029153R0101 control board interfaces with the controller backplane via ABB’s proprietary high-speed internal bus. It manages execution of IEC 61131-3 control programs (Ladder, FBD, ST, SFC), coordinates I/O module communication via the S800 I/O bus or Fieldbus (PROFIBUS, FOUNDATION Fieldbus, Modbus), and maintains synchronization with the engineering workstation via OPC DA/UA or ABB’s Control Builder M software environment.
Signal flow: Field Instruments → S800 I/O Modules → AC800M Backplane Bus → 3BHE029153R0101 Control Board → Control Builder M / OPC Server → SCADA / HMI Layer
Sourcing & Quality Verification
All ABB modules supplied by Konmask.com undergo a structured incoming inspection protocol:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and serial number cross-reference against ABB part databases
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards for transit protection
- Full traceability documentation available upon request (test reports, photos, CoC)
Procurement Process
- Inquiry: Submit your RFQ via email to support@konmask.com or call +0086 19859288691
- Quotation: Receive a formal quotation with lead time, unit price, and shipping options within 24 hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued
- Payment: T/T bank transfer, PayPal, or credit card accepted
- Dispatch: Module shipped with tracking number and commercial invoice for customs clearance
- After-Sales: 12-month warranty; technical support available from Konmask engineering team
Technical FAQ
Q: Is the 3BHE029153R0101 compatible with all AC800M controller variants?
A: This board is designed for the AC800M platform. Compatibility depends on the specific controller model and firmware version. Contact Konmask with your existing controller part number for a compatibility confirmation before ordering.
Q: Can this module be used in a redundant controller configuration?
A: Yes. The AC800M platform supports hot-standby redundancy. This control board is compatible with redundant pair configurations when used with the appropriate redundancy module (e.g., 3BSE018877R1).
Q: What is the difference between new and refurbished units?
A: New units are unused OEM stock. Refurbished units have been professionally cleaned, tested, and restored to full operational specification. Both carry Konmask’s 12-month warranty. Please specify your preference at inquiry stage.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and inspection report can be provided upon request for all units shipped from Konmask.com.
Q: What is the typical lead time for out-of-stock units?
A: For units not in current stock, lead time is typically 2–4 weeks depending on global supply chain availability. Contact us for real-time stock status.
