ABB DSTDW130 57160001-YX – Relay Input Module | Advant Master DCS Platform
Engineering Background

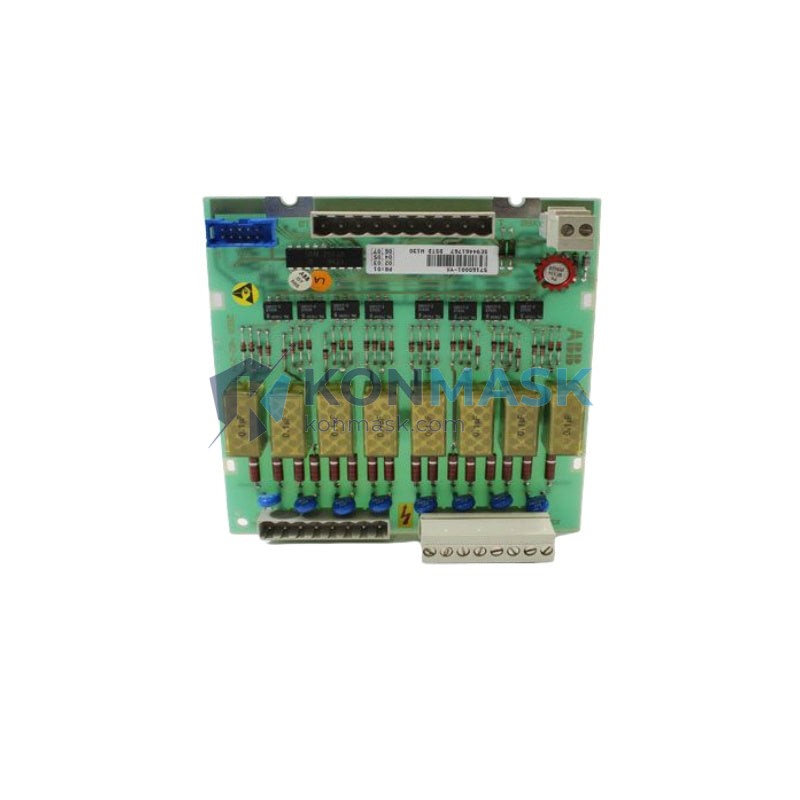

The ABB DSTDW130 (part number 57160001-YX) is a relay input module engineered for the ABB Advant Master Distributed Control System (DCS). Designed to interface field-level relay contact signals with the DCS controller, this module is a critical I/O component in process automation architectures across power generation, oil & gas, chemical, and heavy industrial plants. Its robust design reflects ABB’s decades of expertise in industrial control hardware, ensuring reliable signal acquisition in electrically noisy environments.
Product Positioning
The DSTDW130 serves procurement engineers and maintenance teams seeking a direct OEM-equivalent replacement or expansion module for existing Advant Master installations. Konmask.com supplies this module from verified inventory channels, offering a dependable sourcing alternative to extended OEM lead times.
Complete Technical Specifications
- Manufacturer: ABB (ASEA Brown Boveri)
- Part Number: DSTDW130
- Order Code: 57160001-YX
- Module Type: Relay Input Module
- Platform: ABB Advant Master DCS
- Country of Origin: Sweden
- Signal Type: Relay contact / dry contact digital input
- Input Channels: Multiple relay contact input channels (per ABB Advant Master I/O specification)
- Communication: Advant Master backplane bus interface
- Mounting: DIN rail / Advant Master subrack
- Operating Temperature: 0°C to +55°C (standard industrial range)
- Weight: Approx. 400 g
- Compliance: CE marked; meets IEC 61131-2 industrial control equipment standards
Proven Application Environments
- Power generation plants (thermal, hydro, nuclear auxiliary systems)
- Oil & gas upstream and downstream process control
- Chemical and petrochemical plant DCS architectures
- Pulp and paper manufacturing automation
- Water treatment and utility infrastructure
- Steel and metals processing facilities
Engineering Advantages
- Direct OEM Compatibility: Plug-and-play replacement within existing ABB Advant Master subrack configurations — no firmware modification required.
- High Noise Immunity: Relay contact input architecture provides galvanic isolation, eliminating ground loop interference common in industrial field wiring.
- Long Service Life: ABB Advant Master hardware is engineered for 15–20 year operational cycles, making spare module availability critical for plant continuity.
- Reduced Downtime Risk: Stocking a verified spare eliminates unplanned shutdown exposure caused by module failure and OEM lead times of 12–26 weeks.
- Backward Compatibility: Compatible with all Advant Master controller generations supporting the DSTDW-series I/O family.
System Architecture & Signal Flow
In an Advant Master DCS architecture, the DSTDW130 occupies an I/O subrack slot and communicates with the Master controller via the proprietary Advant backplane bus. Field relay contacts are wired to the module’s terminal block. Upon contact closure or opening, the module converts the discrete signal state to a digital value transmitted to the controller for logic processing, alarming, or interlock execution. The module supports the standard Advant Master I/O addressing scheme, enabling seamless integration into existing controller configuration databases without re-engineering.
Sourcing & Quality Verification
- Inventory Status: Available from Konmask.com verified stock
- Condition: New surplus or refurbished-to-spec (confirmed prior to shipment)
- Inspection: Each unit undergoes visual inspection and functional verification before dispatch
- Packaging: Anti-static ESD packaging with protective foam insert
- Documentation: Certificate of conformity available upon request
- Warranty: 12-month Konmask warranty covering manufacturing defects
Procurement Process
- Submit your RFQ via [email protected] or call +0086 19859288691
- Receive a formal quotation with lead time and shipping options within 24 hours
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted
- Module ships within 1–3 business days; express DHL/FedEx available
- Tracking number and commercial invoice provided for customs clearance
Technical FAQ
Q: Is the DSTDW130 compatible with all ABB Advant Master controller versions?
A: Yes. The DSTDW130 is compatible with all Advant Master controller generations that support the DSTDW-series I/O family. Verify your subrack slot assignment in your existing I/O configuration database.
Q: Can Konmask provide the original ABB datasheet?
A: Yes. Contact us at [email protected] and we will supply the original ABB technical datasheet and installation manual upon request.
Q: What is the lead time for this module?
A: In-stock units ship within 1–3 business days. If not in stock, typical sourcing lead time is 2–4 weeks. Contact us for real-time availability.
Q: Do you accept returns?
A: Yes. We accept returns within 30 days for unused modules in original packaging. Defective units are covered under our 12-month warranty.
Q: Can you supply multiple units for a plant-wide spare parts program?
A: Yes. We support bulk procurement and can provide volume pricing for quantities of 5 or more units. Contact us for a tailored quotation.
