Vibration Monitoring Solution – Bently Nevada 16710-45 | 3300 Series Proximity System
Where This Product Is Used

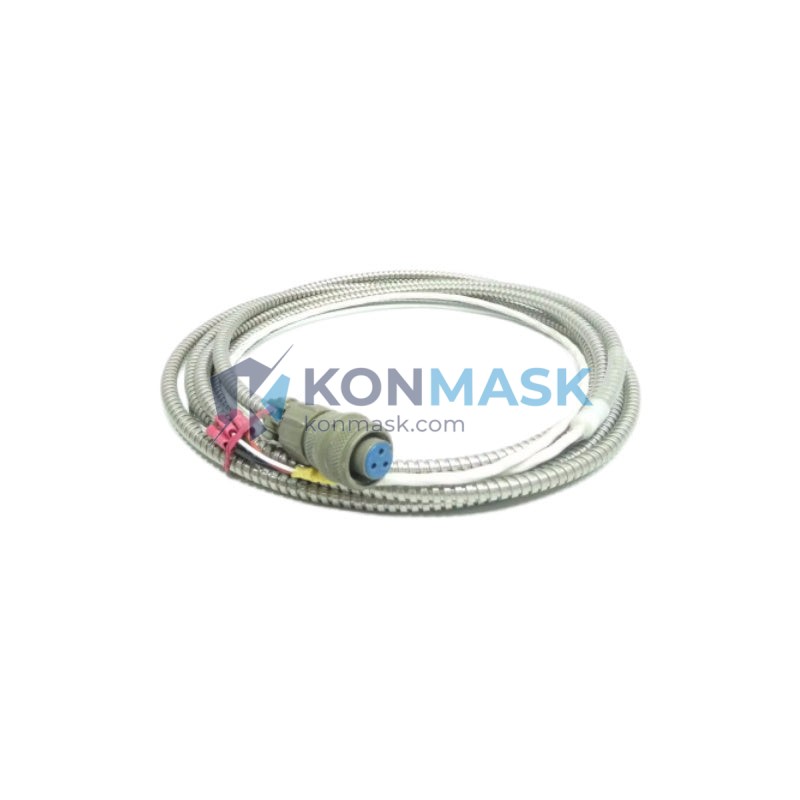

The Bently Nevada 16710-45 Interconnect Cable is a precision-engineered signal cable designed for use within the 3300 Series Proximity Transducer System. It is deployed in mission-critical rotating machinery monitoring applications across the following industries:
- Oil & Gas: Centrifugal compressors, gas turbines, and pipeline pumping stations where continuous shaft vibration monitoring is mandatory per API 670.
- Power Generation: Steam turbines and hydro-generators requiring real-time radial vibration and axial position measurement.
- Petrochemical & Refining: Reactor feed pumps, expanders, and blowers in hazardous-area installations.
- Marine & Offshore: Propulsion turbines and auxiliary machinery on FPSOs and offshore platforms.
- Pulp & Paper / Heavy Industry: High-speed rotating equipment where unplanned downtime carries severe production cost.
In each environment, the 16710-45 serves as the critical signal path between the proximity probe and the Proximitor® sensor, ensuring low-noise, impedance-matched transmission of the eddy-current displacement signal.
Technical Specifications
- Part Number: 16710-45
- Series: 3300 Proximity Transducer System
- Manufacturer: Bently Nevada (Baker Hughes)
- Cable Type: Interconnect / Extension Cable
- Compatible Probes: 3300 Series 8mm & 11mm proximity probes
- Compatible Proximitor: 3300 XL 8mm / 11mm Proximitor® Sensor
- Cable Length: 45 cm (nominal; verify with system gap voltage requirements)
- Connector Type: Coaxial, factory-terminated
- Temperature Range: –55 °C to +125 °C (cable jacket)
- Weight: Approx. 400 g
- Country of Origin: USA
Why Engineers Specify This Model
- System Integrity: Factory-matched to the 3300 Series probe/Proximitor pair; substituting non-OEM cables introduces impedance mismatch and gap voltage error.
- Signal Fidelity: Precision coaxial construction minimizes capacitance variation, preserving the linear output range (–18 VDC nominal) required by Bently Nevada monitors.
- Hazardous-Area Compatibility: Designed to support intrinsically safe (IS) installations when used with approved barriers and Proximitor configurations.
- Plug-and-Play Replacement: Drop-in replacement for existing 3300 Series installations; no recalibration of the Proximitor required when cable length is unchanged.
- Long Service Life: Fluoropolymer jacket resists hydrocarbons, steam, and cleaning solvents common in turbomachinery environments.
Complete System Bill of Materials
The 16710-45 is one component of a complete 3300 Series proximity measurement chain. A typical BOM includes:
- Proximity Probe – e.g., 330103-00-08-10-02-00 (8mm, 1m armored)
- Interconnect Cable – 16710-45 (this item)
- Proximitor® Sensor – e.g., 330180-X1-05 (3300 XL 8mm)
- Monitor Module – e.g., 3500/42M Proximitor®/Seismic Monitor
- I/O Module & Rack – 3500 Series rack with appropriate I/O
- Barrier (if IS installation) – Zener or galvanic isolator per system design
Contact support@konmask.com for complete system sourcing assistance.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition): The 3300 Series system, including this cable, is designed to meet API 670 requirements for radial vibration, axial position, and phase reference measurement.
- IEC 60079 – Explosive Atmospheres: Compatible with IS-rated system configurations.
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines.
- CE Marking: Applicable to Bently Nevada 3300 Series system components.
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation and condition monitoring components for B2B buyers. Every Bently Nevada part we supply is:
- Sourced from authorized distribution channels or verified surplus with full traceability documentation.
- Inspected for physical integrity, connector condition, and jacket continuity prior to dispatch.
- Shipped with original manufacturer packaging where available.
- Supported by our technical team for pre-sale compatibility verification and post-sale commissioning queries.
How to Source This Part
- In Stock: Add to cart and proceed to checkout. We ship globally with DHL Express, FedEx, and UPS.
- Lead Time Orders: Contact us with your required quantity and delivery schedule for a formal quotation.
- System Packages: Require the full 3300 Series probe/cable/Proximitor set? Email support@konmask.com with your tag list and we will prepare a complete BOM quote.
- Urgent Shutdown Requirements: Call or WhatsApp +0086 19859288691 for expedited sourcing.
Application-Specific FAQ
Q: Can I use the 16710-45 with a 7200 Series probe?
A: No. The 16710-45 is designed exclusively for the 3300 Series system. The 7200 Series uses a different impedance specification and connector standard.
Q: Does changing the interconnect cable length affect system calibration?
A: Yes. The total cable system length (probe + interconnect) determines the Proximitor gap voltage output. Always verify the combined length matches the original system design. Contact us if you need a different length.
Q: Is this cable suitable for outdoor or subsea installations?
A: The standard 16710-45 is rated for industrial environments. For subsea or extreme outdoor exposure, consult Bently Nevada’s application engineering for armored variants.
Q: What is the lead time if not in stock?
A: Typical lead time is 2–4 weeks for new stock. Expedited sourcing from verified surplus may be available within 3–5 business days. Contact us for current availability.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. A CoC is available upon request for all orders. Please specify at time of order.
