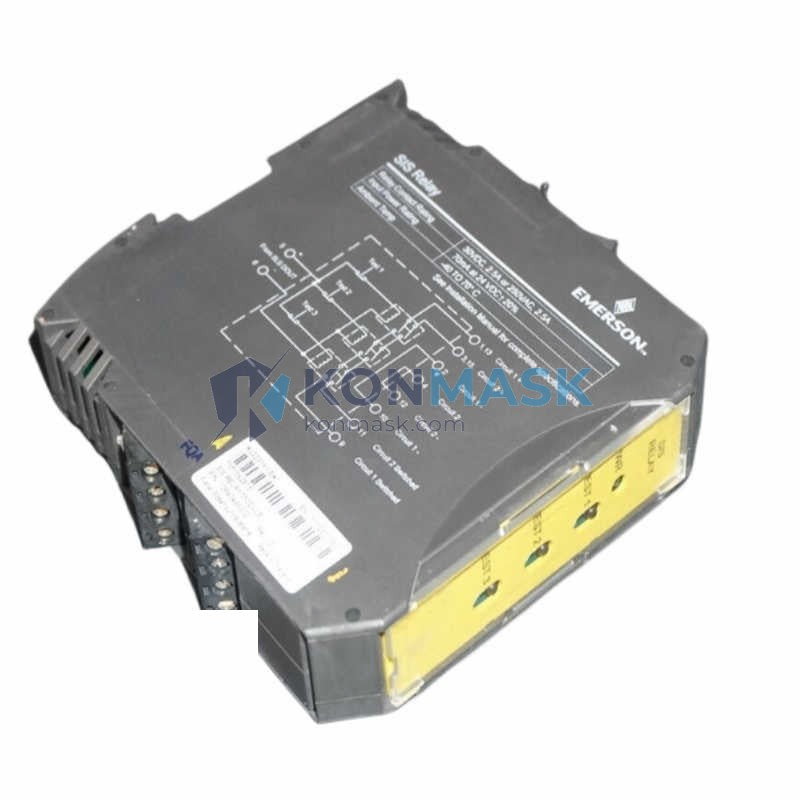

Genuine EMERSON KJ2231X1-EA1 - Industrial Automation Part

EMERSON KJ2231X1-EA1 Relay Module | DeltaV Series

SKU: KJ2231X1-EA1 Category: Emerson Tags: DeltaV, Emerson, KJ2231X1-EA1, PLC module, relay-module

Description

EMERSON KJ2231X1-EA1 – Relay Output Module | DeltaV Series Platform

Engineering Background

The KJ2231X1-EA1 is a relay output module designed for Emerson’s DeltaV distributed control system (DCS) platform — one of the most widely deployed process automation architectures in refining, chemical, pharmaceutical, and power generation industries. Relay output modules serve as the critical interface between the DCS controller and field-side actuators, contactors, solenoids, and alarm annunciators, converting digital control signals into hardwired switching actions.

Product Positioning

Engineered for demanding continuous-process environments, the KJ2231X1-EA1 delivers reliable isolated relay switching with the tight integration and diagnostics expected of DeltaV I/O subsystems. It is the preferred choice for procurement engineers replacing end-of-life modules, expanding existing DeltaV cabinets, or building out new marshalling panels where relay-grade output isolation is required.

Complete Technical Specifications

Part Number	KJ2231X1-EA1
Manufacturer	Emerson Electric / Fisher-Rosemount
Module Type	Relay Output Module
Platform	DeltaV DCS Series
Output Type	Relay (dry contact / isolated)
Number of Channels	8 relay output channels (typical for series)
Contact Rating	Up to 2A @ 30 VDC / 0.5A @ 125 VAC (verify with datasheet)
Isolation	Channel-to-channel and channel-to-bus isolation
Communication Bus	DeltaV I/O bus (proprietary backplane)
Mounting	DeltaV I/O carrier / marshalling cabinet
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% RH, non-condensing
Power Consumption	Per DeltaV I/O bus specification
Weight	Approx. 400 g
Certifications	CE, UL (verify current listing)
Firmware	Managed via DeltaV system software

Note: Always cross-reference with the official Emerson DeltaV hardware datasheet for your specific firmware revision and system version.

Proven Application Environments

Oil & Gas Refining — Pump start/stop interlocks, ESD solenoid valve control, compressor seal system switching
Chemical & Petrochemical — Reactor agitator control, dosing pump enable/disable, alarm horn/beacon activation
Pharmaceutical & Biotech — CIP/SIP valve sequencing, clean-room HVAC damper control, batch process interlocks
Power Generation — Auxiliary equipment switching, breaker status feedback, cooling system control
Pulp & Paper / Food & Beverage — Conveyor motor control, level switch outputs, sanitary valve actuation
Water & Wastewater Treatment — Pump station control, dosing system enable, alarm relay outputs

Engineering Advantages

True Relay Isolation — Hardwired relay contacts provide galvanic isolation between the DCS logic bus and field wiring, protecting controller electronics from field-side transients and ground loops.
DeltaV Native Integration — Plug-and-play compatibility with DeltaV I/O carriers; module is auto-recognized by DeltaV Explorer for zero-configuration commissioning.
Online Diagnostics — DeltaV system software provides continuous module health monitoring, coil status feedback, and fault alarming without process interruption.
Hot-Swap Capable — Supports live module replacement on compatible DeltaV carriers, minimizing planned downtime during maintenance windows.
Proven Field Reliability — Emerson DeltaV relay modules are installed in thousands of process plants globally with documented MTBF exceeding 10 years in typical operating conditions.
Compact Form Factor — Standard DeltaV module footprint allows high-density I/O marshalling in space-constrained control rooms and satellite cabinets.

System Architecture & Signal Flow

The KJ2231X1-EA1 mounts onto a DeltaV I/O carrier, which connects to the DeltaV controller via the proprietary I/O bus. The DeltaV controller writes digital output values to the module over the backplane. Each channel drives an internal relay coil; the relay contacts switch the field-side circuit independently of the bus voltage. Field wiring terminates at the carrier’s screw terminals or marshalling connectors. The DeltaV system continuously reads back coil energization status and reports module diagnostics to the operator workstation via the DeltaV data highway.

DeltaV Controller
      │
  I/O Bus (backplane)
      │
 KJ2231X1-EA1 Module
      │
  Relay Coil (per channel)
      │
  Relay Contact (isolated)
      │
  Field Device (solenoid / contactor / alarm)
