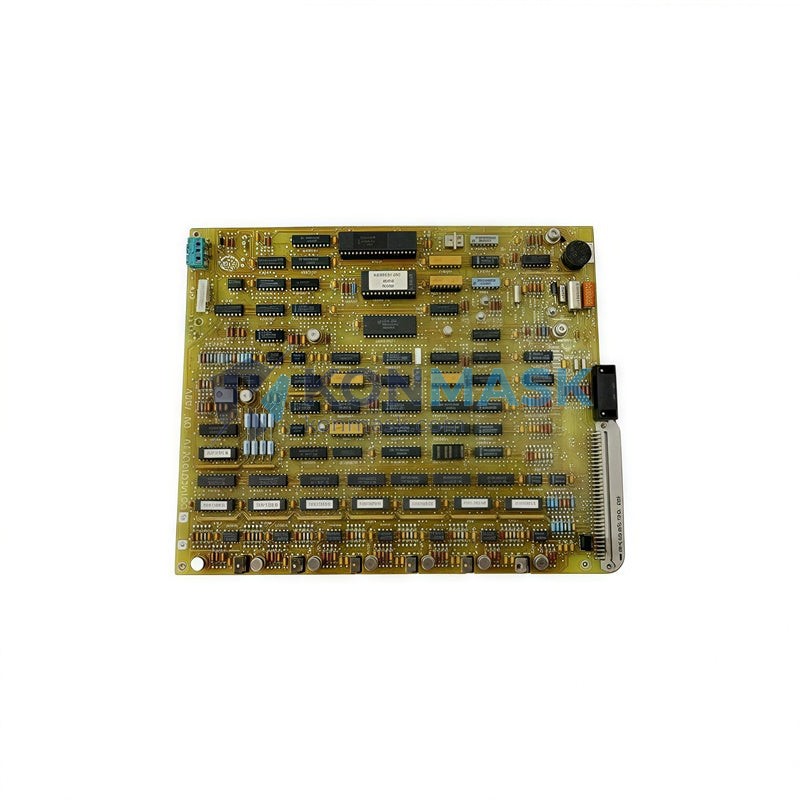

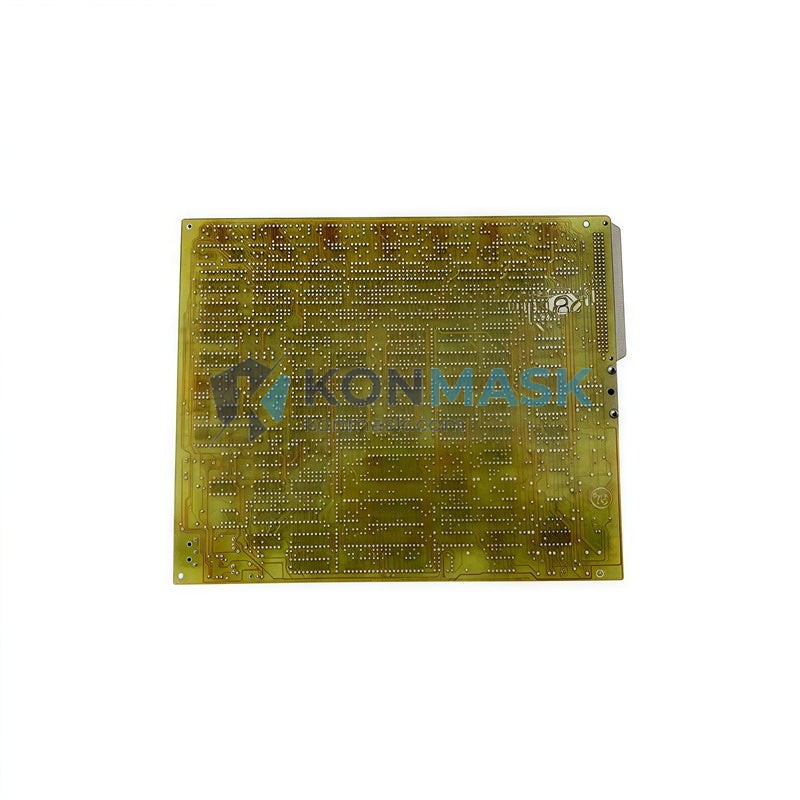

Honeywell 51304483-100 Analog Output Module | Replacement, Equivalent & Selection Guide
The Honeywell 51304483-100 is a field-proven Analog Output Module designed for the Honeywell TDC 3000 / TotalPlant DCS platform — one of the most widely deployed distributed control systems in the process industries. This page provides procurement engineers and control system integrators with a comprehensive selection guide, including compatible replacements, equivalent alternatives, and cross-reference data to support both maintenance and system upgrade decisions.
Technical Specifications
- Part Number / SKU: 51304483-100
- Manufacturer: Honeywell Process Solutions
- Series / Platform: TDC 3000 / TotalPlant DCS (HPM / LCN Architecture)
- Module Type: Analog Output Module (AO)
- Output Signal: 4–20 mA DC (current loop, HART-compatible per revision)
- Output Channels: Multi-channel (confirm channel count against your HPM slot configuration)
- Output Resolution: 12-bit or 16-bit DAC (revision-dependent)
- Load Impedance: Up to 750 Ω per channel (typical 4–20 mA loop)
- Isolation: Channel-to-channel and channel-to-backplane optical isolation
- Backplane Interface: TDC 3000 HPM I/O Link bus
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5–95% non-condensing
- Power Consumption: Per HPM rack power budget (consult Honeywell HPM IOM)
- Weight: 1,200 g (approx.)
- Protection Class: IP20 (panel-mount, HPM rack installation)
- Certifications: UL, CE, FM (per applicable revision)
- Country of Origin: USA
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or functional equivalents for the 51304483-100. Always verify firmware revision, channel count, and HPM slot compatibility before substitution:
- 51304483-150 — Revised hardware revision of the same base module; direct drop-in candidate. Confirm suffix compatibility with your HPM firmware version.
- 51304483-200 — Higher-revision variant; may include HART pass-through enhancement. Verify HPM IOM revision requirements.
- 51309276-175 / 51309276-225 — Analog Output modules from the same TDC 3000 HPM I/O family; cross-reference channel count and signal range before substitution.
- 51401544-175 — Analog Output module used in Honeywell Experion PKS migration kits; suitable for hybrid TDC 3000 / Experion architectures.
- Honeywell Experion C300 AO Module (51309276-xxx series) — For sites migrating from TDC 3000 to Experion PKS; requires migration engineering and I/O termination adapter.
- Third-party HART AO modules (Moore Industries, Pepperl+Fuchs) — Field-mount alternatives for individual loop replacement; not rack-compatible but viable for isolated channel failures.
⚠ Substitution Note: Honeywell HPM modules use firmware-linked hardware revisions. Always match the suffix (-100, -150, -200) to your HPM firmware release. Contact Konmask engineering for cross-reference confirmation.
Why Choose the Original Model
- Zero Configuration Risk: The 51304483-100 is a certified OEM module — no firmware changes, no HPM database modifications, no re-commissioning required for like-for-like replacement.
- Validated Signal Integrity: Factory-calibrated 4–20 mA output with Honeywell-certified accuracy; eliminates field calibration risk during emergency replacement.
- HPM Slot Compatibility Guaranteed: Designed to the exact HPM I/O Link electrical and mechanical specification — no adapter, no rework.
- Regulatory Compliance Continuity: Maintains existing SIL, FM, and CE certifications for safety-instrumented and hazardous-area installations without re-validation.
- Long-Term Spare Parts Strategy: Stocking OEM modules reduces lifecycle risk for TDC 3000 systems with 10–20+ year remaining service life.
Typical Applications
- Refinery crude distillation and hydrocracking unit control loops
- Petrochemical reactor temperature and pressure control outputs
- LNG liquefaction and regasification plant DCS panels
- Power generation boiler and turbine control systems
- Pharmaceutical batch reactor and fermentation control
- Pulp & paper digester and recovery boiler automation
- Water treatment chemical dosing and flow control
- Legacy TDC 3000 life-extension and spare parts programs
System Compatibility
- DCS Platform: Honeywell TDC 3000 (HPM — High-Performance Process Manager)
- Rack Compatibility: HPM I/O Link racks (standard and extended configurations)
- Firmware Dependency: HPM firmware R500 and above (confirm suffix against your release)
- Termination Assembly: Requires matching Honeywell FTA (Field Termination Assembly) — confirm FTA model against channel count and signal type
- HART Compatibility: HART pass-through supported on applicable revisions (verify with HPM IOM documentation)
- Experion PKS Migration: Compatible with Honeywell Series C migration architecture using appropriate I/O Link bridge modules
Selection Guide
Use the following decision matrix to select the correct module for your application:
- Like-for-like emergency replacement (same HPM firmware): → Order 51304483-100 directly. No engineering review required.
- Replacement with firmware upgrade: → Evaluate 51304483-150 or -200. Confirm HPM firmware release notes for hardware revision compatibility.
- Channel count expansion: → Review HPM I/O Link slot budget and FTA wiring capacity before selecting higher-density AO modules.
- HART integration requirement: → Specify HART-enabled revision; confirm HPM HART multiplexer configuration.
- Migration to Experion PKS: → Engage Honeywell migration engineering or contact Konmask for Series C migration module selection.
- Budget-constrained maintenance: → Tested-used or refurbished 51304483-100 units available; condition certificate provided. Contact Konmask for stock status.
Quality Assurance & Sourcing
- Source: Authorized distributors, OEM surplus, and verified industrial resellers with documented chain of custody.
- Inspection Protocol: Visual inspection (label, connector, housing integrity), functional power-on test, and 4–20 mA output verification on all channels prior to shipment.
- Authenticity Screening: Serial number and date code traceability maintained. Counterfeit-risk screening applied per industry best practices.
- Condition Disclosure: New, refurbished, or tested-used stock clearly stated at quotation. All units ship with condition certificate.
- Packaging: Anti-static bag + foam-lined carton; IEC 61340-5-1 ESD packaging compliance.
How to Order
- Confirm Part Number & Suffix: Verify 51304483-xxx suffix against your HPM firmware release and FTA model.
- Request Quote: Contact Konmask via this page or email [email protected] with quantity, required suffix, and delivery date.
- Order Confirmation: PO accepted; stock condition and lead time confirmed in writing.
- Quality Check & Dispatch: Unit tested, documented, and shipped with tracking. Typical dispatch 1–3 business days for in-stock units.
- After-Sales Support: Technical support available for installation verification, FTA compatibility, and HPM firmware cross-reference questions.
Replacement & Compatibility FAQ
Q: Can the 51304483-150 replace the 51304483-100 without HPM reconfiguration?
A: In most cases yes, if your HPM firmware supports the -150 revision. Always verify the HPM firmware release notes before substitution. Contact Konmask for confirmation.
Q: What FTA (Field Termination Assembly) is required for the 51304483-100?
A: The FTA model depends on channel count and signal type. Common FTAs include the 51196893-100 and 51304516-100 series. Provide your HPM slot drawing for exact FTA confirmation.
Q: Is HART communication supported?
A: HART pass-through is supported on applicable hardware revisions. Confirm your module suffix and HPM HART multiplexer configuration with Honeywell documentation or contact Konmask.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 5–15 business days. Expedited sourcing available upon request.
Q: Do you provide a warranty?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty available for volume orders.
Q: Can I return a unit if it is incompatible?
A: Returns accepted within 30 days for unused units in original packaging. Contact [email protected] before returning.
