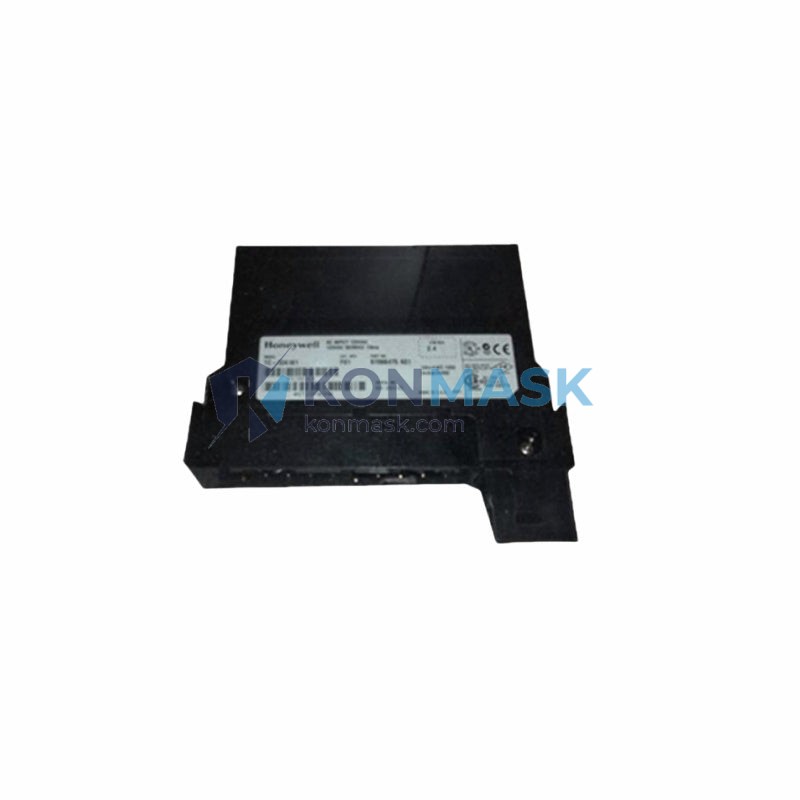

Honeywell 900TCK-0101 / 900H32-0102 – TotalPlant Solution (TPS) DCS Communication Card
Engineering Background
The Honeywell TotalPlant Solution (TPS) platform represents Honeywell’s flagship distributed control architecture, widely deployed across refining, petrochemical, power generation, and advanced manufacturing facilities worldwide. The TPS system integrates process control, data acquisition, and plant-wide communication into a unified, fault-tolerant architecture designed for continuous 24/7 operation in safety-critical environments.
Product Positioning
The 900TCK-0101 and its companion module 900H32-0102 serve as the communication backbone within TPS controller nodes, enabling high-speed, deterministic data exchange between field I/O subsystems and the Universal Control Network (UCN). These cards are essential for maintaining real-time process visibility and control loop integrity in large-scale DCS installations. Procurement engineers sourcing replacement or spare units will find these modules critical for sustaining system uptime and avoiding costly unplanned shutdowns.
Complete Technical Specifications
| Part Numbers | 900TCK-0101 / 900H32-0102 |
| Manufacturer | Honeywell Process Solutions |
| Platform / Series | TotalPlant Solution (TPS) / TDC 3000 |
| Module Type | DCS Communication Card |
| Communication Protocol | Universal Control Network (UCN) / Local Control Network (LCN) |
| Form Factor | Card-module, rack-mounted |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Power Supply | Supplied via backplane (TPS standard rack) |
| Compatibility | Honeywell TPS / TDC 3000 controller chassis |
| Approvals | CE, UL (per TPS platform certification) |
| Weight | Approx. 300 g |
| Country of Origin | United States |
Proven Application Environments
- Oil & Gas Refining: Continuous process control in crude distillation, hydrotreating, and catalytic cracking units
- Petrochemical Plants: Ethylene, polyethylene, and ammonia production facilities requiring deterministic control loops
- Power Generation: Boiler management systems, turbine control, and balance-of-plant automation in coal, gas, and nuclear stations
- Pulp & Paper: Digester control, bleaching sequences, and recovery boiler management
- Pharmaceutical Manufacturing: Batch process control with full audit trail and 21 CFR Part 11 compliance environments
- Chemical Processing: Reactor temperature and pressure control in continuous and batch operations
Engineering Advantages
- Deterministic Communication: UCN/LCN architecture guarantees bounded latency for time-critical control loops, eliminating Ethernet-style collision uncertainty
- Hot-Standby Redundancy Support: Designed for use in redundant controller configurations, enabling bumpless switchover without process interruption
- Proven Long-Term Reliability: TPS platform modules are engineered for 15–20 year service life in harsh industrial environments
- Backward Compatibility: Maintains interoperability with legacy TDC 3000 infrastructure, protecting existing capital investment
- Simplified Diagnostics: Onboard LED status indicators and TPS system-level fault reporting accelerate troubleshooting and reduce MTTR
System Architecture & Signal Flow
Within the TPS architecture, the 900TCK-0101 / 900H32-0102 card resides in the controller node chassis and interfaces directly with the UCN coaxial network. Signal flow proceeds as follows:
- Field Instruments → I/O Processor (IOP) modules via field wiring termination assemblies
- IOP Modules → High-Performance Process Manager (HPPM) or Process Manager (PM) via backplane bus
- Communication Card (900TCK-0101 / 900H32-0102) → UCN network segment at up to 5 Mbps token-passing protocol
- UCN Network → Network Interface Module (NIM) → LCN plant-wide supervisory network
- LCN → Operator Stations (US/GUS), History Modules, Application Modules
This layered architecture ensures process data integrity from field sensor to operator console, with each layer providing independent fault detection and isolation.
Sourcing & Quality Verification
All Honeywell TPS modules supplied by Konmask.com undergo a rigorous multi-stage verification process before dispatch:
- Visual Inspection: PCB condition, connector integrity, label authenticity, and absence of counterfeit indicators
- Functional Bench Test: Power-on self-test (POST) verification and communication handshake confirmation where test equipment permits
- Firmware Version Check: Revision level documented and disclosed prior to shipment
- ESD-Safe Packaging: Anti-static bags, foam cushioning, and moisture barrier packaging for international transit
- Traceability Documentation: Serial number, firmware revision, and inspection record provided with each unit
Procurement Process
- Inquiry Submission: Contact support@konmask.com or call +0086 19859288691 with your part number, required quantity, and delivery timeline
- Stock Confirmation & Quote: Our technical team confirms availability, firmware revision, and provides a formal quotation within 1 business day
- Order Placement: Purchase order accepted via email; payment terms available for qualified accounts
- Quality Inspection & Documentation: Pre-shipment inspection report and packing list issued
- Shipping: DHL / FedEx / UPS express available; EXW, FOB Xiamen, or CIF terms negotiable
- After-Sales Support: 12-month warranty on verified units; technical support available for integration assistance
Technical FAQ
Q: Is the 900TCK-0101 compatible with both TPS and TDC 3000 systems?
A: Yes. The 900TCK-0101 / 900H32-0102 is designed for the TPS platform and maintains backward compatibility with TDC 3000 controller chassis configurations.
Q: Can this card be used in a redundant controller configuration?
A: Yes. TPS controller nodes support redundant communication card pairs. Consult your TPS system documentation for specific slot assignments and redundancy configuration procedures.
Q: What firmware revision is supplied?
A: Firmware revision is confirmed and disclosed at the time of quotation. Please specify any minimum firmware requirements in your inquiry.
Q: Do you provide a test report or certificate of conformance?
A: Yes. A pre-shipment inspection record is provided with every unit. Certificate of Conformance (CoC) is available upon request.
Q: What is the lead time for this part?
A: In-stock units ship within 3–5 business days. For out-of-stock items, lead time is typically 2–4 weeks depending on sourcing channel.
