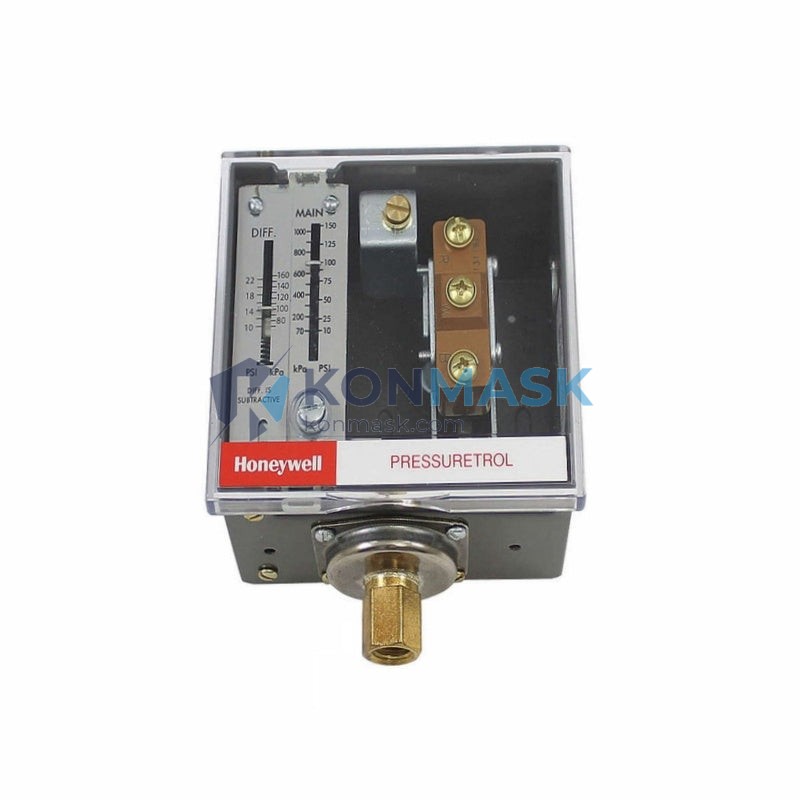

Honeywell L404F1102 – Steam Boiler Pressuretrol Controller | Honeywell Home HVAC Series
Engineering Background
The Honeywell L404F1102 Pressuretrol Controller is a field-proven pressure sensing and switching device engineered specifically for residential and light commercial steam heating boiler systems. Designed to the exacting standards of Honeywell’s HVAC Controls division, this unit has served as the industry benchmark for steam pressure regulation for decades.
Product Positioning
Procurement engineers and HVAC system integrators specify the L404F1102 when they require a dependable, code-compliant pressure controller with a well-documented performance envelope. It is the direct replacement and upgrade path for legacy Pressuretrol installations across North American steam heating infrastructure.
Complete Technical Specifications
- Model / SKU: L404F1102
- Brand: Honeywell / Honeywell Home
- Series / Platform: Pressuretrol® L404 Series
- Function: Steam boiler pressure limit and operating control
- Sensing Element: Bellows-type pressure sensor
- Pressure Range (Cut-In): 0.5 – 10 PSI adjustable
- Differential (Cut-Out): 1 – 4 PSI adjustable
- Electrical Rating: 120 VAC, 60 Hz, 6 A full load / 36 A locked rotor
- Contact Output: SPDT (Single Pole Double Throw)
- Enclosure: NEMA 1 general-purpose indoor
- Conduit Entry: 1/2 in. NPT
- Pressure Connection: 1/8 in. NPT
- Operating Temperature: 32°F – 140°F (0°C – 60°C)
- Approvals: UL Listed, CSA Certified
- Weight: Approx. 100 g
- Country of Origin: United States
Proven Application Environments
- Residential steam heating boilers (single-pipe and two-pipe systems)
- Light commercial steam boiler installations
- Boiler pressure limit safety control (high-limit lockout)
- Operating pressuretrol for modulating burner cycles
- Direct replacement for: L404A, L404C, L404F legacy Pressuretrol models
Engineering Advantages
- Dual-function control: Serves as both operating controller and high-limit safety device depending on wiring configuration
- Field-adjustable setpoints: Main scale and differential scale independently adjustable without tools
- SPDT output: Enables both normally-open and normally-closed circuit integration for flexible BMS wiring
- Bellows sensing: Robust mechanical sensing element immune to electrical noise and EMI interference
- UL/CSA listed: Meets North American electrical safety codes for boiler control applications
- Proven longevity: Millions of installed units with documented service life exceeding 20 years in field conditions
System Architecture & Signal Flow
The L404F1102 connects to the boiler steam header via a 1/8 in. NPT pigtail siphon (recommended) to protect the bellows from live steam. The bellows assembly translates steam pressure into mechanical displacement, actuating the SPDT snap-action switch. In a standard operating pressuretrol configuration, the switch interrupts the burner circuit when the main scale setpoint is reached and re-energizes the burner when pressure drops below the cut-in threshold (main scale minus differential). In high-limit wiring, the normally-closed contact is used to provide a fail-safe lockout signal to the boiler control circuit.
Sourcing & Quality Verification
- All units sourced through authorized Honeywell distribution channels or verified surplus with full traceability
- Each unit inspected for: intact bellows assembly, calibrated scale markings, clean SPDT contacts, and undamaged conduit entry
- Original Honeywell packaging and documentation preserved where available
- Batch and date codes recorded for full supply chain traceability
- Konmask.com maintains a zero-counterfeit policy — units failing authentication are rejected and destroyed
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
- MOQ: 1 unit (no minimum order quantity)
- Volume Pricing: Available for orders of 10+ units — request a formal quotation
- Documentation: Commercial invoice, packing list, and certificate of conformance available on request
- Export: International shipping available; HS Code 9032.89 applies
- Payment: T/T, PayPal, and major credit cards accepted
Technical FAQ
Q: What is the difference between the L404F1102 and L404A1347?
A: The L404F1102 is the current production variant with updated scale markings and UL/CSA dual listing. The L404A is an earlier suffix; both are functionally interchangeable in standard steam boiler wiring.
Q: Can the L404F1102 be used as a high-limit control?
A: Yes. Wire the normally-closed (NC) contact in series with the burner circuit. Set the main scale to the desired maximum allowable pressure. The unit will lock out the burner if pressure exceeds the setpoint.
Q: Is a siphon loop required?
A: Honeywell strongly recommends a pigtail siphon on the pressure connection to prevent live steam from contacting the bellows, which extends service life significantly.
Q: What is the maximum allowable working pressure (MAWP)?
A: The L404F1102 is rated for steam systems operating up to 15 PSI, consistent with ASME Section IV low-pressure steam boiler standards.
