Industrial Motion Control Solution – KOLLMORGEN SERVOSTAR S403AM-CA | 443M-C Series
Where This Product Is Used

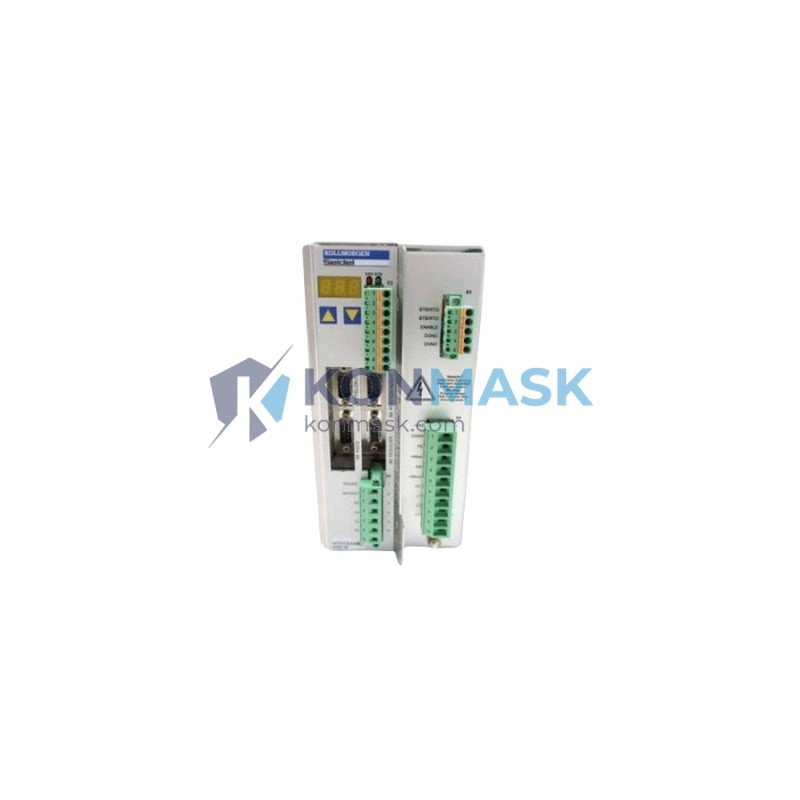

The KOLLMORGEN SERVOSTAR S403AM-CA (model code 443M-C) is a high-performance digital AC servo amplifier engineered for demanding industrial motion control environments. Engineers and system integrators specify this drive across a wide range of application sectors:
- CNC Machine Tools – Precision axis control for milling, turning, and grinding centers requiring sub-micron positioning repeatability.
- Robotics & Articulated Arms – Torque-dense servo control for multi-axis robotic joints in automotive assembly and electronics manufacturing.
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling lines demanding synchronized multi-axis motion.
- Semiconductor & Flat Panel Display Equipment – Ultra-smooth velocity control for wafer handling and stage positioning.
- Printing & Converting – Web tension control and register correction on high-speed press lines.
- Medical & Laboratory Automation – Quiet, precise actuation for diagnostic imaging gantries and liquid handling systems.
- Material Handling & Conveyors – Dynamic speed regulation for sortation, palletizing, and AGV drive systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | KOLLMORGEN |
| Series | SERVOSTAR 400 |
| Model / Part Number | S403AM-CA / 443M-C |
| Drive Type | Digital AC Servo Amplifier |
| Continuous Output Current | 3 A (rms) |
| Peak Output Current | 9 A (rms) |
| Supply Voltage | 115 / 230 VAC, Single or Three Phase |
| Feedback Interface | Resolver, Encoder (incremental / SinCos) |
| Communication | RS-232 / RS-485; optional PROFIBUS, CANopen, DeviceNet |
| Control Modes | Position, Velocity, Torque |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +45 °C |
| Weight | ~2.0 kg |
| HS Code | 8537.10 |
Why Engineers Specify This Model
- Compact Footprint – Slim bookshelf form factor minimizes cabinet space while delivering full servo performance.
- Universal Feedback Compatibility – Native resolver and encoder support eliminates the need for external interface cards in most motor pairings.
- Auto-Tuning Algorithm – KOLLMORGEN’s proprietary BODE-plot-based auto-tuning reduces commissioning time from hours to minutes.
- Multi-Protocol Fieldbus – Optional PROFIBUS-DP, CANopen, and DeviceNet modules allow seamless integration into existing PLC/DCS architectures.
- Proven Reliability – SERVOSTAR 400 series has accumulated millions of field hours across global OEM installations since its introduction.
- Safe Torque Off (STO) – Integrated SIL 2 / PLd safety function reduces external safety relay hardware.
Complete System Bill of Materials
For a fully operational servo axis using the SERVOSTAR S403AM-CA, engineers typically source the following complementary components:
- KOLLMORGEN AKM or Goldline servo motor (matched to 3 A continuous rating)
- Resolver or encoder feedback cable (shielded, twisted-pair)
- 24 VDC logic power supply (min. 2 A)
- Line filter / EMC filter (per CE/UL installation requirements)
- Braking resistor (application-dependent duty cycle)
- PROFIBUS / CANopen communication module (optional fieldbus expansion)
- KOLLMORGEN WorkBench commissioning software (free download)
Compliance & Industry Standards
- CE Marked – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL Listed – UL 508C (Power Conversion Equipment)
- RoHS Compliant
- IEC 61800-5-1 (Adjustable Speed Electrical Power Drive Systems – Safety)
- EN ISO 13849-1 PLd / IEC 62061 SIL 2 (Safe Torque Off function)
Quality Assurance & Sourcing
Every KOLLMORGEN SERVOSTAR S403AM-CA unit offered through Konmask.com undergoes the following verification process before shipment:
- Visual inspection for physical damage, corrosion, and label integrity
- Serial number traceability cross-referenced against manufacturer records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Certificate of conformance available upon request
We source from authorized distributors, OEM surplus, and verified industrial resellers. All units are sold with a 90-day warranty against defects in materials and workmanship.
How to Source This Part
Ready to order or need a formal quotation? Contact our industrial automation specialists:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
- Payment: T/T, PayPal, credit card, and LC accepted.
- Export: Worldwide shipping with full customs documentation (commercial invoice, packing list, CO).
Application-Specific FAQ
Q: Is the S403AM-CA compatible with third-party servo motors?
A: Yes. The SERVOSTAR 400 supports any resolver-based or incremental encoder motor. Motor data can be entered manually via WorkBench software or selected from the built-in motor database.
Q: Can this drive operate in a multi-axis synchronized system?
A: Yes. Via CANopen or PROFIBUS, multiple SERVOSTAR units can be coordinated by a master PLC or motion controller for electronic gearing and camming applications.
Q: What is the difference between S403AM-CA and 443M-C?
A: These are dual part-number designations for the same unit — S403AM-CA is the KOLLMORGEN catalog number while 443M-C is the legacy/OEM model code. Both refer to the identical hardware.
Q: Does this unit include the STO safety function?
A: The “-CA” suffix denotes the variant with integrated Safe Torque Off (STO), rated SIL 2 / PLd, eliminating the need for an external safety relay in most machine safety architectures.
Q: What software is required for commissioning?
A: KOLLMORGEN WorkBench (free download from kollmorgen.com) connects via RS-232/RS-485 and provides auto-tuning, oscilloscope, and parameter management functions.
