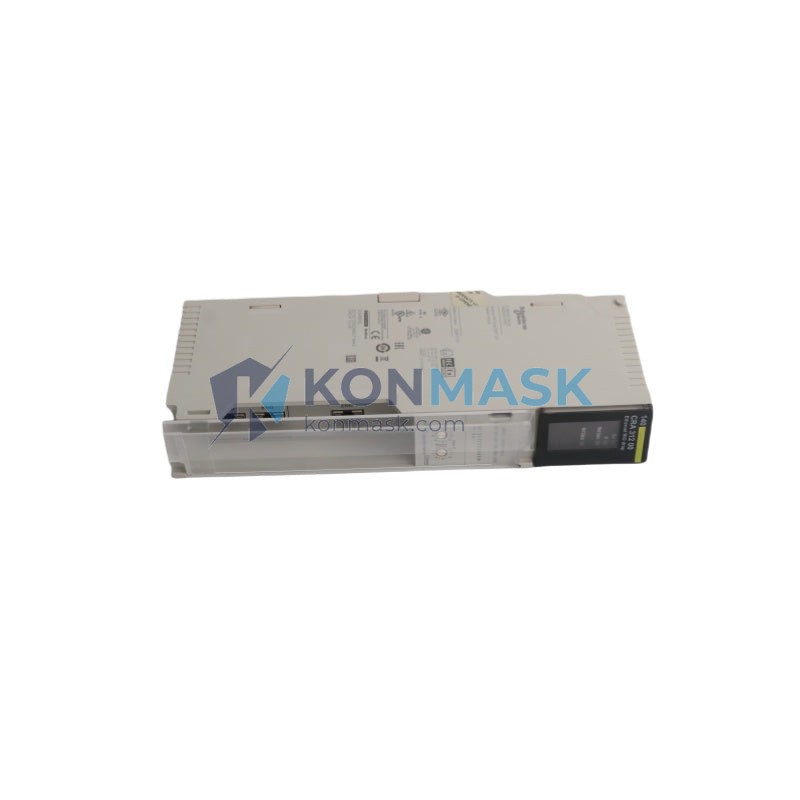

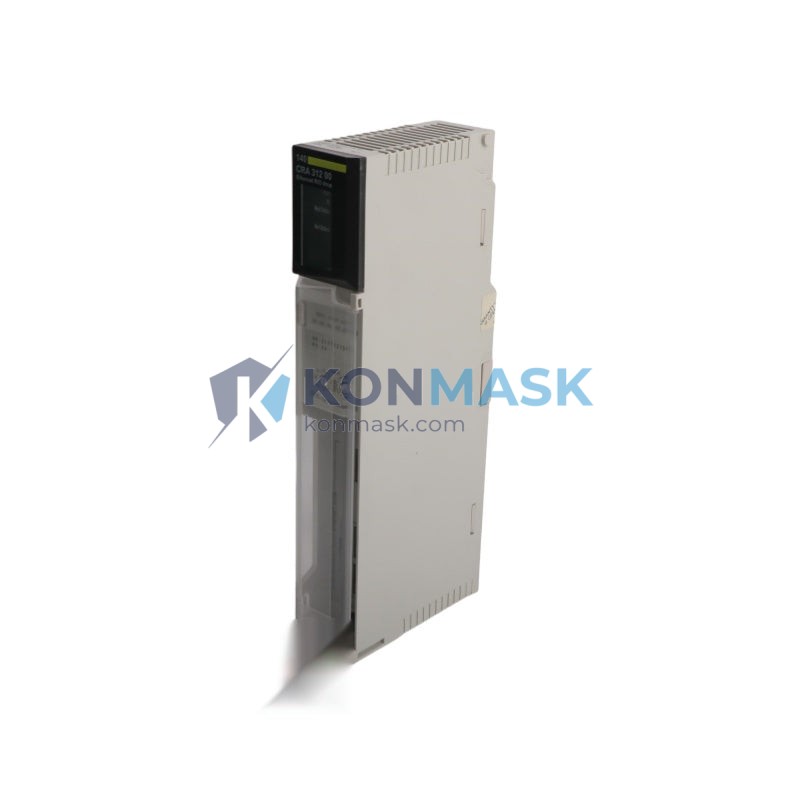

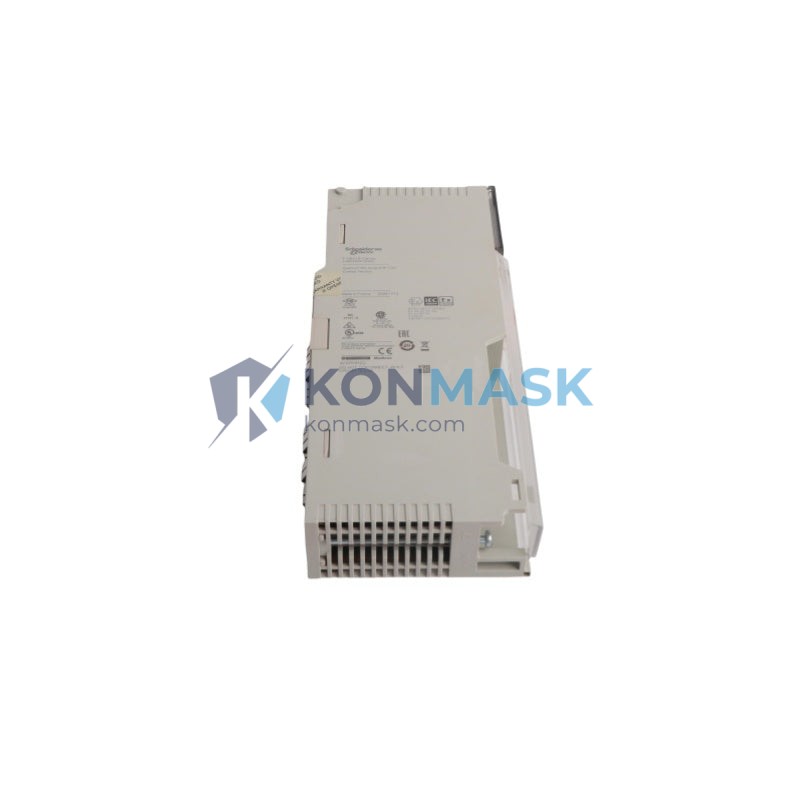

Schneider Electric 140NOE77111 – Ethernet TCP/IP Communication Module | Modicon Quantum Platform
Engineering Background
The 140NOE77111 is a high-performance Ethernet TCP/IP communication module designed for the Schneider Electric Modicon Quantum PLC platform — one of the most widely deployed process automation architectures in heavy industry, utilities, and critical infrastructure. This module enables seamless integration of Quantum racks into plant-wide Ethernet networks, supporting both real-time control data exchange and supervisory SCADA connectivity.
Product Positioning
Targeted at procurement engineers and system integrators sourcing certified replacement or expansion modules for existing Modicon Quantum installations, the 140NOE77111 delivers deterministic Modbus TCP/IP communication with full compatibility across the Quantum backplane ecosystem. Konmask.com supplies this module with full traceability and quality verification for B2B industrial procurement.
Complete Technical Specifications
| Part Number | 140NOE77111 |
| Manufacturer | Schneider Electric (Modicon) |
| Product Series | Modicon Quantum |
| Module Type | Ethernet TCP/IP Network Communication Module |
| Communication Protocol | Modbus TCP/IP, EtherNet/IP (read), HTTP, SNMP, BOOTP/DHCP |
| Network Speed | 10/100 Mbps, Auto-negotiation |
| Physical Interface | RJ45 (10BaseT / 100BaseTX) |
| Number of Ports | 1 × RJ45 Ethernet port |
| Max Simultaneous Connections | 64 TCP connections |
| Backplane Interface | Modicon Quantum local bus |
| Power Consumption | 3.5 W (from backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Weight | 360 g |
| Certifications | CE, UL, cUL, FM Class I Div 2 |
| Firmware | Upgradeable via network |
| Programming Software | Unity Pro / Control Expert |
| Country of Origin | France / USA (OEM) |
Proven Application Environments
- Oil & Gas: Upstream/downstream DCS integration, remote terminal unit (RTU) networking, pipeline SCADA systems
- Power Generation & Utilities: Substation automation, turbine control, grid-tied PLC networks
- Water & Wastewater: SCADA-connected pump station control, treatment plant automation
- Automotive & Heavy Manufacturing: Production line PLC-to-MES data exchange, quality control systems
- Pharmaceutical & Food Processing: FDA 21 CFR Part 11 compliant network architectures, batch control systems
- Building Automation: BMS integration via Modbus TCP gateway configurations
Engineering Advantages
- Deterministic Modbus TCP/IP: Supports up to 64 simultaneous client/server connections for high-density I/O polling without network contention
- Embedded Web Server: Built-in HTTP server enables browser-based diagnostics, module status monitoring, and I/O data visualization without additional software
- Auto-Negotiation & Auto-MDIX: Eliminates cabling errors in field installations; compatible with both straight-through and crossover Ethernet cables
- SNMP v1 Support: Integrates with enterprise network management systems (NMS) for fault monitoring and trap generation
- BOOTP/DHCP IP Assignment: Simplifies commissioning in managed network environments; static IP also supported
- Hot-Standby Compatible: Supports Quantum Hot Standby (HSB) redundancy architectures for SIL-rated applications
- Unity Pro / Control Expert Native: Full configuration and diagnostics within Schneider’s standard IEC 61131-3 engineering environment
System Architecture & Signal Flow
The 140NOE77111 occupies a standard Modicon Quantum backplane slot and communicates with the CPU (e.g., 140CPU65160, 140CPU67160) via the local bus at backplane speed. On the network side, the module acts as both a Modbus TCP server (responding to SCADA/HMI polling) and a Modbus TCP client (initiating peer-to-peer PLC messaging). Data flow:
Field I/O → Quantum Backplane → 140NOE77111 → Ethernet Switch → SCADA / HMI / MES / Peer PLCs
The embedded web server runs concurrently on port 80, providing live register data and module health without consuming Modbus TCP connection slots. SNMP traps are issued asynchronously on link-state changes or module faults.
Sourcing & Quality Verification
- OEM Traceability: All units sourced through verified industrial distribution channels with documented supply chain records
- Pre-shipment Inspection: Each module undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on check before dispatch
- Packaging Integrity: Shipped in ESD-safe anti-static packaging with foam cushioning; original OEM packaging preserved where available
- Warranty: 12-month replacement warranty against manufacturing defects; DOA policy within 7 days of receipt
- Counterfeit Prevention: Konmask.com does not source from unauthorized grey-market channels; all units include verifiable manufacturer markings and revision labels
Procurement Process
- Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691 for availability and lead time confirmation
- Quotation: Receive a formal quotation with unit price, quantity, lead time, and shipping terms (EXW / FOB Shenzhen / DDP available)
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 24 hours
- Quality Check & Dispatch: Pre-shipment inspection completed; tracking number provided within 2–5 business days
- Delivery: DHL / FedEx / UPS express available; sea freight for bulk orders; customs documentation provided for cross-border shipments
- After-Sales: Technical support available for installation, configuration, and compatibility verification
Technical FAQ
Q: Is the 140NOE77111 compatible with Unity Pro and Control Expert?
A: Yes. The module is fully supported in both Unity Pro (legacy) and EcoStruxure Control Expert (current), including online diagnostics and firmware upgrade functions.
Q: Can this module replace the 140NOE77100 or 140NOE77101?
A: The 140NOE77111 is the current production revision and is backward-compatible with earlier NOE771xx variants in most Quantum configurations. Verify your CPU firmware version and Unity Pro project settings before substitution.
Q: Does it support EtherNet/IP (CIP)?
A: The 140NOE77111 supports EtherNet/IP in read-only (adapter) mode for integration with Rockwell-based systems. Full originator (scanner) functionality requires a dedicated EtherNet/IP module.
Q: What is the maximum cable length for the RJ45 port?
A: Standard 100BaseTX specification applies: maximum 100 m per segment using Cat5e or Cat6 UTP/STP cable.
Q: Is this module suitable for SIL 2 / SIL 3 safety applications?
A: The 140NOE77111 is not a safety-rated (SIL) module. For functional safety applications, refer to Schneider Electric’s Modicon Safety PLC range (e.g., Modicon M580 Safety or Preventa).
Q: Can I order a single unit or is there a minimum order quantity?
A: Konmask.com supplies single units and bulk orders. No minimum order quantity applies for standard stock items.
