Bently Nevada 330910-00-13-10-02-00 – NSv Non-Contact Proximity Probe | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for continuous shaft vibration and position monitoring in rotating machinery. Deployed across power generation, oil & gas, petrochemical, and heavy industrial sectors, the 3300 XL system architecture delivers the measurement accuracy and reliability demanded by API 670 machinery protection standards.
Product Positioning

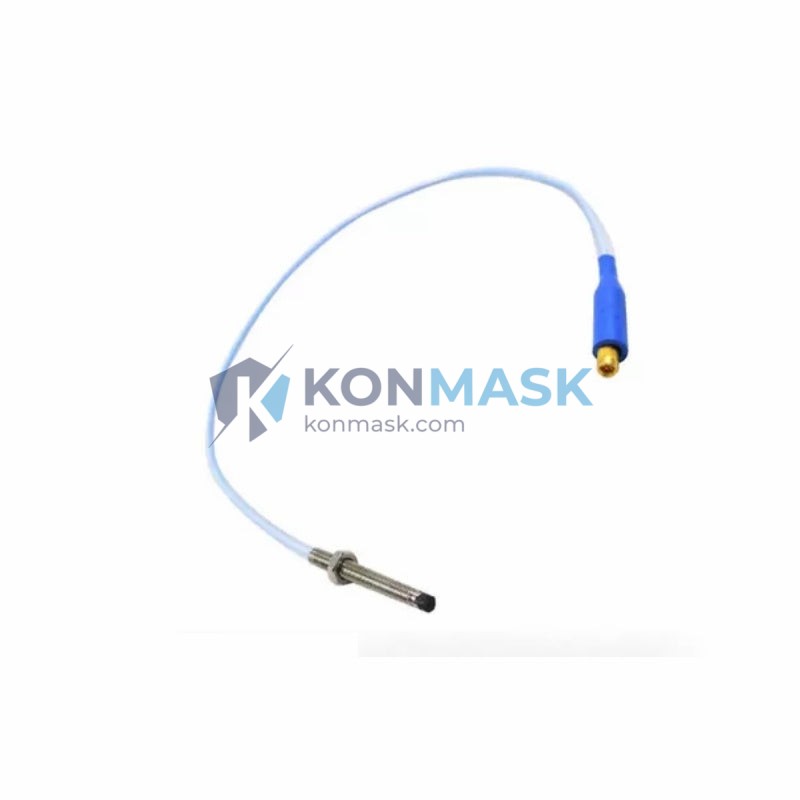

The 330910-00-13-10-02-00 is an NSv (Non-contacting, Shaft-voltage-immune) eddy-current proximity probe engineered for direct integration into 3300 XL monitoring systems. It provides precise radial vibration, axial position, and differential expansion measurements on critical rotating assets including steam turbines, gas turbines, compressors, and pumps. This probe is the OEM-specified sensing element for applications requiring immunity to shaft voltage interference and high-temperature stability.
Complete Technical Specifications
| Part Number | 330910-00-13-10-02-00 |
| Series | 3300 XL NSv Proximity Probe System |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Probe Type | Eddy-Current, Non-Contacting |
| Tip Diameter | 8 mm (standard) |
| Cable Length | 1.0 m (integral armored cable) |
| Thread Size | M10 × 1.0 |
| Linear Range | 0.25 mm – 2.25 mm (10 mil – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35°C to +177°C (–31°F to +351°F) |
| Target Material | AISI 4140 steel (or equivalent ferromagnetic) |
| Connector | Integral coaxial, compatible with 3300 XL extension cable |
| Approvals | CE, ATEX, IECEx (consult datasheet for zone ratings) |
| Compatible Driver | 3300 XL 8mm Proximitor® Sensor |
| Weight | Approx. 120 g |
| Country of Origin | USA |
Proven Application Environments
- Steam turbine radial bearing vibration monitoring
- Gas turbine shaft position and differential expansion measurement
- Centrifugal compressor rotor dynamics surveillance
- Boiler feed pump and large motor shaft orbit analysis
- API 670-compliant machinery protection systems
- High-temperature process environments up to 177°C
- Environments with elevated shaft voltage (NSv immunity)
Engineering Advantages
- NSv Technology: Shaft-voltage-immune design eliminates false readings caused by electrostatic discharge or stray shaft currents common in large turbomachinery.
- Extended Temperature Range: Rated to 177°C continuous, suitable for hot-section turbine bearing pedestals without derating.
- OEM System Compatibility: Factory-calibrated for direct plug-and-play replacement within existing 3300 XL Proximitor® driver infrastructure — no recalibration required.
- Armored Cable Construction: Integral stainless-steel armored cable resists mechanical damage, oil, and chemical exposure in harsh plant environments.
- API 670 Compliance: Meets the measurement accuracy and reliability requirements of the international standard for machinery protection instrumentation.
- Long Service Life: Non-contacting measurement principle eliminates mechanical wear, delivering decades of reliable service with minimal maintenance.
System Architecture & Signal Flow
The 330910-00-13-10-02-00 probe operates as the sensing element within the Bently Nevada 3300 XL system architecture:
- Probe (330910-00-13-10-02-00) — Generates eddy-current field; outputs raw impedance signal via integral coaxial cable.
- Extension Cable (330130 series) — Transmits signal from probe tip to Proximitor® driver; total system cable length must match driver calibration.
- Proximitor® Sensor / Driver (3300 XL 8mm) — Conditions signal; outputs –24 VDC bias with superimposed AC vibration signal (200 mV/mil scale factor).
- Monitor Module (3500/40M or equivalent) — Processes conditioned signal; provides alarm, trip, and 4–20 mA / Modbus outputs to DCS/PLC.
Note: Total probe + extension cable length must be specified at time of order to ensure system calibration integrity.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM surplus channels.
- Each probe inspected for physical integrity, connector condition, and cable continuity prior to shipment.
- Original manufacturer documentation and traceability records provided upon request.
- Konmask.com specializes in industrial automation components for critical infrastructure — we do not supply counterfeit or grey-market parts.
- Certificate of Conformance (CoC) available for qualifying orders.
Procurement Process
- Confirm Part Number: Verify 330910-00-13-10-02-00 against your system BOM and Bently Nevada documentation.
- Specify Quantity & Urgency: Contact us for volume pricing and lead-time confirmation.
- Request Documentation: Datasheet, CoC, or test records available on request before purchase.
- Place Order: Secure checkout via Konmask.com; international shipping available with full customs documentation.
- Receive & Install: Units shipped with protective packaging; installation per Bently Nevada TDI-8478 guidelines.
Technical FAQ
Q: Is the 330910-00-13-10-02-00 compatible with older 3300 series (non-XL) drivers?
A: No. The NSv probe is calibrated specifically for the 3300 XL Proximitor® driver. Use with legacy 3300 drivers requires re-evaluation by a Bently Nevada-certified engineer.
Q: What does the NSv designation mean?
A: NSv stands for Non-contacting, Shaft-voltage-immune. The probe incorporates design features that reject shaft-generated voltages, preventing false vibration readings in machines with grounding issues or variable-frequency drives.
Q: Can this probe be used on non-ferromagnetic targets (e.g., titanium or aluminum shafts)?
A: Standard calibration is for AISI 4140 steel. Non-ferromagnetic or non-standard target materials require a custom calibration factor — contact our technical team before ordering.
Q: What is the total system cable length limit?
A: The 3300 XL system supports total cable lengths of 0.5 m, 1.0 m, 3.0 m, 5.0 m, and 9.0 m. The probe integral cable (1.0 m for this part number) plus extension cable must equal the driver-calibrated total length.
Q: Do you offer expedited shipping for critical plant shutdowns?
A: Yes. Contact support@konmask.com or call +0086 19859288691 to discuss emergency procurement options.
