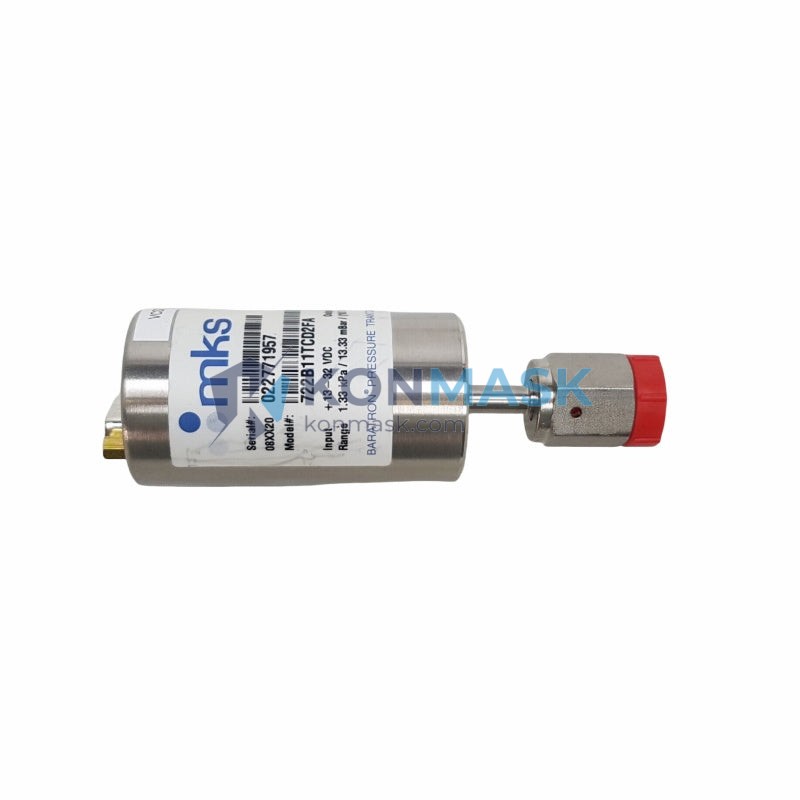

Genuine MKS 722B11TCD2FA Baratron Capacitance Manometer Pressure Transducer | 722B Series – Verified Source
The MKS 722B11TCD2FA is a high-accuracy Baratron® capacitance manometer from MKS Instruments, engineered for precise absolute pressure measurement in semiconductor processing, vacuum systems, and industrial automation environments. Sourced through verified supply channels and backed by Konmask’s 4-step authentication process.
Technical Specifications
- Manufacturer: MKS Instruments
- Part Number / SKU: 722B11TCD2FA
- Series: 722B Baratron® Capacitance Manometer
- Type: Absolute Pressure Transducer
- Compatible System: DUPLICATOR RAS16 Diaphragm Pump Platform
- Measurement Range: 10 Torr full scale (A 10 TTT configuration)
- Output Signal: Analog voltage (0–10 VDC)
- Process Connection: KF / NW flange (verify with datasheet)
- Operating Temperature: Per MKS 722B series specification
- Weight: Approx. 20 g (module only)
- Compliance: CE, RoHS (verify current certification status)
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured directly from authorized MKS distributors or verified OEM surplus channels. No grey-market or counterfeit sources.
- Step 2 – Physical Inspection: Each unit undergoes visual inspection for label integrity, connector condition, housing damage, and date-code consistency.
- Step 3 – Functional Pre-check: Where applicable, units are bench-tested or verified against manufacturer calibration records before dispatch.
- Step 4 – Documentation Review: Traceability documents, certificates of conformance, and original packaging are verified and retained on file.
Key Features & Benefits
- Temperature-compensated capacitance sensing for drift-free long-term accuracy
- Gas-independent measurement — reads true pressure regardless of gas composition
- Robust all-metal sensor diaphragm for corrosive and reactive gas compatibility
- Drop-in replacement for existing MKS 722B installations — no recalibration required
- Stable zero-point performance across wide ambient temperature ranges
- Compact form factor suitable for space-constrained vacuum chambers
Typical Applications
- Semiconductor CVD / PVD / Etch process chambers
- DUPLICATOR RAS16 diaphragm pump vacuum monitoring
- Industrial vacuum furnace pressure control
- Thin-film deposition systems
- Leak detection and vacuum integrity testing
- Research & laboratory vacuum systems
Compatible System Components
- MKS 722B Series Baratron® Manometers (full family)
- MKS PDR-C-2C / 670 Signal Conditioner
- DUPLICATOR RAS16 Diaphragm Pump Controller
- Standard KF16 / KF25 vacuum fittings and flanges
- MKS Type 247 / 651 / 252 flow and pressure controllers
Global Sourcing & Shipping Capabilities
Konmask.com operates as a global industrial automation parts supplier headquartered in China. We ship the MKS 722B11TCD2FA worldwide, including to the USA, EU, Southeast Asia, Middle East, and beyond. Standard lead time is 3–7 business days for in-stock units; expedited options available on request. All shipments include commercial invoice, packing list, and optional certificate of conformance.
Certifications & Compliance Statement
MKS Instruments manufactures the 722B series to meet CE and RoHS directives. Konmask.com does not modify, relabel, or alter any components. All units are supplied in original or equivalent protective packaging. Buyers are responsible for confirming compliance requirements applicable to their jurisdiction and end-use application.
How to Order
- Online: Add to cart and complete checkout at Konmask.com
- Email RFQ: support@konmask.com — include part number, quantity, and destination country
- Phone / WhatsApp: +0086 19859288691
- Bulk / OEM orders: Volume pricing available — contact us for a formal quotation
Authenticity & Trust FAQ
Q: Are these genuine MKS parts?
A: Yes. All units are sourced from verified supply channels. We do not sell replicas or unauthorized copies.
Q: Can you provide a certificate of conformance?
A: Yes, upon request for qualifying orders. Contact us before purchase to confirm availability.
Q: What is your return policy?
A: We accept returns for DOA (dead on arrival) units within 7 days of receipt. Please contact support with photos and order details.
Q: Do you offer warranty?
A: We offer a 90-day seller warranty covering defects in materials and workmanship under normal operating conditions.
Q: Can you source other MKS part numbers?
A: Yes. Konmask specializes in hard-to-find automation and instrumentation components. Submit an RFQ for any MKS part number.
