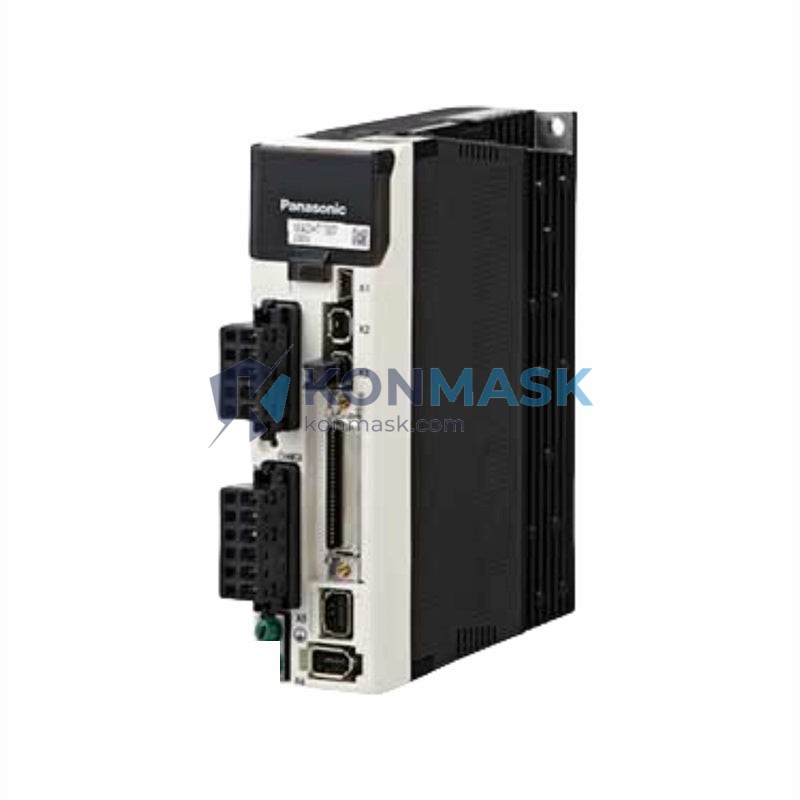

Panasonic MADDT1205052 AC Servo Drive | Replacement, Equivalent & Selection Guide
The Panasonic MADDT1205052 is a compact, high-performance AC servo amplifier from the MINAS A4 Series, designed for precision motion control in industrial automation. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | MADDT1205052 |
| Brand | Panasonic (Matsushita) |
| Series | MINAS A4 |
| Type | AC Servo Amplifier / Drive |
| Rated Output | 200 W |
| Input Voltage | Single-phase / Three-phase 200–240 VAC |
| Frequency | 50 / 60 Hz |
| Control Mode | Position / Velocity / Torque |
| Encoder Interface | 17-bit absolute / incremental |
| Communication | RS-232 / RS-485 (PANATERM compatible) |
| Protection Class | IP20 |
| Cooling Method | Natural convection |
| Weight | Approx. 0.6 kg |
| Condition | New / Original |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the MADDT1205052. Always verify electrical and mechanical compatibility before substitution.
| Model | Brand | Output | Compatibility Note |
|---|---|---|---|
| MADDT1205 | Panasonic | 200 W | Earlier revision; same form factor, verify firmware |
| MADDT1205003 | Panasonic | 200 W | Alternate suffix variant; confirm I/O pinout |
| MDDDT5540 | Panasonic | 750 W | Higher power; use only if load requires upgrade |
| MR-J4-20A | Mitsubishi | 200 W | Cross-brand; requires re-parameterization |
| SGDV-2R8A01A | Yaskawa (Sigma-5) | 200 W | Cross-brand; different connector layout |
| ASD-B2-0221-B | Delta | 200 W | Budget alternative; verify encoder protocol |
⚠ Konmask.com recommends using original Panasonic parts wherever possible to ensure full system compatibility and warranty coverage.
Why Choose the Original MADDT1205052
- Guaranteed compatibility with Panasonic MINAS A4 servo motors (MSMD, MQMA, MAMA series)
- Factory-tuned parameters — no re-commissioning required when replacing like-for-like
- Full PANATERM software support for parameter backup, monitoring, and auto-tuning
- Proven reliability in 24/7 industrial environments with low failure rates
- Regulatory compliance: CE, UL, RoHS certified
Typical Applications
- CNC machine tool axes (lathe, milling, grinding)
- Semiconductor and electronics assembly equipment
- Packaging and labeling machinery
- Robotic arm joint control
- Textile and printing machine drives
- Medical device positioning systems
System Compatibility
The MADDT1205052 is designed to pair with Panasonic MINAS A4 series servo motors. Verified compatible motor models include:
- MSMD022G1U / MSMD022G1S (200 W, 3000 rpm)
- MQMA022A1V (200 W, low inertia)
- MAMA022A1G (200 W, middle inertia)
It integrates with major PLC platforms including Panasonic FP series, Mitsubishi MELSEC, Siemens S7, and Omron NJ/NX via pulse-train or analog command interfaces.
Selection Guide
Use the following criteria to confirm the MADDT1205052 is the right drive for your application:
- Motor rated power: 200 W — match drive output to motor nameplate
- Supply voltage: Confirm single-phase 200–240 VAC availability at cabinet
- Control mode: Position (pulse), velocity (analog ±10 V), or torque mode required?
- Encoder type: 17-bit absolute encoder standard; confirm motor encoder spec
- Communication: RS-485 network or standalone operation?
- Environment: IP20 — suitable for enclosed control cabinets only
If your application requires higher power (≥400 W), consider the MADDDT1507 or MFDDTA390 from the same MINAS A4 family.
Quality Assurance & Sourcing
- ✅ Original & genuine Panasonic product — sourced from authorized distribution channels
- ✅ Batch traceability — date code and serial number verified before shipment
- ✅ Pre-shipment inspection — visual and functional checks performed
- ✅ Secure packaging — ESD-safe anti-static bag + foam-lined carton
- ✅ Export documentation — commercial invoice, packing list, and COO available
How to Order
- Click Add to Cart or Buy Now on this page
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing
- Provide your PO number, delivery address, and preferred shipping method at checkout
- We ship worldwide via DHL, FedEx, UPS, and EMS — typical lead time 3–7 business days
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use MADDT1205052 to replace an older MADDT1205?
A: Yes, in most cases. The MADDT1205052 is a revised version with the same power rating and form factor. Verify parameter settings after replacement using PANATERM software.
Q: Is the MADDT1205052 compatible with third-party servo motors?
A: It is optimized for Panasonic MINAS A4 motors. Use with third-party motors is possible in velocity/torque mode but requires custom encoder adaptation and is not recommended for precision positioning.
Q: What is the warranty on this product?
A: Konmask.com provides a 12-month warranty against manufacturing defects on all new original parts.
Q: Do you provide technical support for commissioning?
A: Yes. Our engineering team can assist with parameter setup, wiring diagrams, and PANATERM configuration. Contact us via email or phone.
Q: Can I return the product if it is not compatible?
A: Please contact us before purchase to confirm compatibility. Returns are accepted within 30 days for unused, unopened items in original packaging.
