Yaskawa JANCD-YCP02-E – Robot Teach Pendant | DX200 Controller Platform
Engineering Background: The Yaskawa DX200 is a high-performance multi-robot controller platform widely deployed in automotive body welding, arc welding, material handling, and assembly automation. The teach pendant is the primary human-machine interface (HMI) for programming, jogging, I/O monitoring, and alarm diagnostics on DX200-controlled Motoman robots.

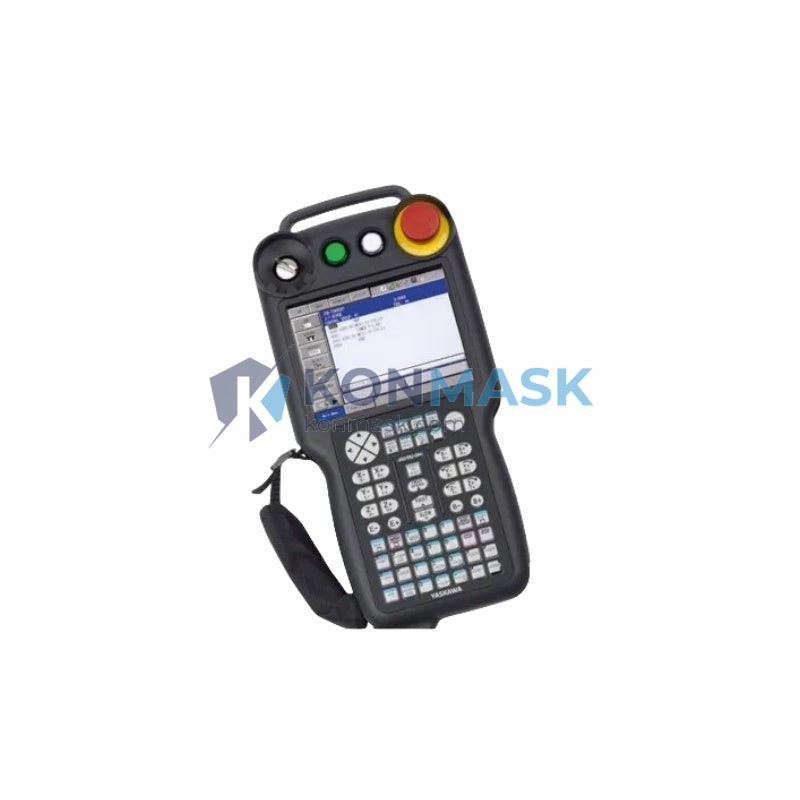

Product Positioning: The JANCD-YCP02-E (also identified as JZMQZ-TB40B, part number Q8B801-391-3-14, cable assembly JZMQZ-TB40) is the OEM teach pendant unit for the DX200 system. It provides full-function robot programming capability with a color LCD display, dedicated safety enable device (deadman switch), and ergonomic keypad layout optimized for industrial environments. Konmask.com supplies verified OEM and refurbished units with full functional testing.
Complete Technical Specifications
- Part Number: JANCD-YCP02-E
- Cross-Reference: JZMQZ-TB40B / Q8B801-391-3-14 / JZMQZ-TB40
- Compatible Controller: Yaskawa DX200
- Compatible Robots: Motoman MA, MH, MS, VA, VS, HP, PL series (DX200 platform)
- Display: Color LCD touchscreen
- Interface: Dedicated function keys, numeric keypad, axis keys, deadman switch (3-position enable)
- Communication: Proprietary DX200 pendant cable (JZMQZ-TB40)
- Safety: IEC 60204-1 compliant 3-position enable device; emergency stop button
- Weight: Approx. 300 g (pendant unit)
- Origin: Japan (OEM Yaskawa)
- Condition: OEM New / Tested Refurbished (specify at inquiry)
Proven Application Environments
- Automotive body-in-white spot welding and sealing lines
- Arc welding and laser welding cells
- Palletizing, depalletizing, and high-speed pick-and-place
- Assembly and press-tending automation
- Painting and coating booths (with appropriate IP-rated enclosure)
- Multi-robot coordinated motion systems (up to 8 robots per DX200 cluster)
Engineering Advantages
- Full DX200 Compatibility: Direct plug-and-play replacement; no firmware reconfiguration required for same-generation controllers.
- 3-Position Deadman Switch: Meets ISO 10218-1 safety requirements for collaborative and restricted-space programming.
- Intuitive INFORM III Language Support: Enables job editing, condition file management, and I/O assignment directly from the pendant.
- Robust Industrial Design: Shock-resistant housing rated for factory floor use; sealed keypad against dust and coolant splash.
- Multi-Language UI: Supports English, Japanese, and other regional language packs via DX200 system settings.
System Architecture & Signal Flow
The JANCD-YCP02-E connects to the DX200 controller via the dedicated pendant cable JZMQZ-TB40, interfacing with the YCP02 CPU board inside the controller cabinet. Signal flow: Operator Input (keypad/touchscreen) → JANCD-YCP02-E pendant CPU → JZMQZ-TB40 cable → DX200 YCP02 board → Robot motion/I/O execution. The 3-position enable signal is hardwired through the safety circuit and cannot be bypassed by software.
Sourcing & Quality Verification
- All units sourced directly from Yaskawa-authorized channels or decommissioned OEM production lines.
- Refurbished units undergo full power-on test, display verification, keypad actuation test, deadman switch continuity check, and cable integrity inspection.
- Each unit ships with a Konmask inspection report and 90-day functional warranty.
- Counterfeit risk mitigation: serial number and firmware version verified against Yaskawa OEM records prior to shipment.
Procurement Process
- Submit your DX200 controller serial number and robot model at support@konmask.com for compatibility confirmation.
- Receive a formal quotation with lead time and condition (new/refurbished) within 24 business hours.
- Place order via Konmask.com secure checkout or T/T bank transfer for volume orders.
- Unit ships with DHL/FedEx express; tracking provided within 24 hours of dispatch.
- Post-delivery technical support available via email and WhatsApp.
Technical FAQ
Q: Is JANCD-YCP02-E compatible with DX100 or FS100 controllers?
A: No. The JANCD-YCP02-E is designed exclusively for the DX200 platform. DX100 uses JZNC-YPS01-E; FS100 uses a different pendant interface.
Q: Can I use this pendant with a DX200 controller running a different robot model?
A: Yes, provided the controller is DX200 generation. The pendant is controller-bound, not robot-model-bound.
Q: What is the difference between JZMQZ-TB40B and JZMQZ-TB40?
A: JZMQZ-TB40 refers to the cable assembly; JZMQZ-TB40B is the pendant unit assembly designation. Both are included in the complete JANCD-YCP02-E kit.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty covering hardware defects. Warranty claims are processed within 5 business days.
Q: Can you supply in bulk for a production line retrofit?
A: Yes. Contact us for volume pricing and lead time on multi-unit orders.
